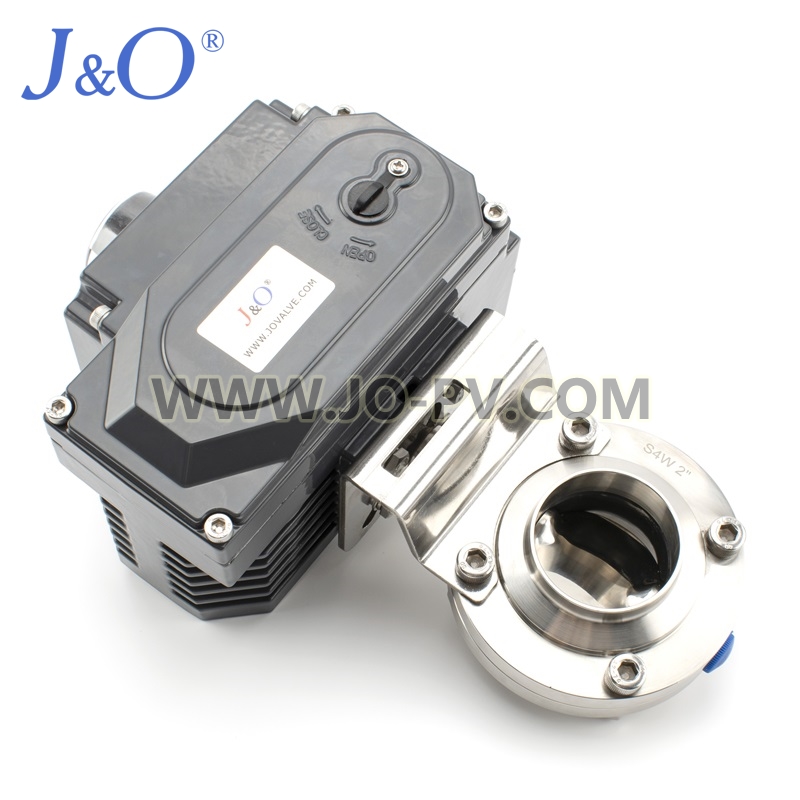

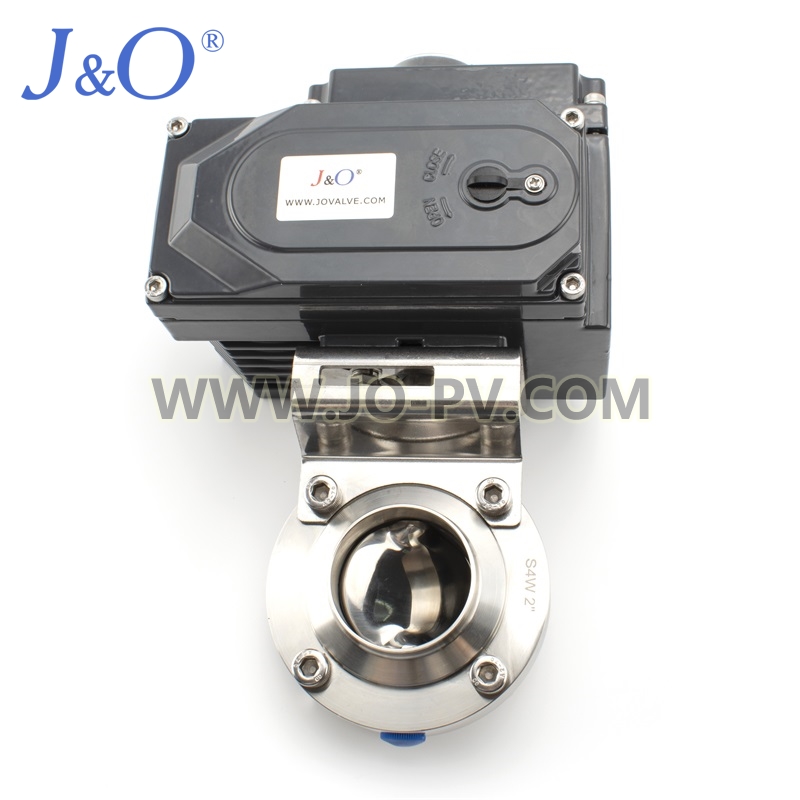

Sanitary Stainless Steel Welding Butterfly Valve With Electric Actuator
We manufacture Electrical Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Electric Butterfly Valve, Hygienic Male Thread Electric Butterfly Valve.
The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
All of the products have been 100% press tested before shipping.
It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Technical Data
| Product Name: | Sanitary Clamp/Thread/Weld Butterfly Valve With Pull Handle |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Clamp/Thread/Weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Electric |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Motor power: | 110/220V AC single-phase, 380/440 3-phase, 50/60hz |
Product Parameter
Product Pictures
Sanitary Stainless Steel Welding Butterfly Valve With Electric Actuator
We manufacture Electrical Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Electric Butterfly Valve, Hygienic Male Thread Electric Butterfly Valve.
The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
All of the products have been 100% press tested before shipping.
It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Technical Data
| Product Name: | Sanitary Clamp/Thread/Weld Butterfly Valve With Pull Handle |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Clamp/Thread/Weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Electric |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Motor power: | 110/220V AC single-phase, 380/440 3-phase, 50/60hz |
Product Parameter
Product Pictures
