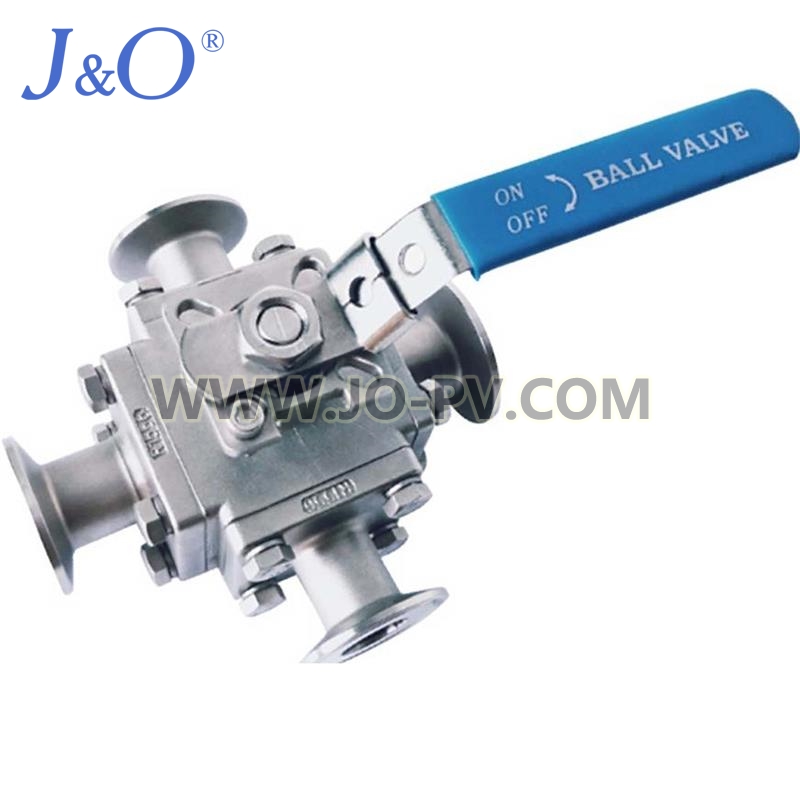

Sanitary Stainless Steel Tri Clamp 4 Way Ball Valve
Applied in food, wine, brewery, refining, cosmetics, pharmaceutical and chemicals industries, required non-retention and switch the direction of two media.
LL type four way ball valve only needs to rotate the ball 90 degree with the handle or actuator, then the flow direction of two media will switch at the same time to achieve the multi-purpose effect. It is convenient and rapid.
Technical Data
| Valve Body Material: | SS304/SS316L |
| Seal Material: | PTFE |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 180 degree C |
| Availably size: | 1"-4", DN25-DN100 |
| Availably connection: | Clamp, weld, thread |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
