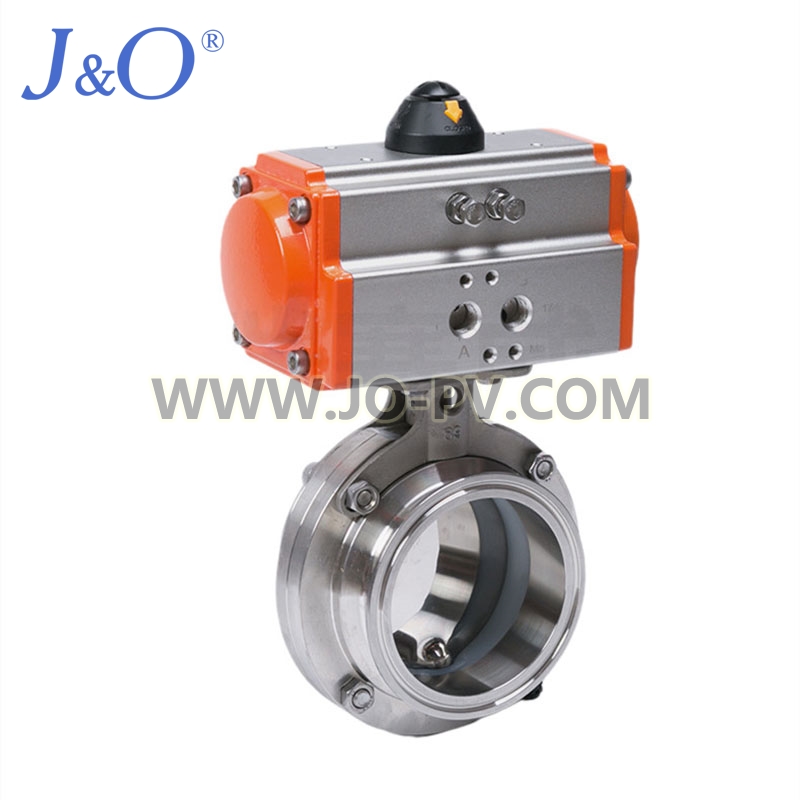

Hygienic powder butterfly valve is not only simple in structure, small in size, light in weight, low in material consumption, small in installation size, but also has small driving torque, easy and quick operation, and also has good flow adjustment function and closing sealing characteristics.
The movement of the sanitary butterfly valve valve plate is wiping, so the butterfly valve can be used for media with suspended fixed particles, and can also be used for powder and granular media according to the strength of the seal.
Technical Data
| Seal Material: | EPDM/FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Tri Clamp |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Pneumatic |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | Plastic handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
Hygienic powder butterfly valve is not only simple in structure, small in size, light in weight, low in material consumption, small in installation size, but also has small driving torque, easy and quick operation, and also has good flow adjustment function and closing sealing characteristics.
The movement of the sanitary butterfly valve valve plate is wiping, so the butterfly valve can be used for media with suspended fixed particles, and can also be used for powder and granular media according to the strength of the seal.
Technical Data
| Seal Material: | EPDM/FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Tri Clamp |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Pneumatic |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | Plastic handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
