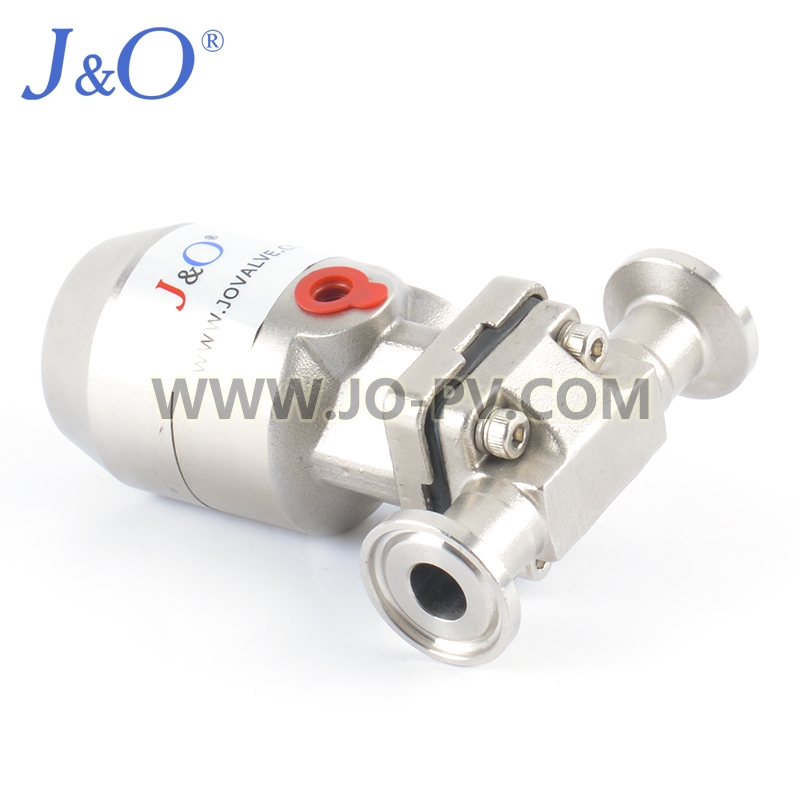

Sanitary Stainless Steel Clamped Pneumatic Diaphragm Valve With Stainless Steel Actuator
The general state is closed, the elbow diaphragm is close to the inner cavity of the valve, closing the path of the pipeline.
Toggle the handwheel or drive the actuator to drive the valve stem upward, and the spherical diaphragm bends upward, so that the valve is in a conductive state, and the purpose of cleaning and opening can be achieved. The diaphragm separates the inner cavity of the lower valve body from the inner the cavity of the upper valve cover; so that the valve stem, valve core and other parts located at the upper part of the diaphragm are not corroded by the medium, the packing sealing structure is omitted, and no medium leakage occurs. The optimized valve body design allows the cleaning fluid to be drained completely without stagnation.
Technical Data
| Valve Body Material: | SS316L |
| Seal Material: | EPDM+PTFE/ EPDM |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-4", DN25-DN100 |
| Availably connection: | Clamp, weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Pneumatic |
