J&O Fluid Control Co., Limited.

150LBS Stainless Steel 45 Degree Female Male Elbow

150LBS stainless steel pipe fittings are used for ordinary pipe for steam, air, water, oil, gas.

Brand:
J&O
Material:
SS304 / SS316
Connection:
Female
Working Pressure:
150LBS

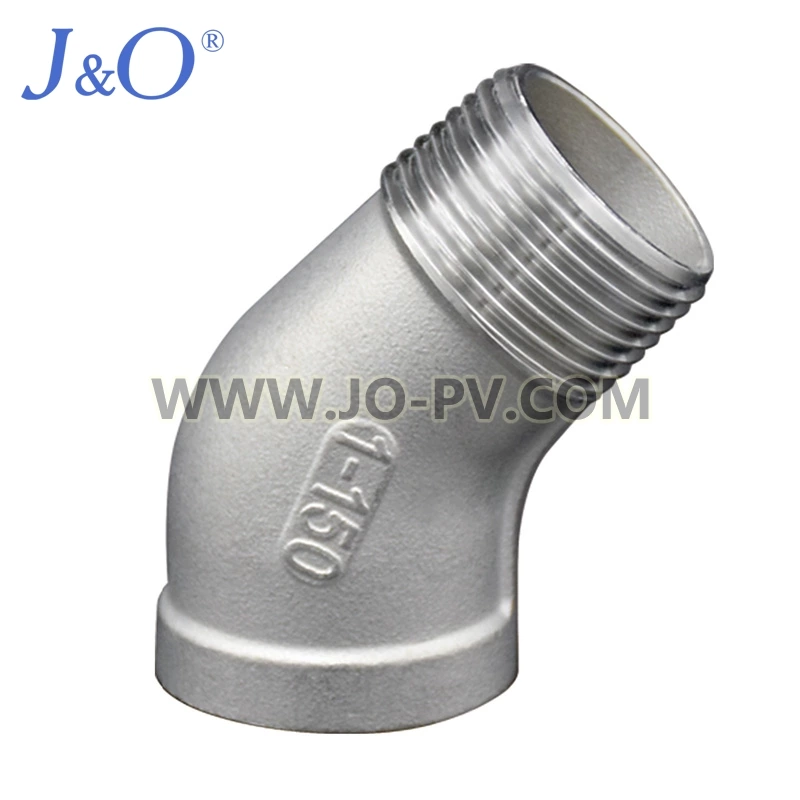

150LBS Stainless Steel Casting 45 Degree Female Male Elbow

A 150 lb stainless steel cast elbow is a fitting that attaches two pieces of pipe or tube to allow a change in direction of the piping system. 150lb cast elbows are offered in various degrees of angles. The most common angles are 45 and 90 degree elbows. Stainless steel cast elbows are manufactured by heating stainless steel to a molten/liquid state and pouring the metal into a form that creates the desired shape.

Technical Data

Material: SS304/SS316
Max working pressure: 150lbs
Availably size: 1/2" -1"
Thread Type: NPT, BSP, PT

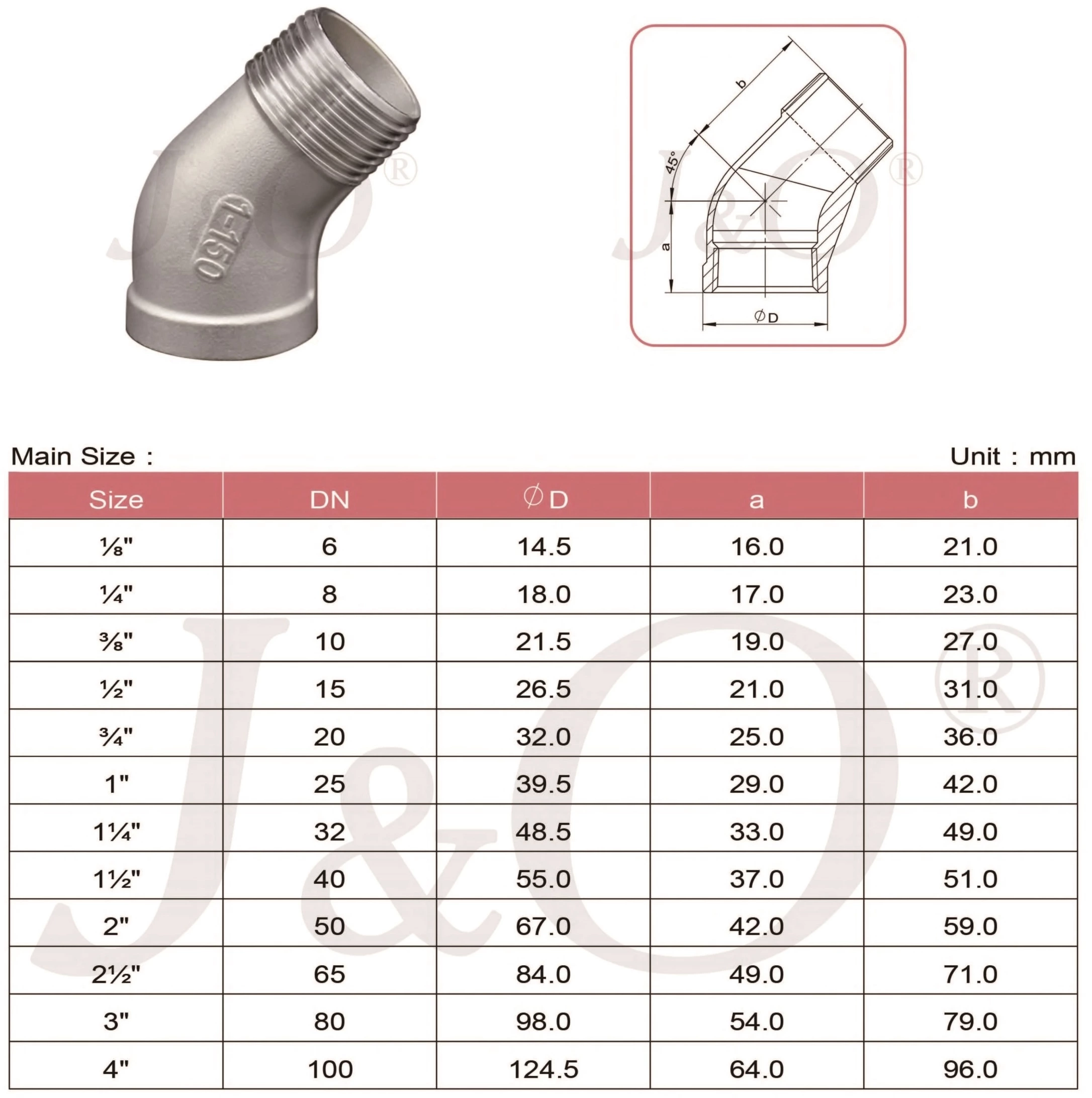

Product Parameter

150LBS Stainless Steel 45 Degree Female Male Elbow
