Instrument Valve Manifold

Instrumentation Valves and Fittings, Double ferrule tube fittings: Union, Connector, Elbow, Tee, Butt-weld/Socket-weld end Connector, plug, nipple, cap, bushings.

Application:

Instrumentation: High pressure&High Temperature; Water, Oil, Gas & Petrochemical Industries. Material: S.S304, 316, 316L, Brass.

Component: back & front ferrules, with nuts silver-plated.

Thread: NPT, BSP, BSPT, UNEF, etc.

Used for Tube O.D: 1/16"- 2".

Instrumentation Valves & Manifolds: Male/Female Thread Needle Valve, Integral Bonnet Needle Valve, Hex Needle Valve, Ball Valve, 2 Valve Manifolds, 3 Valve Manifolds, 5 Valve Manifolds.

Application:With various mounting and supporting methods, They are installed For Systems as control, isolate, measure, calibrate, equalize, drain, vent or differentiate the pressure of gases and liquids.

Material: S.S304, 316, 316L, Brass.

Component: Available in forged body or in bar stock.

Port Connection Thread: NPT, BSP, BSPT, UNEF, etc.

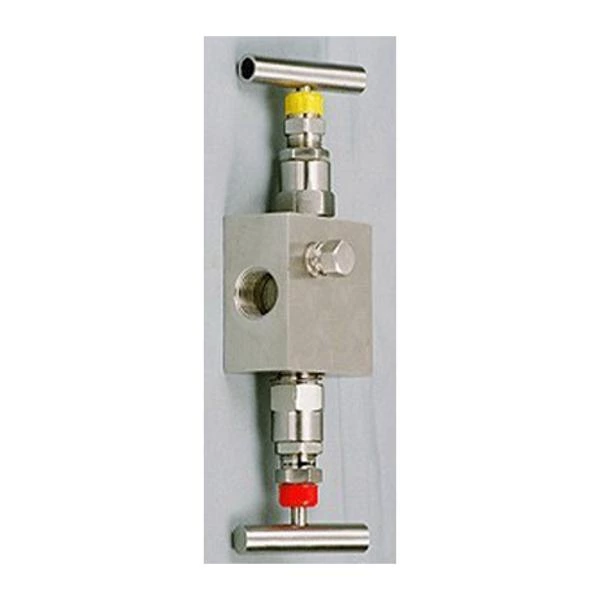

straight 2 Valve Manifolds

straight 2 Valve Manifolds

Model: JO-2VM-02

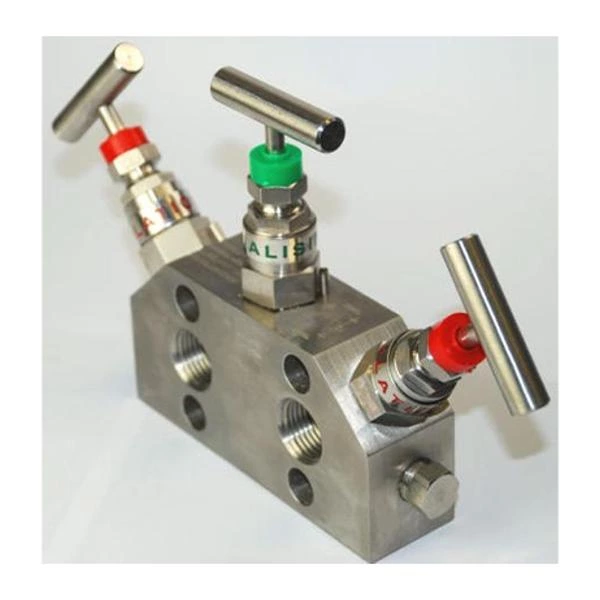

3 Valve Manifolds

3 Valve Manifolds

Model: JO-3VM-03

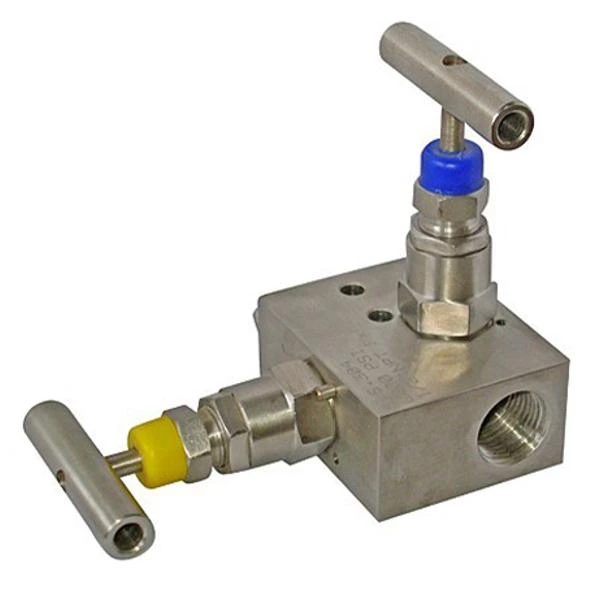

Female End 2 Valve Manifolds

Female End 2 Valve Manifolds

Model: JO-2VM-03

Flanged 3 Valve Manifolds

Flanged 3 Valve Manifolds

Model: JO-3VM-01

2 Valve Manifolds

2 Valve Manifolds

Model: JO-2VM-01

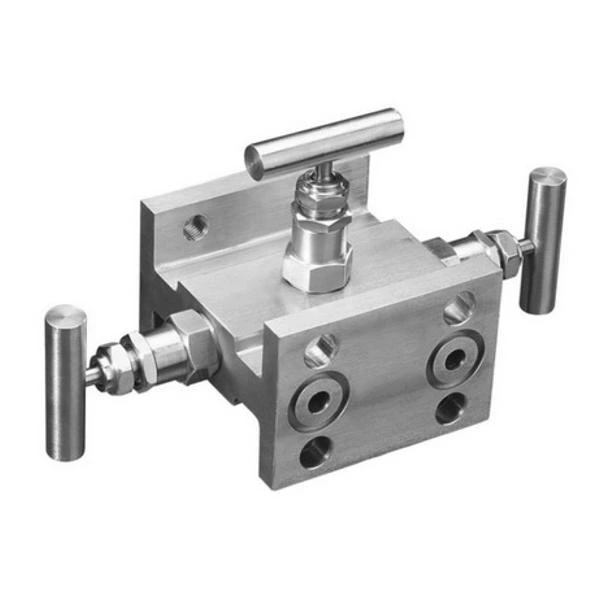

Flanged End 3 Valve Manifolds

Flanged End 3 Valve Manifolds

Model: JO-3FVM-01
