China J&O Fluid Control Co., Limited


45Degree Elbow 150Lb Pipe Fittings

SS304 / SS316
Working Pressure:

150LBS Stainless Steel Casting 45 Degree Female Elbow

A 150 lb stainless steel cast elbow is a fitting that attaches two pieces of pipe or tube to allow a change in direction of the piping system. 150lb cast elbows are offered in various degrees of angles. The most common angles are 45 and 90 degree elbows. Stainless steel cast elbows are manufactured by heating stainless steel to a molten/liquid state and pouring the metal into a form that creates the desired shape.

Technical Data

Material: SS304/SS316
Max working pressure: 150lbs
Availably size: 1/8"-4"
Thread Type: NPT, BSP, PT

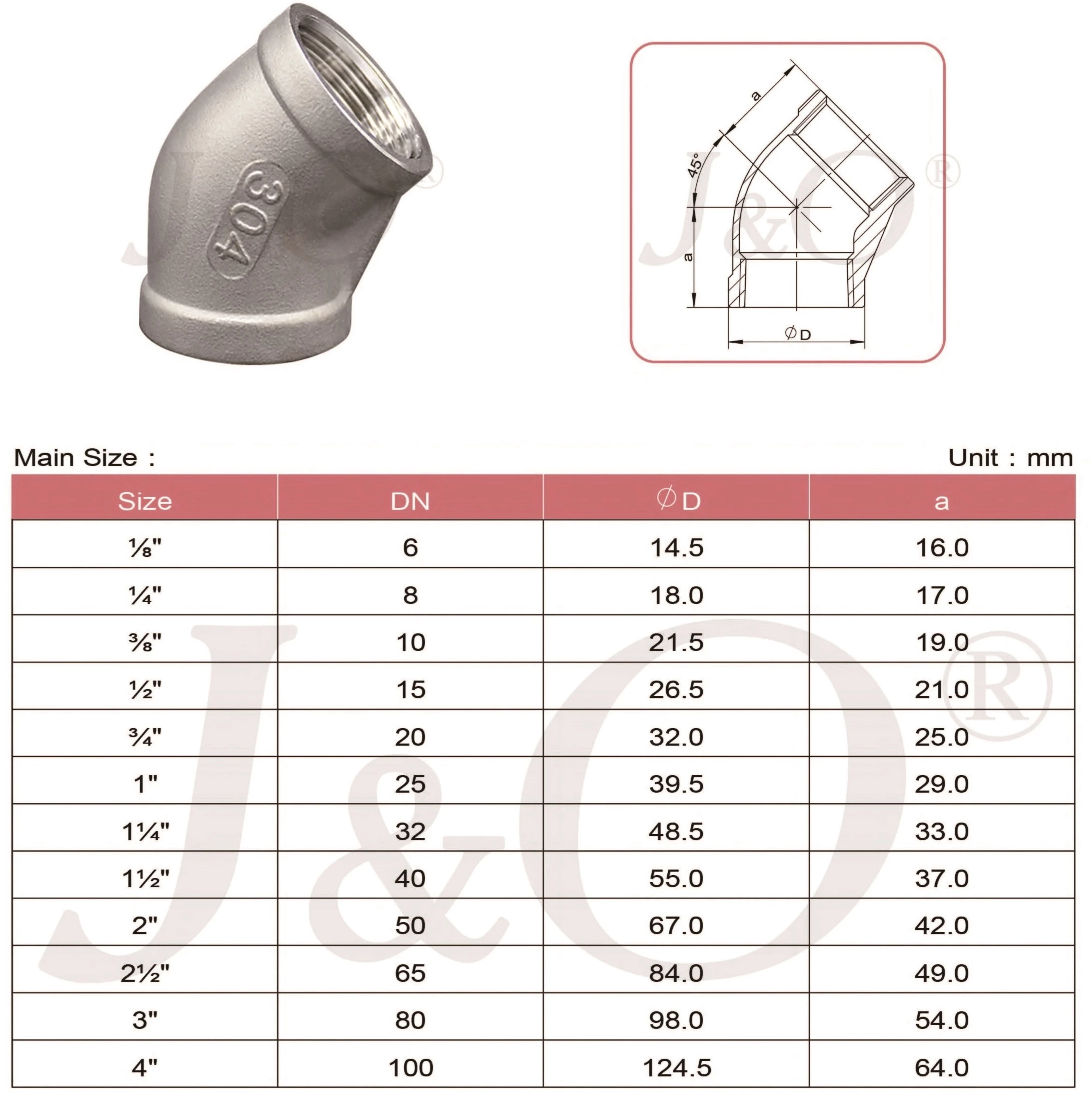

Product Parameter

45Degree Elbow 150Lb Pipe Fittings

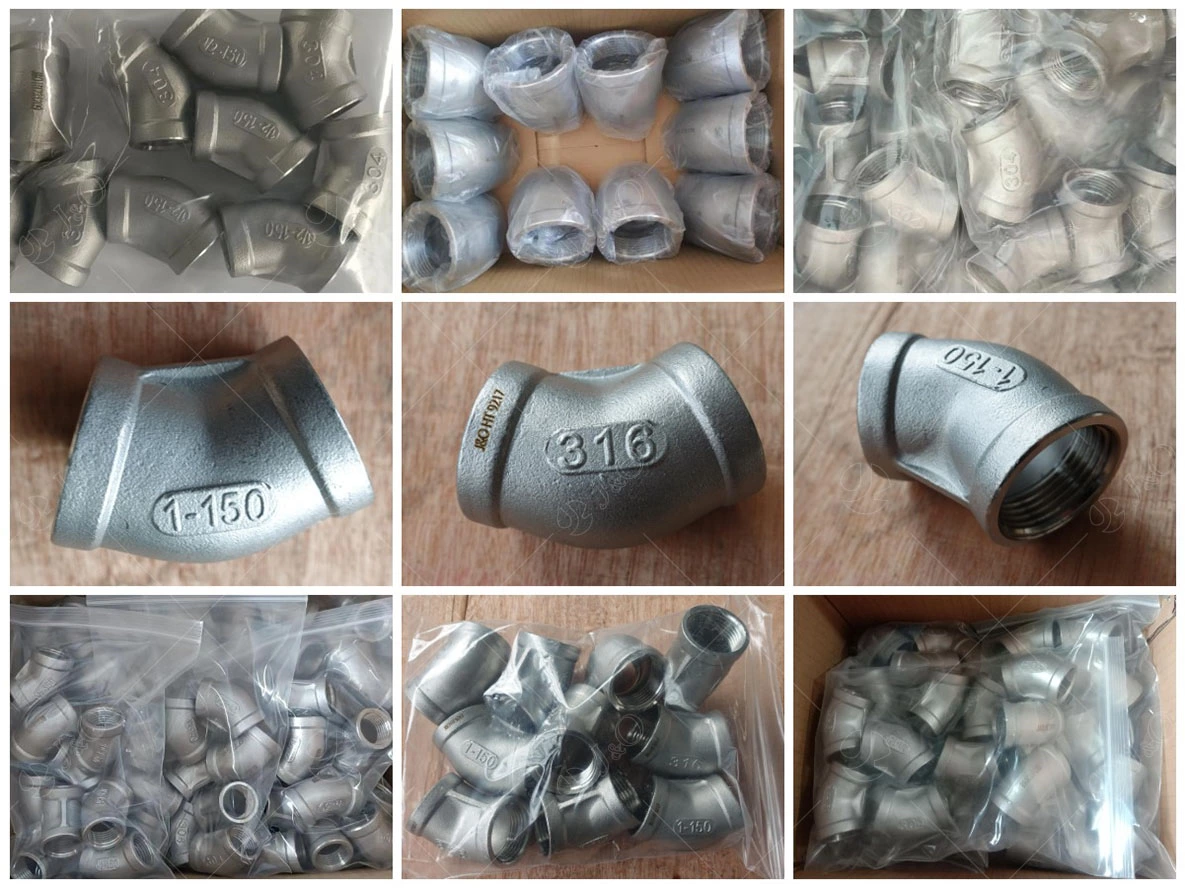

Product Pictures

45Degree Elbow 150Lb Pipe Fittings
