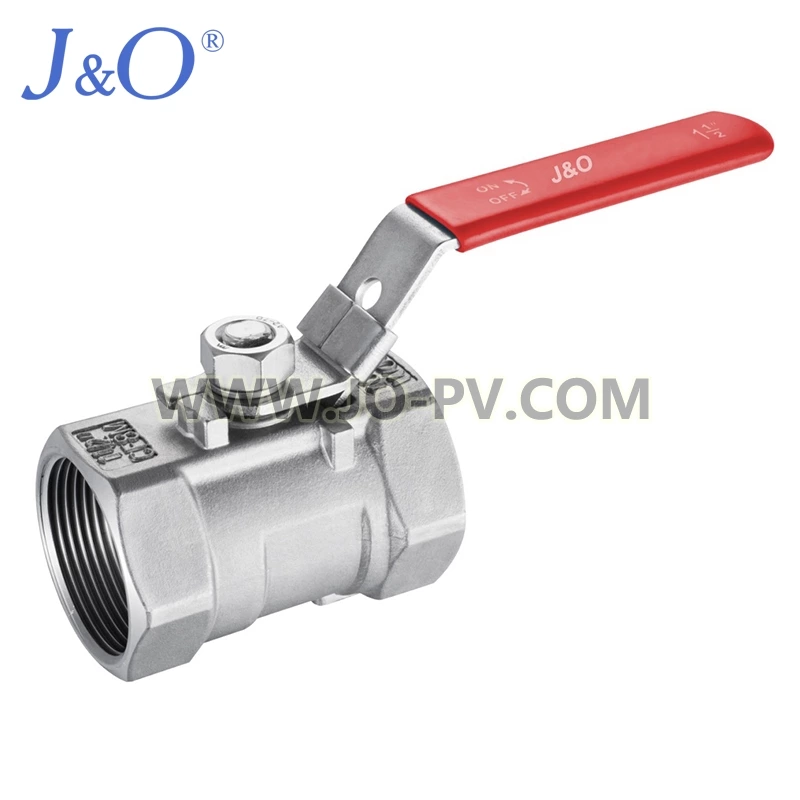

1PCS Ball Valve

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it.

Model:
JOV-BGM2203
Brand:
J&O
Material:
SS304 or SS316
Connection:
Thread
Gasket:
PTFE
Working Temperature:
-20℃ ~ 180℃
Working Pressure:
1000WOG(PN63)
Operation:
Manual
Download Catalog:
J&O INDUSTRIAL BALL VALVES.pdf
Enquiry
1PCS Ball Valve

Stainless Steel 1PC Female Ball Valve

  • One piece screwed end ball valve (1PC threaded ball valve) is used for cutting off, distributing and changing the flowing direction of medium. It is not easily corroded by medium, which can be widely used in water, oil, natural gas, weak corrosive liquid, etc.

  • One piece screwed end ball valve is easy to open and close. It features in small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance.

Technical Data

Product Name: Industrial 1PC Ball Valve
Material: SS304 or SS316
Seal Material: PTFE
Working Pressure: 1000WOG(PN63)
Working Temperature: -20℃ ~ 180℃
Design Standard: ASME B16.34
Testing Standard: API 598 / SP-110
Thread Type: ASME B1.20.1(NPT), BSP BSPT, DIN 259 / DIN 2999, BS 21, ISO 288-1, ISO 7-1
Packing Details: within carton box or plywood case

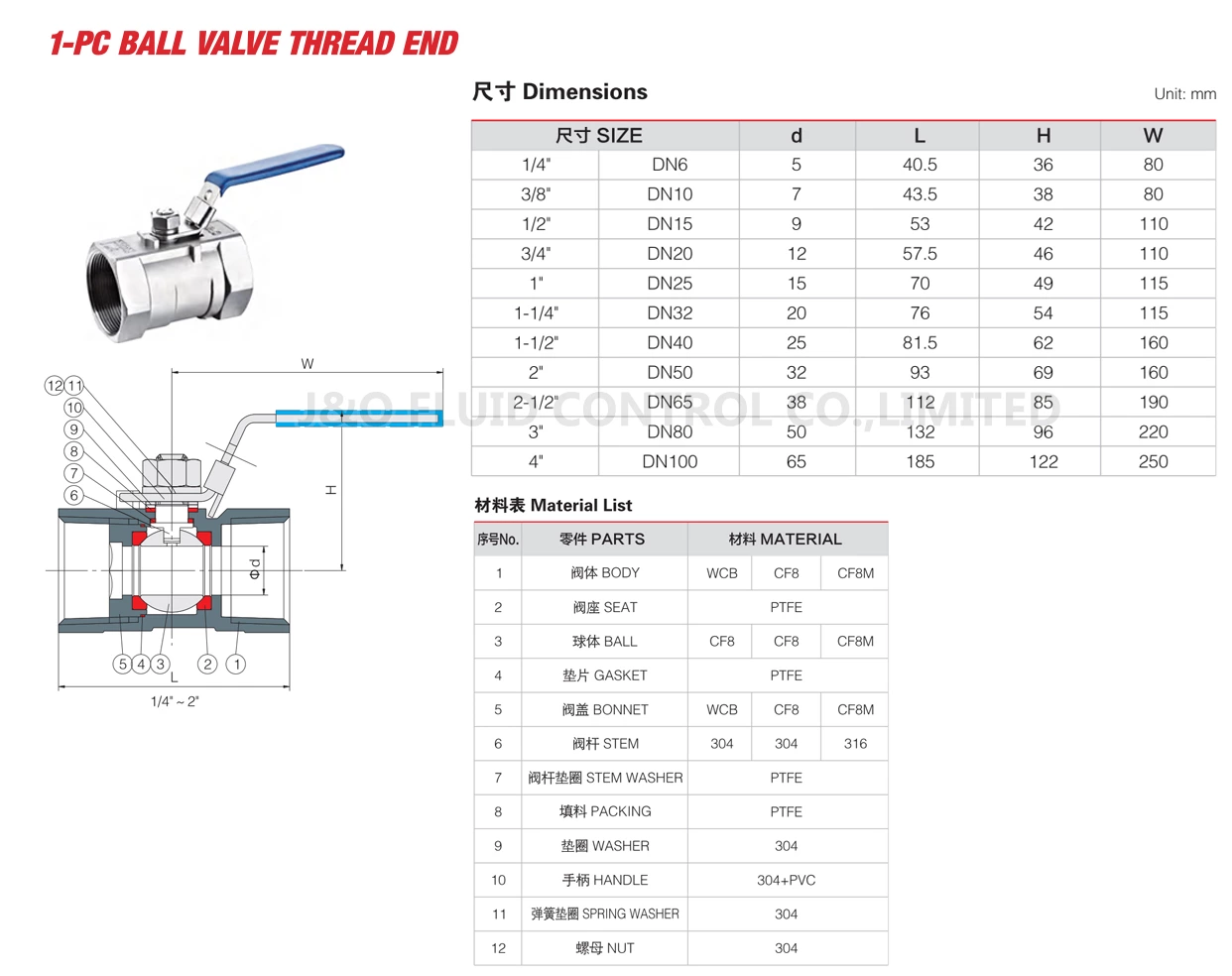

Product Parameter

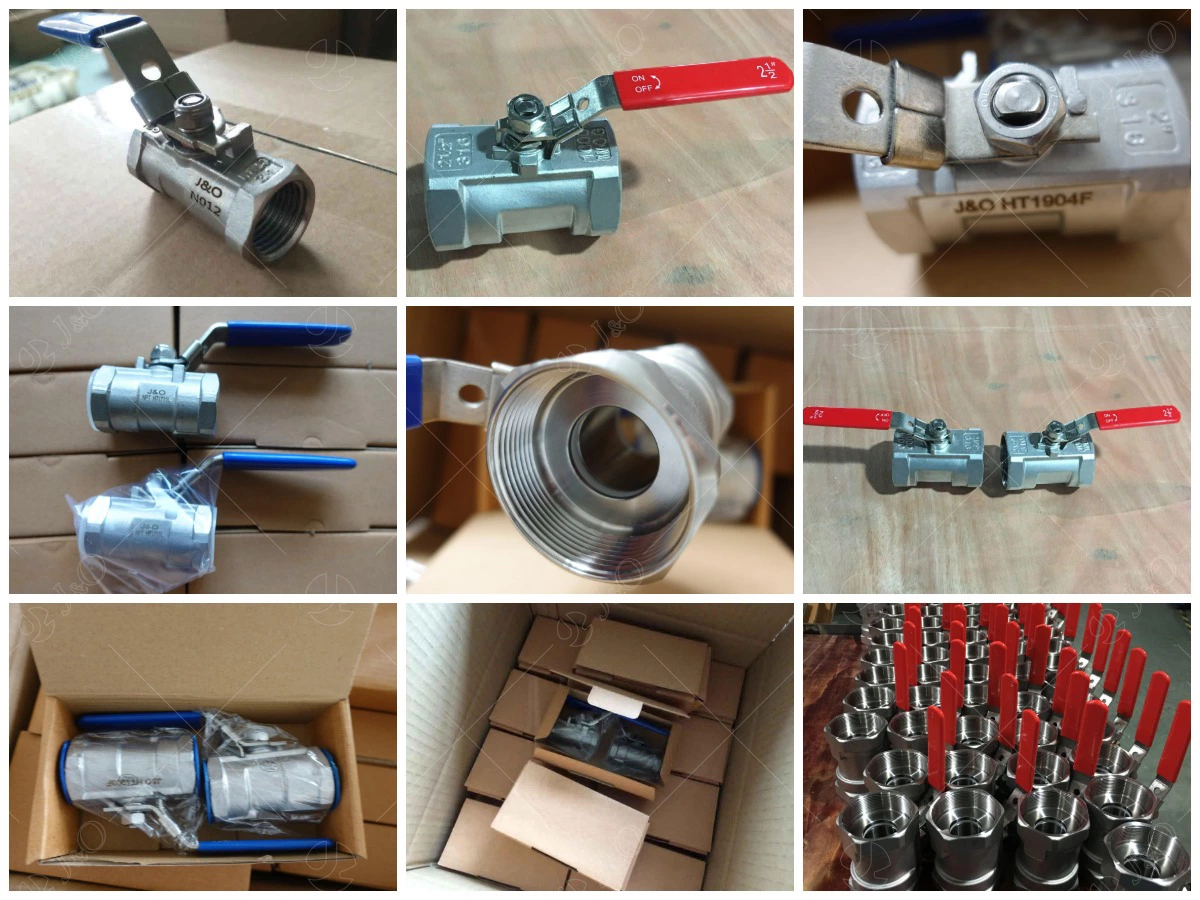

Product Pictures
