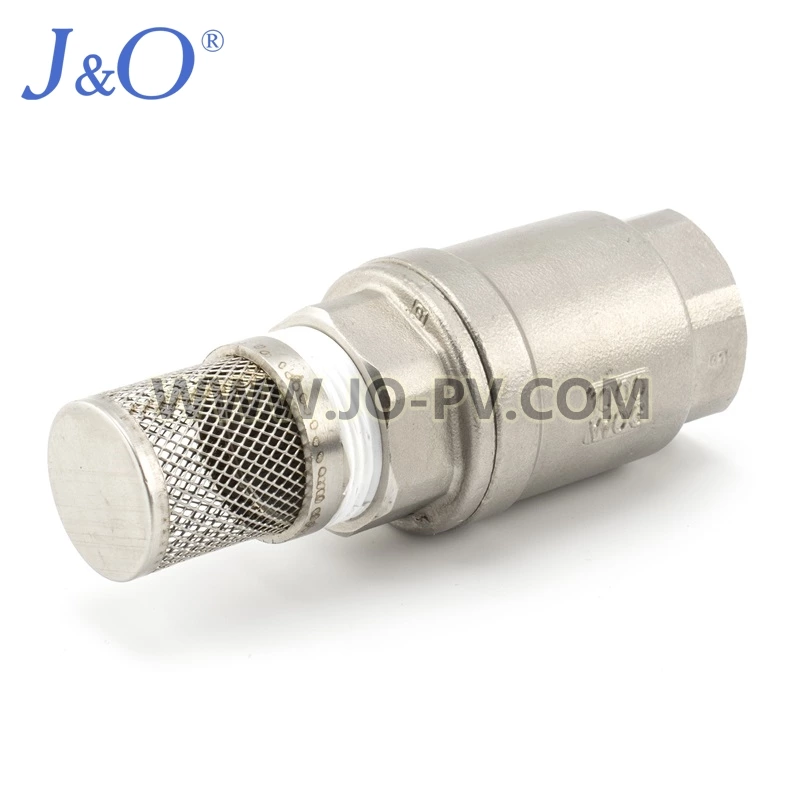

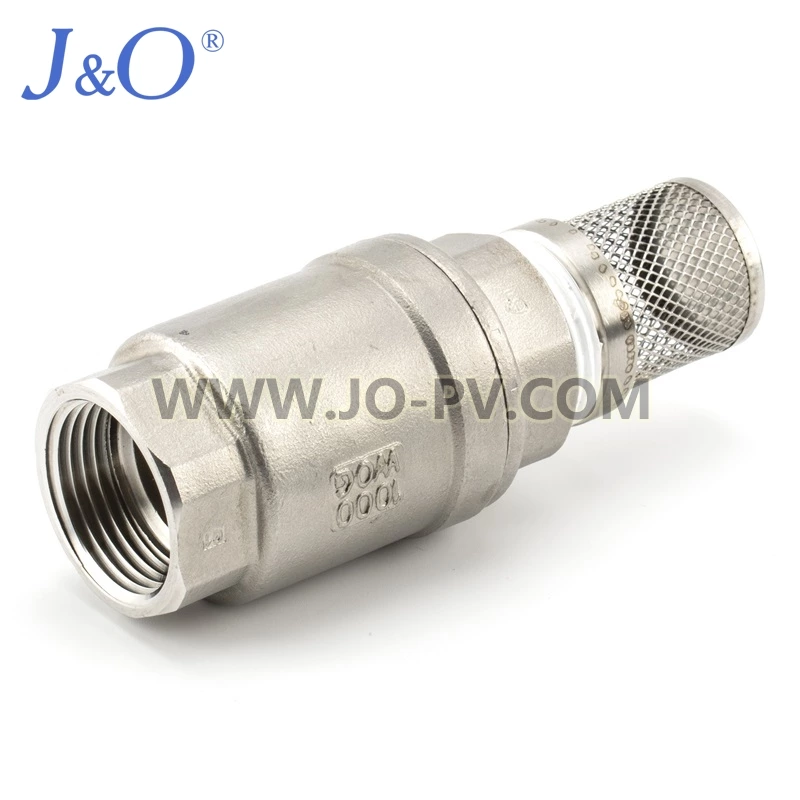

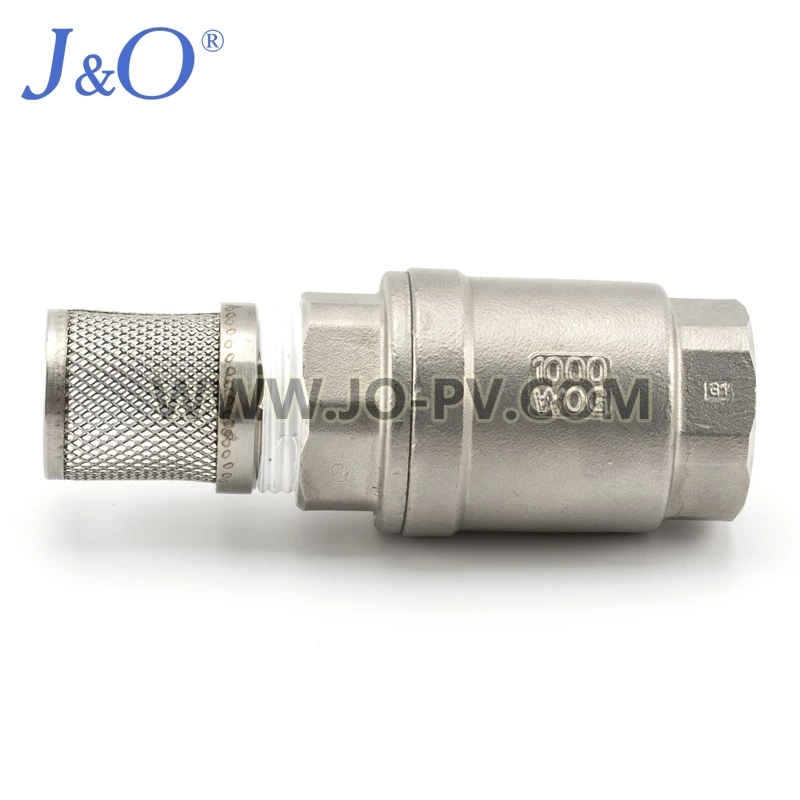

Stainless Steel Foot Valve

The foot valves are ideal for use on corrosive fluids that need to be kept free of material contamination.

Brand:
J&O
Material:
CF8 or CF8M
Connection:
Female Thread
Working Temperature:
-20℃ ~ 425℃
Working Pressure:
1000WOG(PN63)
Download Catalog:
J&O INDUSTRIAL CHECK VALVE.pdf
Enquiry
Stainless Steel Foot Valve
Stainless Steel Foot Valve Stainless Steel Foot Valve Stainless Steel Foot Valve Stainless Steel Foot Valve

Industrial Female Stainless Steel Foot Valve

The Stainless Steel Foot Valve and Strainer is a spring loaded non return valve, which has the additional benefit of ensuring that the fuel being drawn is free from any large particles that could damage the pumping system. The foot valves are ideal for use on corrosive fluids that need to be kept free of material contamination.

Technical Data

Body Material: WCB,CF8,CF8M
Disc Material: CF8,CF8M
Spring 304,316
Bonnet Material: WCB,CF8,CF8M
Flow: Uni-Dirctional
Temp Range: -20 to 180°C
Pressure Rating: 1000 PSI
Suitable Media: Water – Air - Fuel - Etc
