Hygienic DIN11864-3 Aseptic Liner Clamp

DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.

Brand:
J&O
Material:
SS316L
Gasket:
O RING
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Enquiry
Hygienic DIN11864-3 Aseptic Liner Clamp
Hygienic DIN11864-3 Aseptic Liner Clamp Hygienic DIN11864-3 Aseptic Liner Clamp Hygienic DIN11864-3 Aseptic Liner Clamp Hygienic DIN11864-3 Aseptic Liner Clamp

DIN 11864-3 Aseptic Liner Clamp

  • This Tri clamp connection couplings set fully follows the regulation in DIN 11864-3 standard. Material needs to be 316L to meet aseptic requirement of food, chemical and pharmaceutical industries.
  • It is available in virtually all sizes, standards and configurations and it means you can optimize conditions inside your process whilst you are maintaining security on the outside according to different requirements. In addition to the quick connect we offer sterile unions threaded connections  and sterile flanged connections for maximum security. The design incorporates use of a standard dimension o-ring which gives flexibility of material choice.

Technical Data

Material: SS316L
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: DN11-DN100
Application: For Aseptic applications in chemical and pharmaceutical industry.

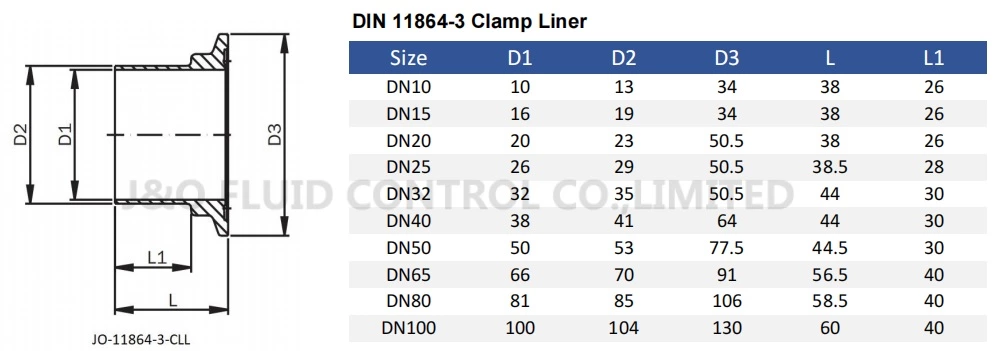

Product Parameter
