J&O Fluid Control Co., Limited.

Sanitary Stainless Steel Aseptic DIN11864-1 Union

DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.

Brand:
J&O
Material:
SS316L
Connection:
Weld
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar

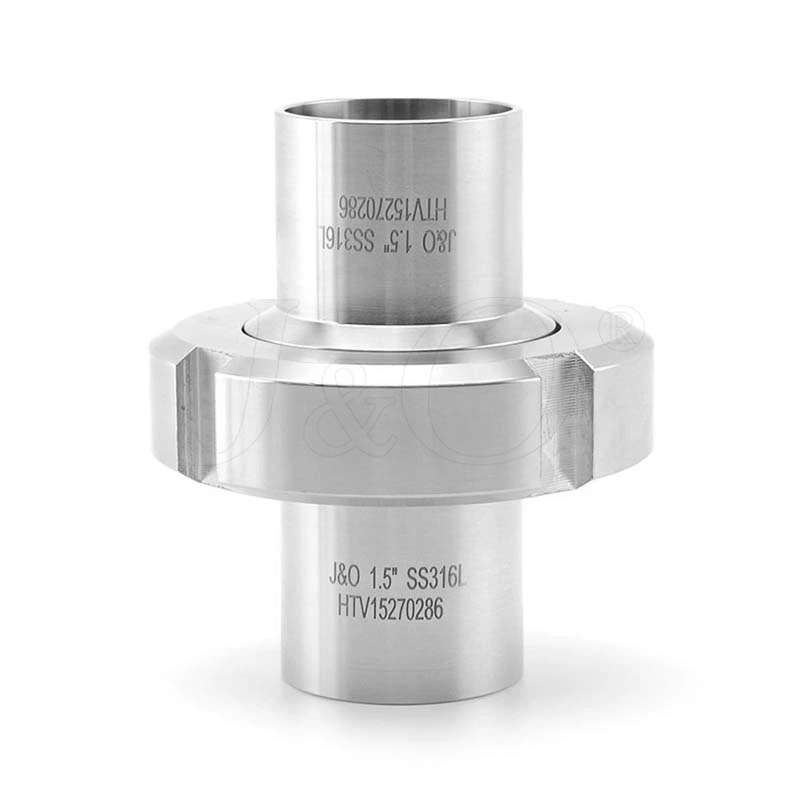

DIN 11864-1 Aseptic Union

  • DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.
  • Available with optional lengths to suit Orbital and Manual Welding, these unions have been designed to match tube and pipe specifications in DIN 11850; ISO 2037, ASME BPE 2002 and BS 4825 Part 1 and also ISO 1127 for schedule pipe.

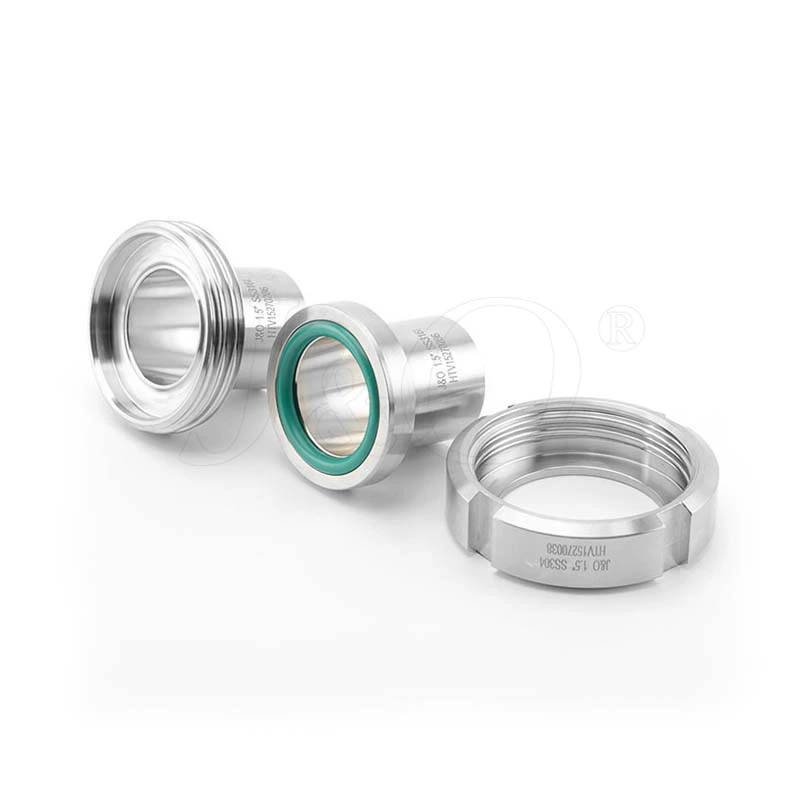

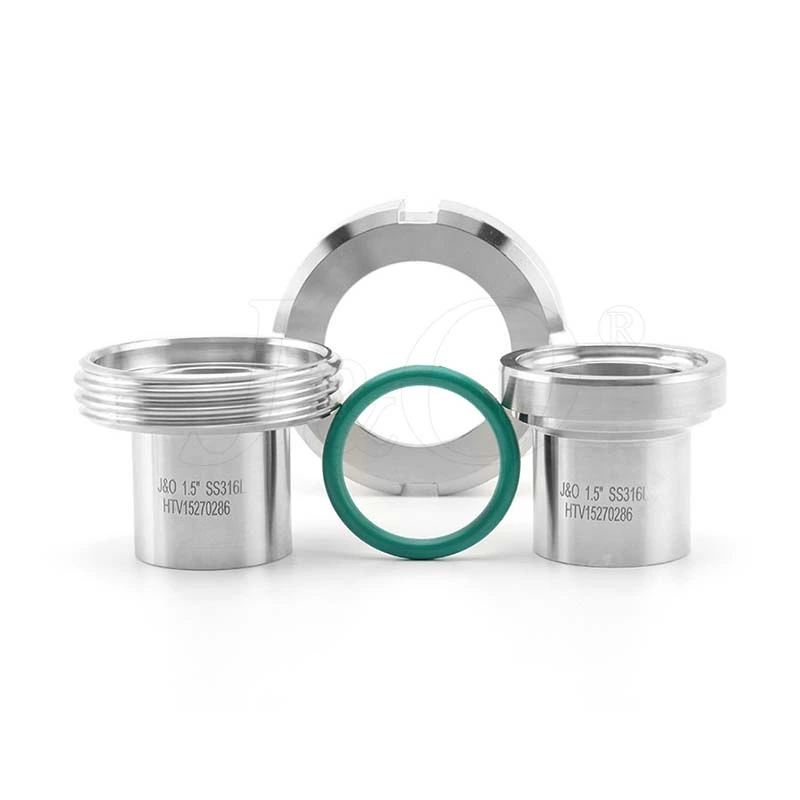

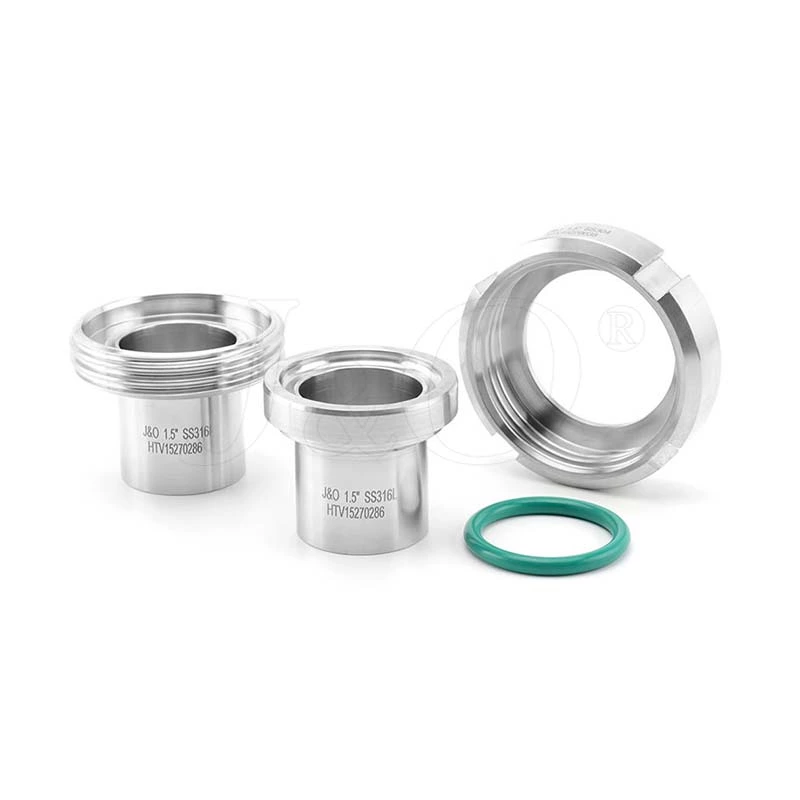

  • DIN11864-1 union consists of four parts: Nut, Male, Liner and Gasket.

Technical Data

Material: SS316L
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: DN11-DN100
Application: For Aseptic applications in chemical and pharmaceutical industry.

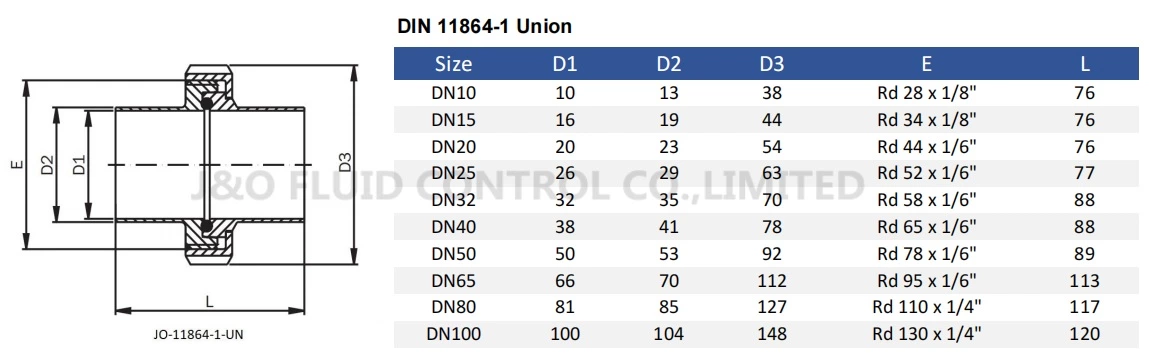

Product Parameter

Sanitary Stainless Steel Aseptic DIN11864-1 Union
