Sanitary Stainless Steel Aseptic DIN11864-2 Liner Flange

DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.

Brand:
J&O
Material:
SS316L
Connection:
Flange-Weld
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Enquiry

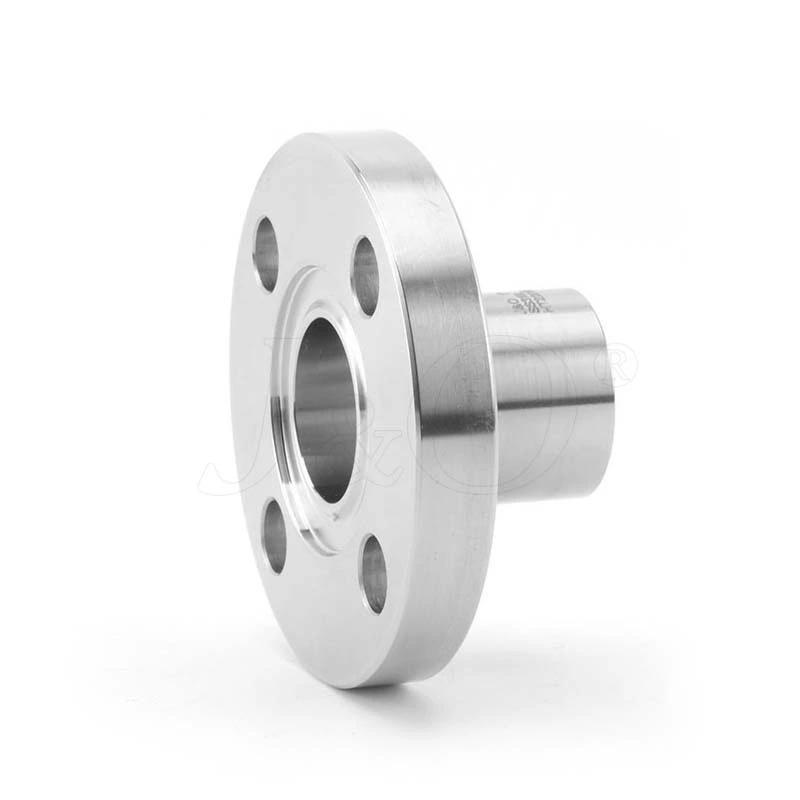

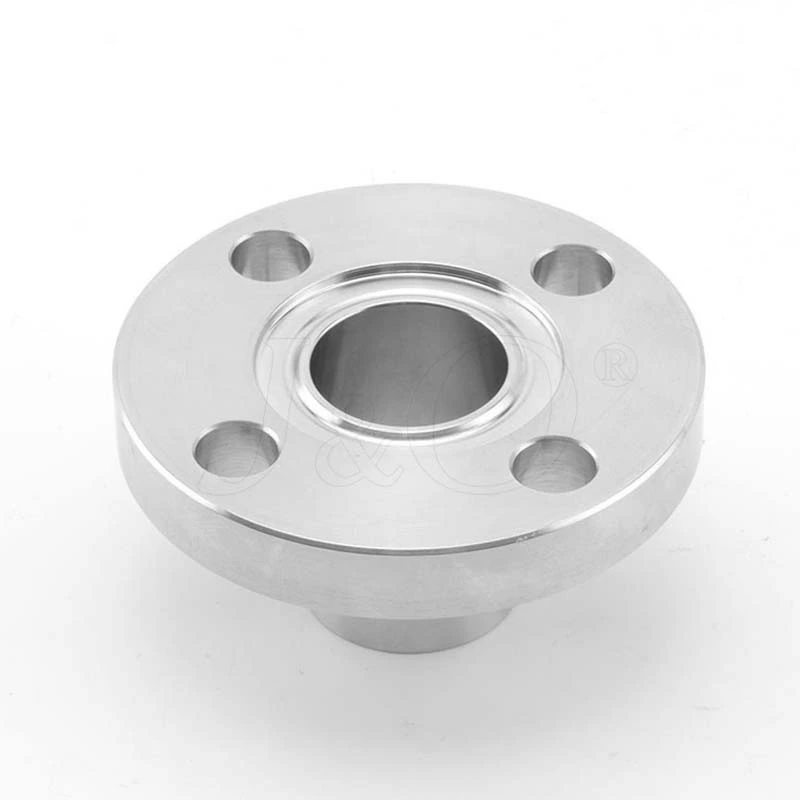

Sanitary Stainless Steel Aseptic DIN11864-2 Liner Flange
Sanitary Stainless Steel Aseptic DIN11864-2 Liner Flange Sanitary Stainless Steel Aseptic DIN11864-2 Liner Flange Sanitary Stainless Steel Aseptic DIN11864-2 Liner Flange

DIN 11864-2 Aseptic Liner Flange

  • DIN 11864-2 is a gap-free connection that has been specially designed with sterile applications in mind.
  • The DIN11864-2 stainless fittings are available in practically all sizes and standard configurations. With these flanges means the process conditions are optimized inside for sterility and cleaning processes whilst ensuring the highest safety to the environment.
  • All DIN11864-2 aseptic stainless flanges have a smaller outer diameter and are very compact. The design of these aseptic stainless unions incorporates the use of a standard dimension o-ring which gives the flexibility of material choice.

Technical Data

Material: SS316L
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: DN11-DN100
Application: For Aseptic applications in chemical and pharmaceutical industry.

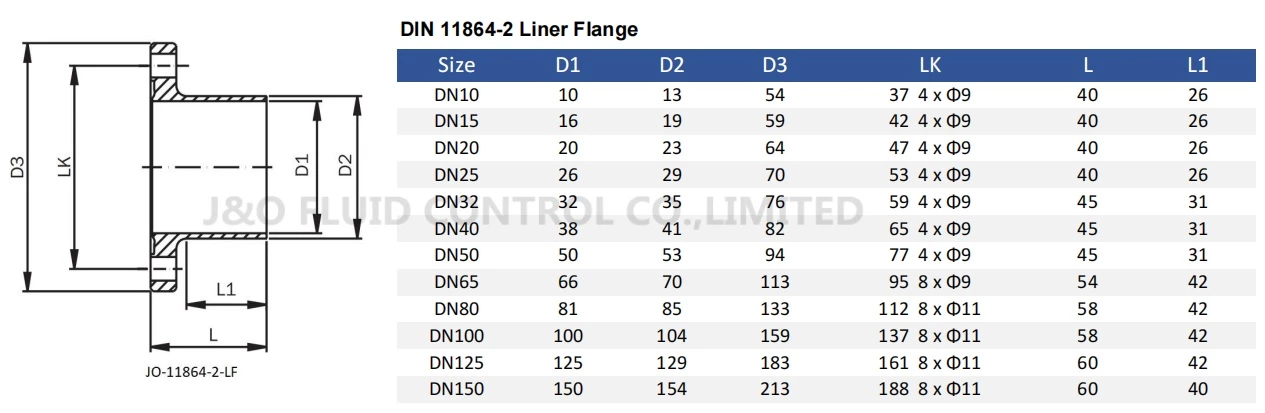

Product Parameter
