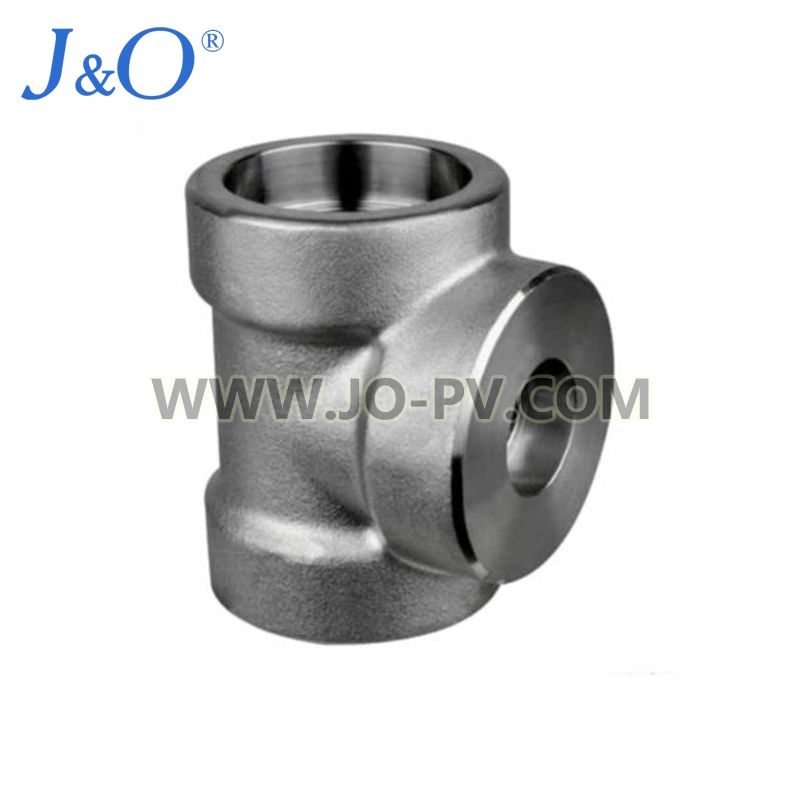

FORGED REDUCING TEE

This tee class 3000 is a stainless-steel 304/304L t-shaped pipe fitting with female socket welds on the run and branches for connecting a total of three pieces of pipe. The tee fitting changes flow direction and the socket weld connections have internal recesses on the inside diameters to allow for a smooth bore and better fluid flow.

Brand:
J&O
Material:
SS304/SS316
Connection:
Socket Weld
Download Catalog:
3000PSI PIPE FITTINGS.pdf
Enquiry
FORGED REDUCING TEE

Forged Reducing Tee

  • It is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ec.

  • Each kind of products has strong corrosion resistance and over-long service liftime.

  • Tank accessories are easy to be installed.

  • Problem-free welding and assembly and highest possible strenghth.

  • Welding Requirements:aware of the constantly increasing demands for quality of welding. In accordance with these demands, all our weld and fittings meet the hightest of standard. The reducers have cylindrical welding ends and are avaible for all tube combiations, ensuring you that the right diamter and wall thickness for your process.

Technical Data

Size: 1/8''-4''
Connection: weld
Application scope: Dairy, food, beer, beverage, pharmacy, cosmetic, etc
Packaging Details: Shrink wrapped - carton - pallet . Or as per the request of customers
Delivery details: Usually within 20 days after receiving T/T down payment

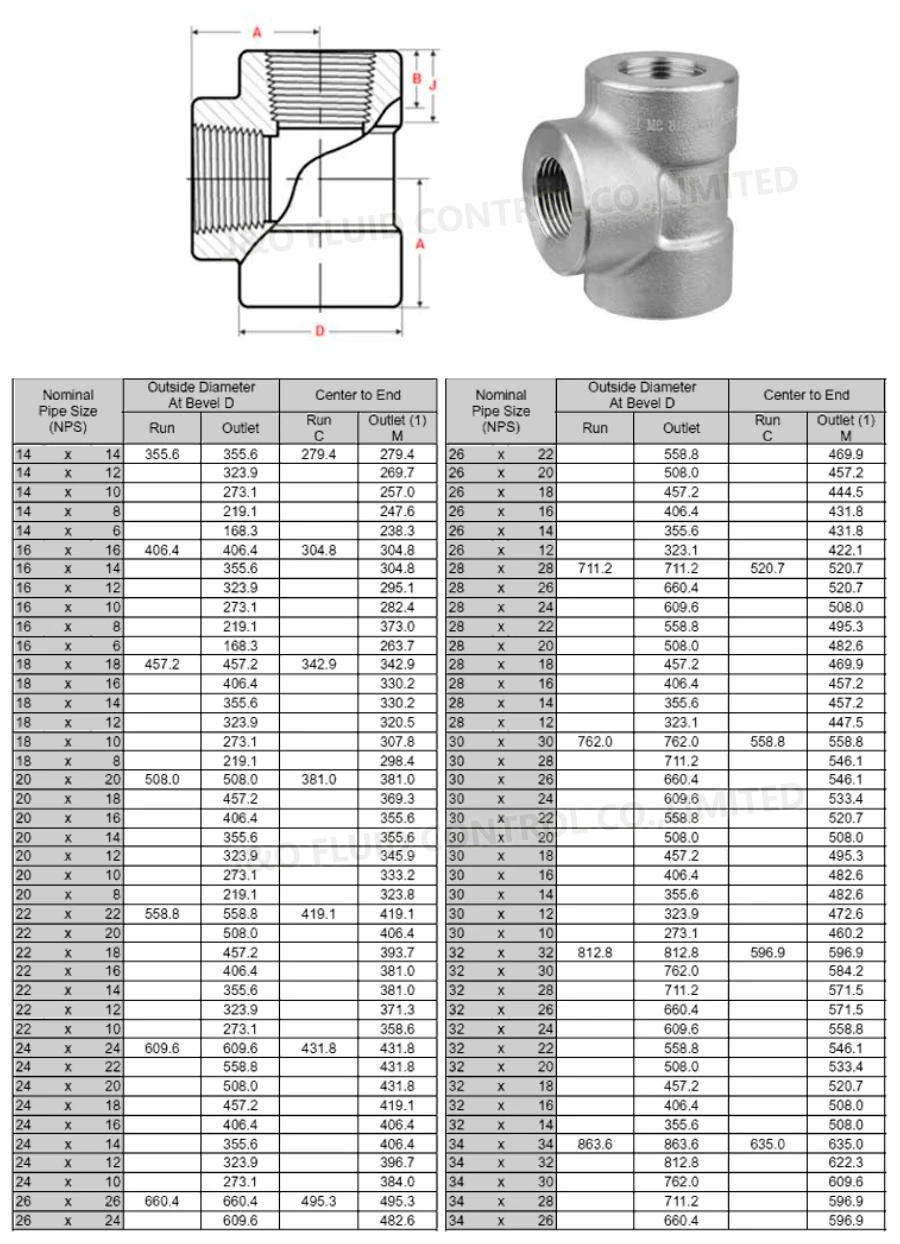

Product Parameter

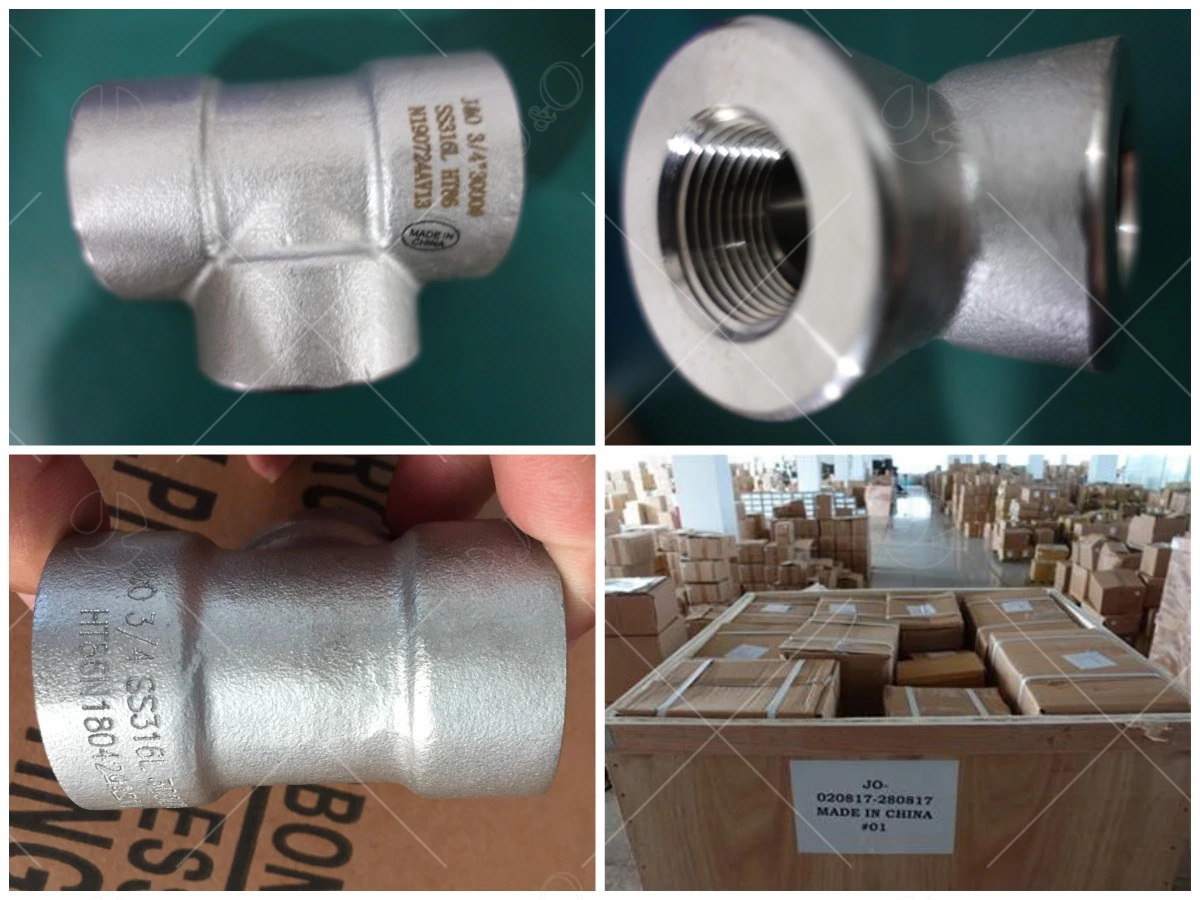

Product Pictures

The material we have ?

A. (CARBON STEEL) ASTM A105, A181, AISI 1021, 1022,1026, JIS S 22C, S 25C  Mn : (0.6  ?1.05%), A350 LF2, GB/T 699 20Mn

B. (STAINLESS STEEL Ni-Cr)  ASTM A 182 F 304, F 304L, F304H,  F316, F 316L, F316H, F 317L  JIS SUS304, 304L, 304H, 316, 316L, 316H, 317L

C. (LOW Cr-Mo ALLOY STEEL)  ASTM A 182 F 1, F5, F11, F22, F91

pressure ?

A. THREADED WOG 2000Lbs - 3000Lbs - 6000Lbs (140kgs/cm 2 -210kgs/cm 2 -410kgs/cm 2 ) ( SCH 40 - SCH 80 - SCH 160 )

B. SOCKET WELDING WOG 3000Lbs - 6000Lbs - 9000Lbs ( SCH 80 - SCH 160 - XXS )

the sizes we have ?/p>

NPS 1/8"  ?" ( 6mm  ?00mm )

both production can be offered as follows:



(SOCKET WELDING)  (THREADED NPT, PT)



the production standard ?/p>



GB/T 7306, 12716, 14383, 14626  ANSI/ASME B 1.20.1,  B16.11  MSS SP-79, 83, 95, 97 JIS B0203 B2316.
