Square plug

Forged thread Plug fittings is ofter used in oil and gas applications, which include process, seawater, firwater and subset pipework systems. They are offered to clients with the option of customising the size as per the individual purchasers.

Brand:
J&O
Material:
SS304 / SS316
Connection:
Thread
Working Pressure:
3000PSI
Download Catalog:
3000PSI PIPE FITTINGS.pdf
Enquiry

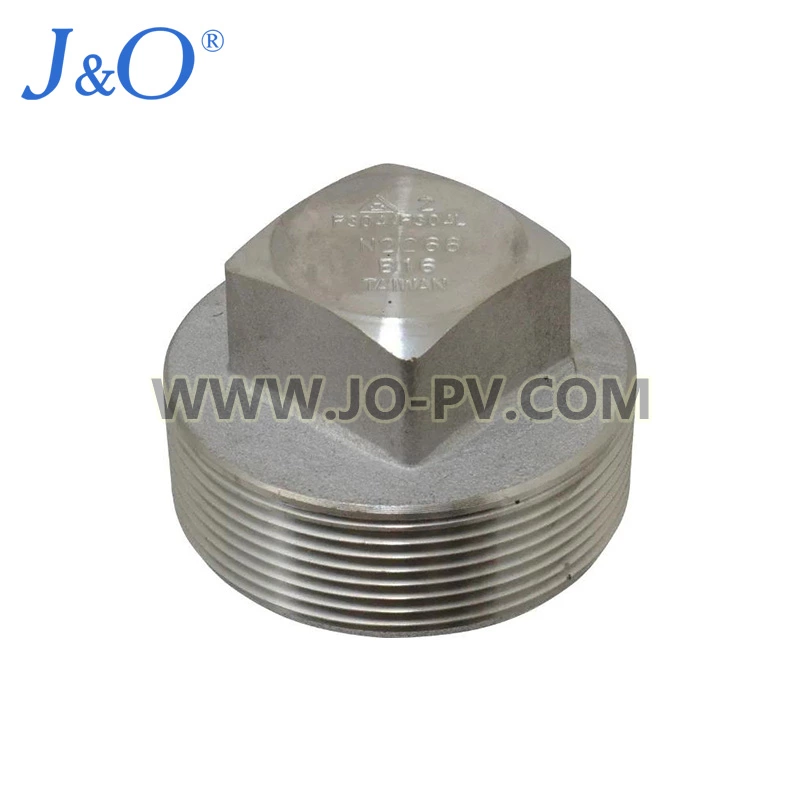

Square plug

3000PSI Male Thread Square Plug

  • J&O Fluid Control is one of the professional manufacturers of stainless steel products with our own casting foundry.

  • We are specialized in stainless steel pipe fittings for many years, especially for thread pipe fittings(ISO4144 Standard, MS SP114 Standard, High pressure 3000PSI), Camlock Coupling, Tube Fittings, Hydraulic Fittings, etc.

  • Our stainless steel thread fittings can be manufactured according to national standard and customers' requirements, such as ISO414, MSS SP-114, GB/T26120, etc.

  • This series o fproducts are used for ordinary piping for steam, air, water, oil, gas(except flammable or toxic gas).

Technical Data

Material: SS304 or SS316
Size: 1/8"-4"
Thread Type: PT, BSP, NPT

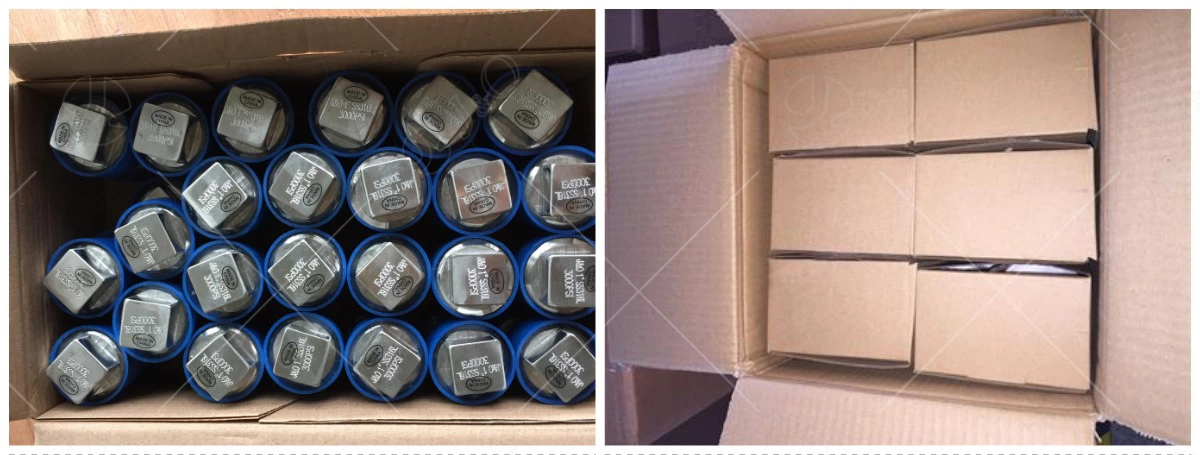

Packing Details: within carton box or plywood case

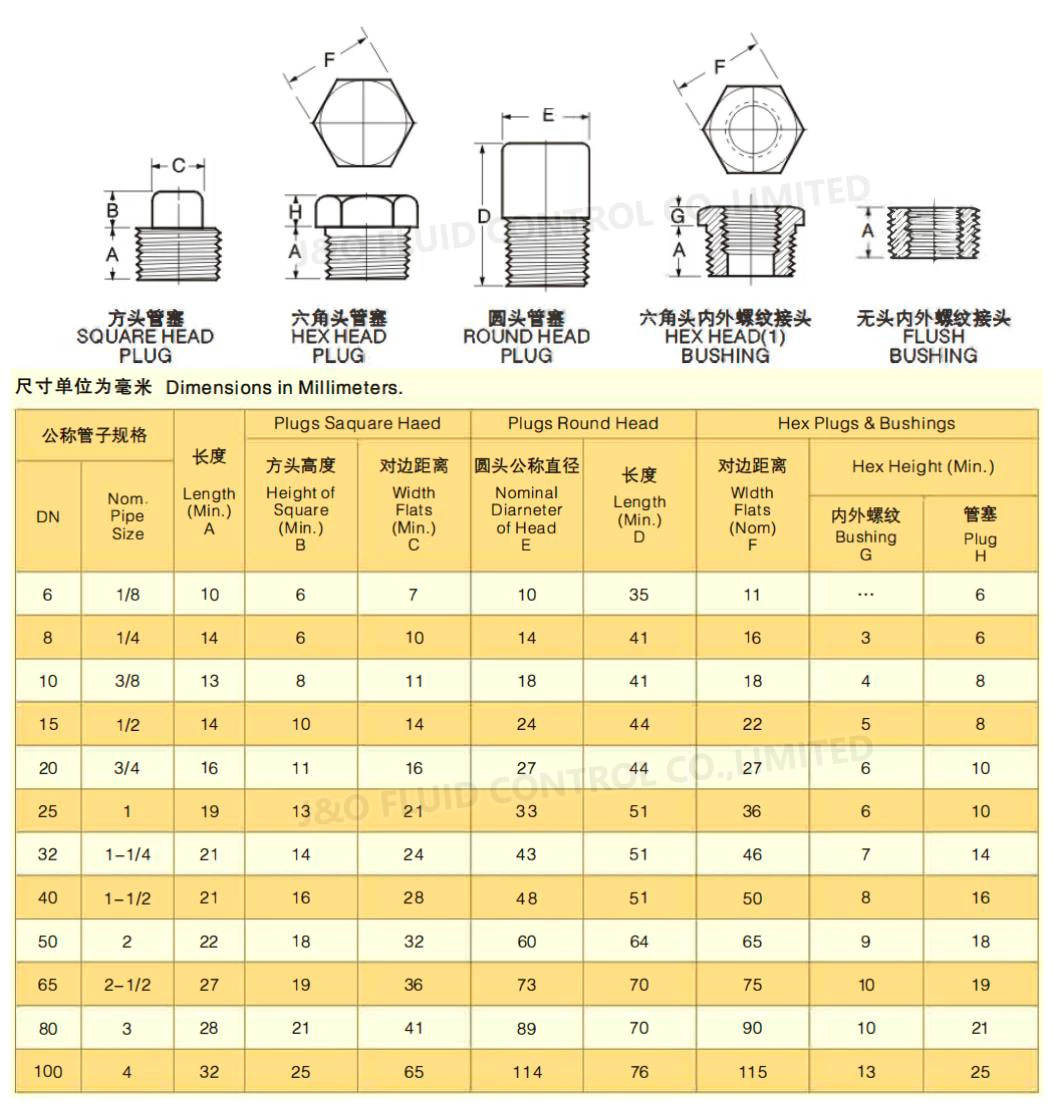

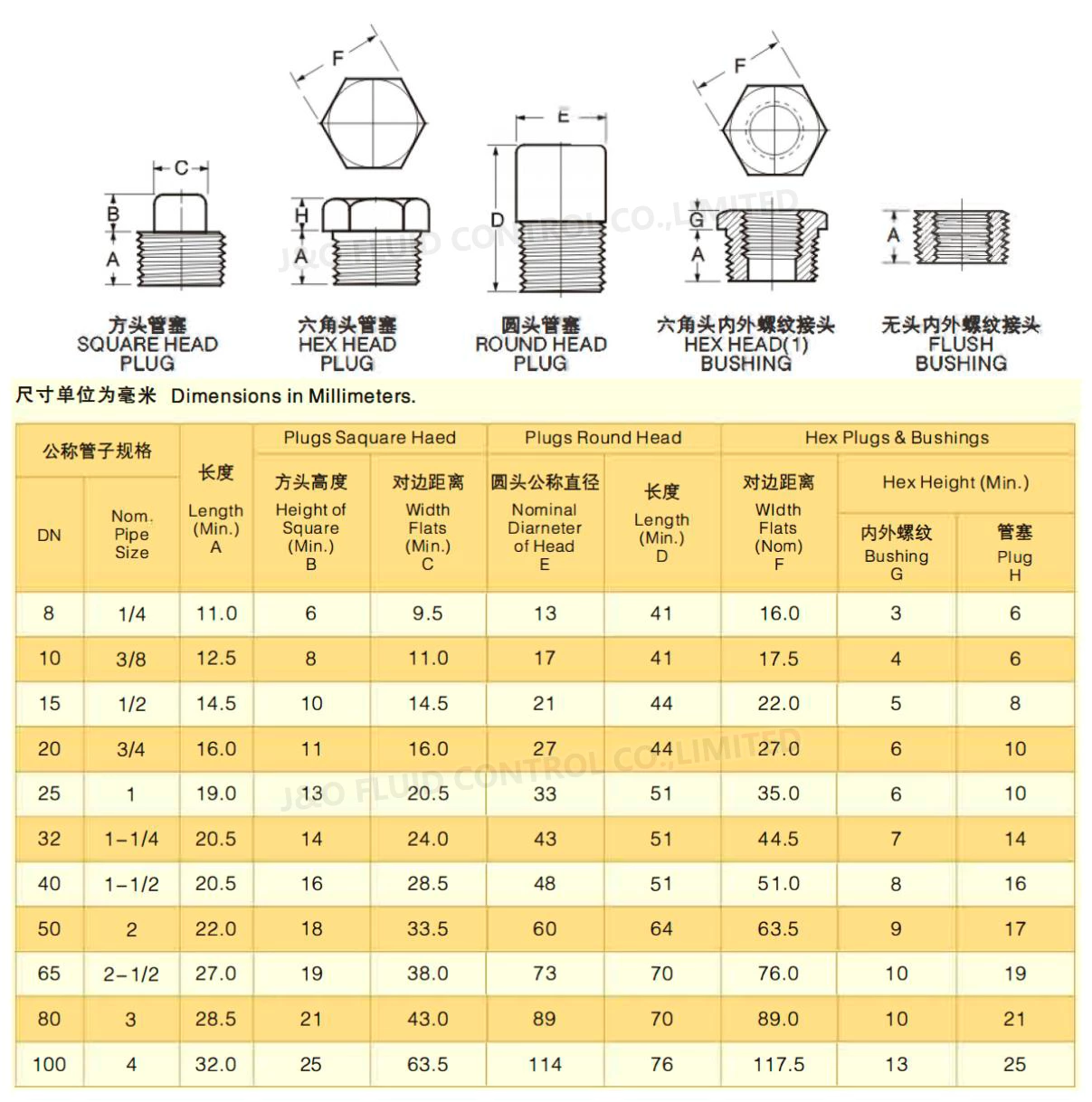

Product Parameter

ASME B16.11-2005(ASME B16.11-2001的修订版)

GBT14383-93

Product Pictures
