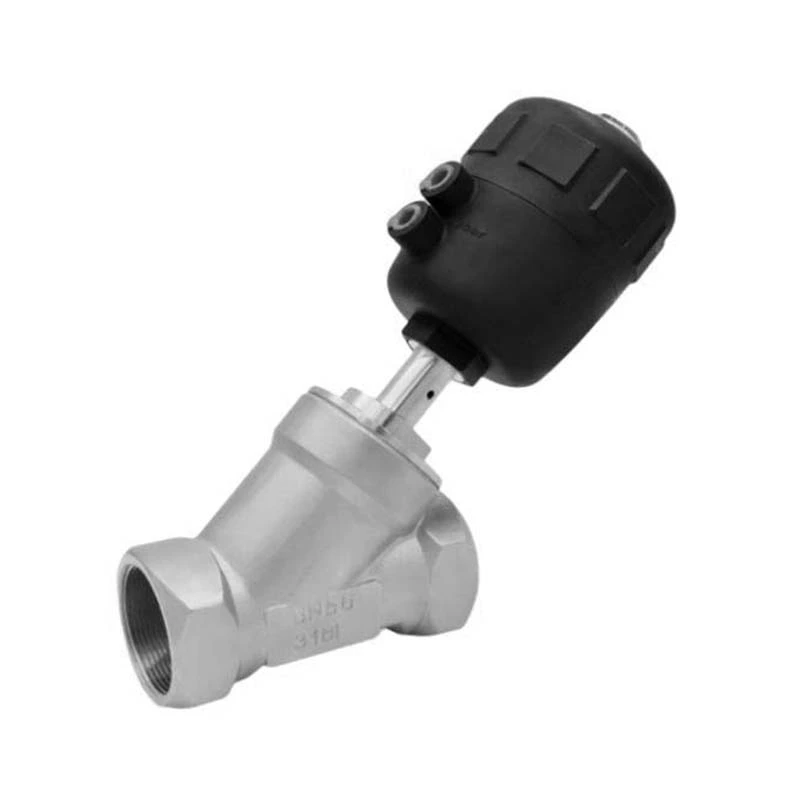

Main Technical Features Of Stainless Steel Pneumatic Angle Seat Valve

Publish Time: Author: Site Editor Visit: 34

Angle Seat Valve adopts sanitary angle seat valve, which has the characteristics of large flow, space saving, high pressure resistance, etc. due to the angle seat structure of the valve body. It is widely used in the pharmaceutical, fine chemical and other industries. It is suitable for short-term frequent start-up, with the characteristics of sensitive response and accurate action. It is used with solenoid valves for pneumatic control and can accurately control the flow of fluids such as liquids and steam. For example, the angle seat valve can be used on the wet heat sterilizer to accurately control the amount of steam. It is more economical, maintenance-free, easy to install, and low energy consumption among similar valves. A variety of connection methods: butt welding joints.

Main technical features of stainless steel pneumatic angle seat valve:

● The seal between the pneumatic head and the valve body is composed of multiple layers of sealing rings of different materials, which has better sealing effect;

● A variety of optional accessories: limit bolts (open/closed), electronic position feedback, adjustment positioner;

● Stainless steel pneumatic head, UV resistant, longer life than plastic and aluminum alloy pneumatic heads, can be used in harsh environments;

● Different sizes of valve bodies share a pneumatic head, effectively reducing costs;

● The sealing material is polytetrafluoroethylene, which can withstand high temperatures of 180°C;

● Corrosion resistance, design in accordance with GMP standards, easy to clean;

● Advanced valve body angle seat structure, the flow rate is about 30% larger than that of ordinary valve bodies, and the flowability (KV value) is better than similar products, especially compared with ordinary stop valves;

● No water hammer effect, when the flow flows in from the bottom of the valve stem, the water hammer (impact force) is absorbed.
