Sight Glass Clamp

Our Sanitary Sight Glass including Sanitary Welded Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.

Model:
JOF-SGH01-22
Brand:
J&O
Material:
SS304 or SS316L
Connection:
Clamped
Gasket:
EPDM, SILICON, VITON, PTFE
Working Temperature:
20°C ~ +135°C (EPDM,Silicone)
Working Pressure:
10Bar
Download Catalog:
J&O Sight Glass new.pdf
Enquiry
Sight Glass Clamp
Sight Glass Clamp Sight Glass Clamp Sight Glass Clamp Sight Glass Clamp Sight Glass Clamp

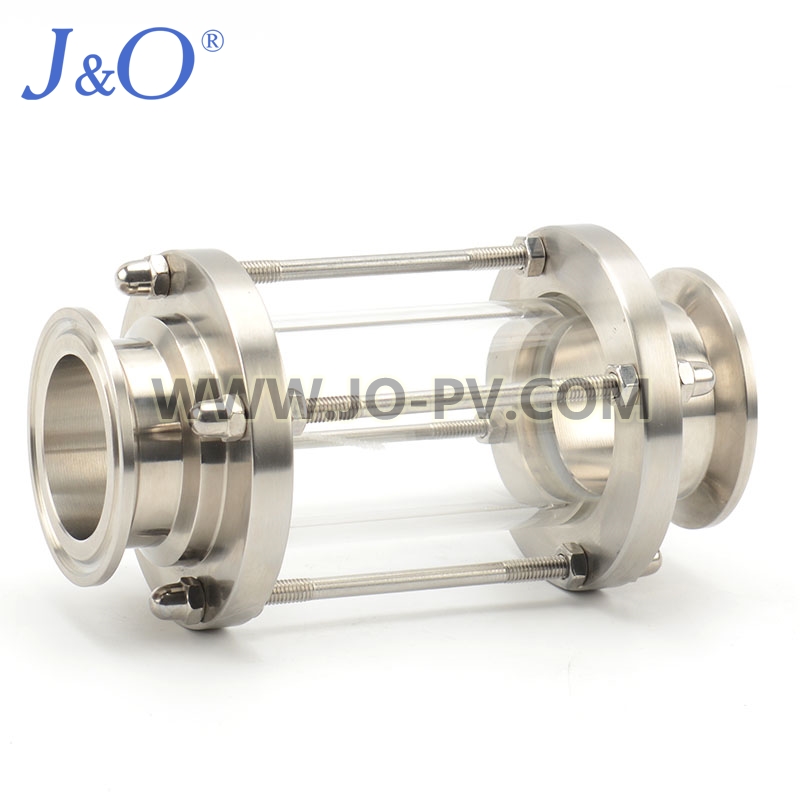

Sanitary Stainless Steel Clamped Sight Glass

  • Our Sanitary Sight Glass including Sanitary Welded Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.

  • Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.

  • Screw Blot: Full Stainless Steel.

  • EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.

  • It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.

Technical Data

Material grade: 304, 316L
Seal(Gasket): EPDM, SILICON, VITON, PTFE
Size range: 1/2",3/4",1", 1.5", 2", 2.5", 3", 4"
Type of ends available: Clamp end, Weld end, Male end and Female end.
Wide-range application: For food, dairy, beverage, meat processing, vacuum processing, pharmaceutical,chemeical,and many other industries

Product Parameter

Product Pictures
