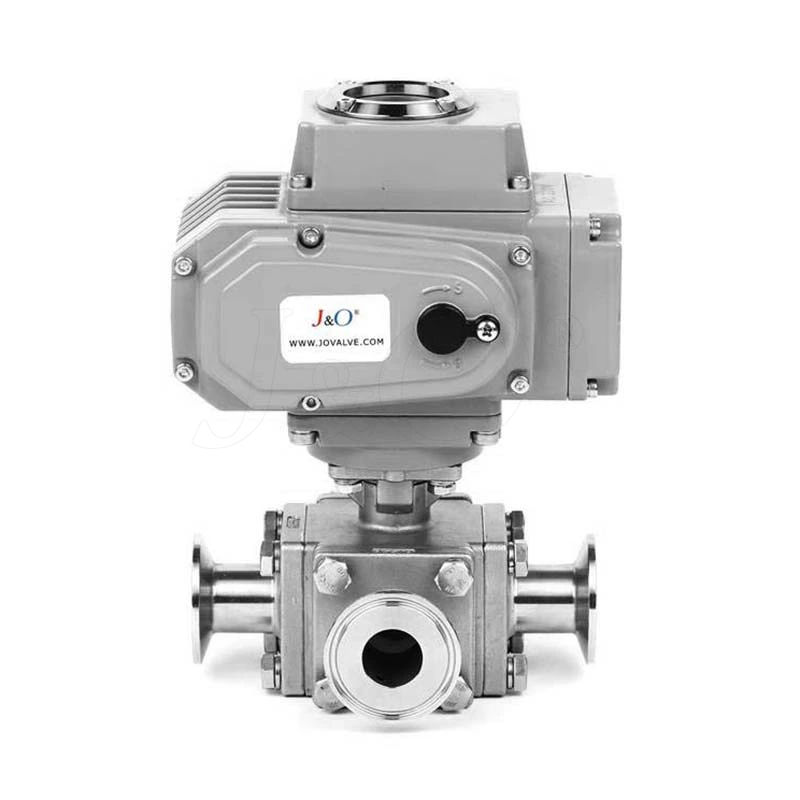

Electric Sanitary Stainless Steel Encapsulated 3-Way Ball Valve
Electric Sanitary Stainless Steel Encapsulated Tri Clamp 3 Way Ball Valve Cavity filled seat design, no retention and high cleanliness, meet CIP SIP sterilization and cleaning requirements. Regard
- Brand:
- J&O
- Material:
- SS316L
- Connection:
- Clamped
- Gasket:
- PTFE
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Electric
Electric Sanitary Stainless Steel Encapsulated Tri Clamp 3 Way Ball Valve
-
Cavity filled seat design, no retention and high cleanliness, meet CIP SIP sterilization and cleaning requirements.
-
Regardless of the connection method, the valve body can be replaced without changing the total length of the valve.
-
L-type and T-type can be replaced on site, and the direction of inlet and outlet can be combined in any way to ensure no stagnation and no dead angle
Technical Data
| Valve Body Material: | SS304/SS316L |
| Seal Material: | PTFE |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 180 degree C |
| Availably size: | 1"-4", DN25-DN100 |
| Availably connection: | Clamp, weld, thread |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Electric |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |

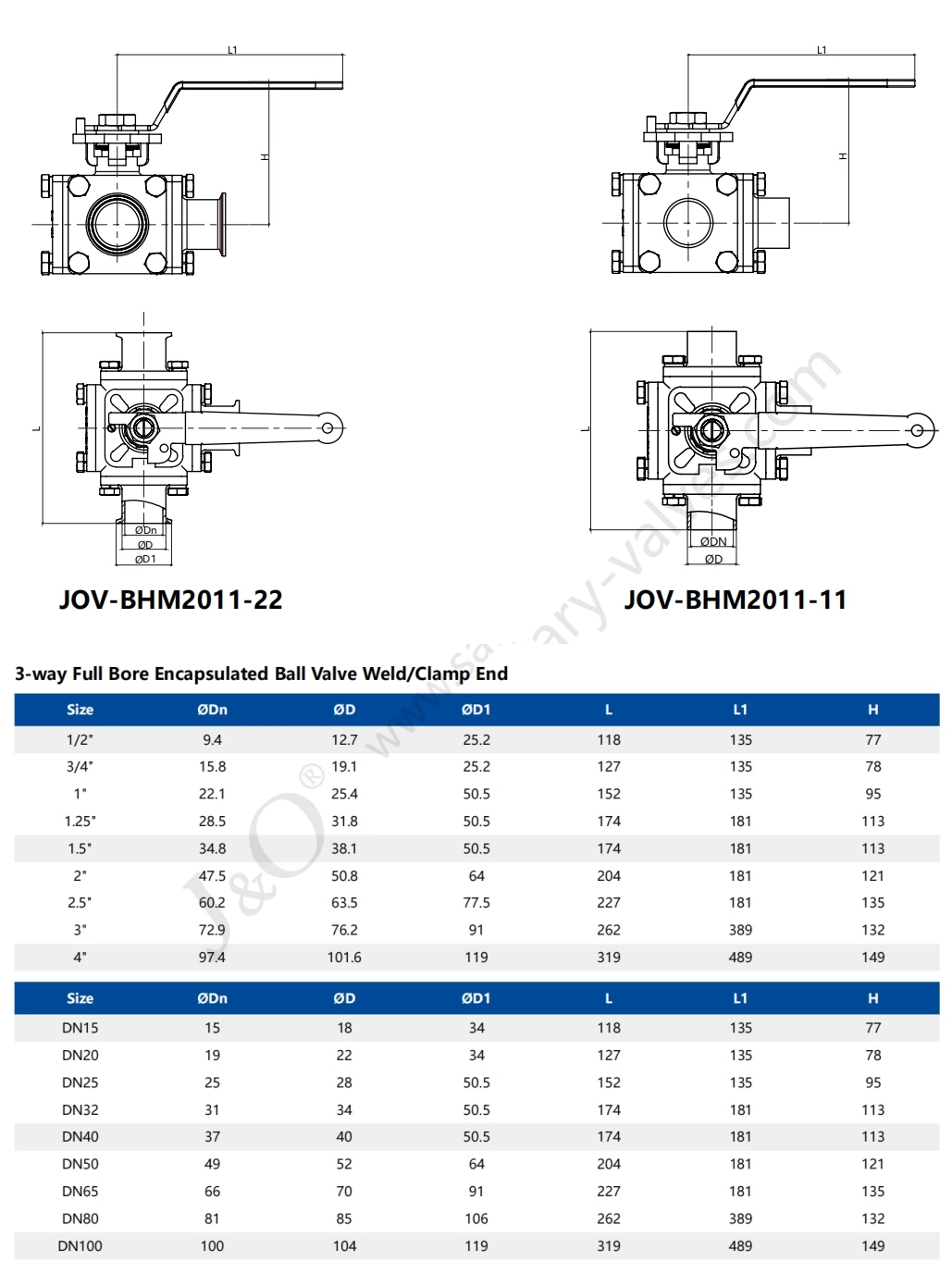

Product Parameter

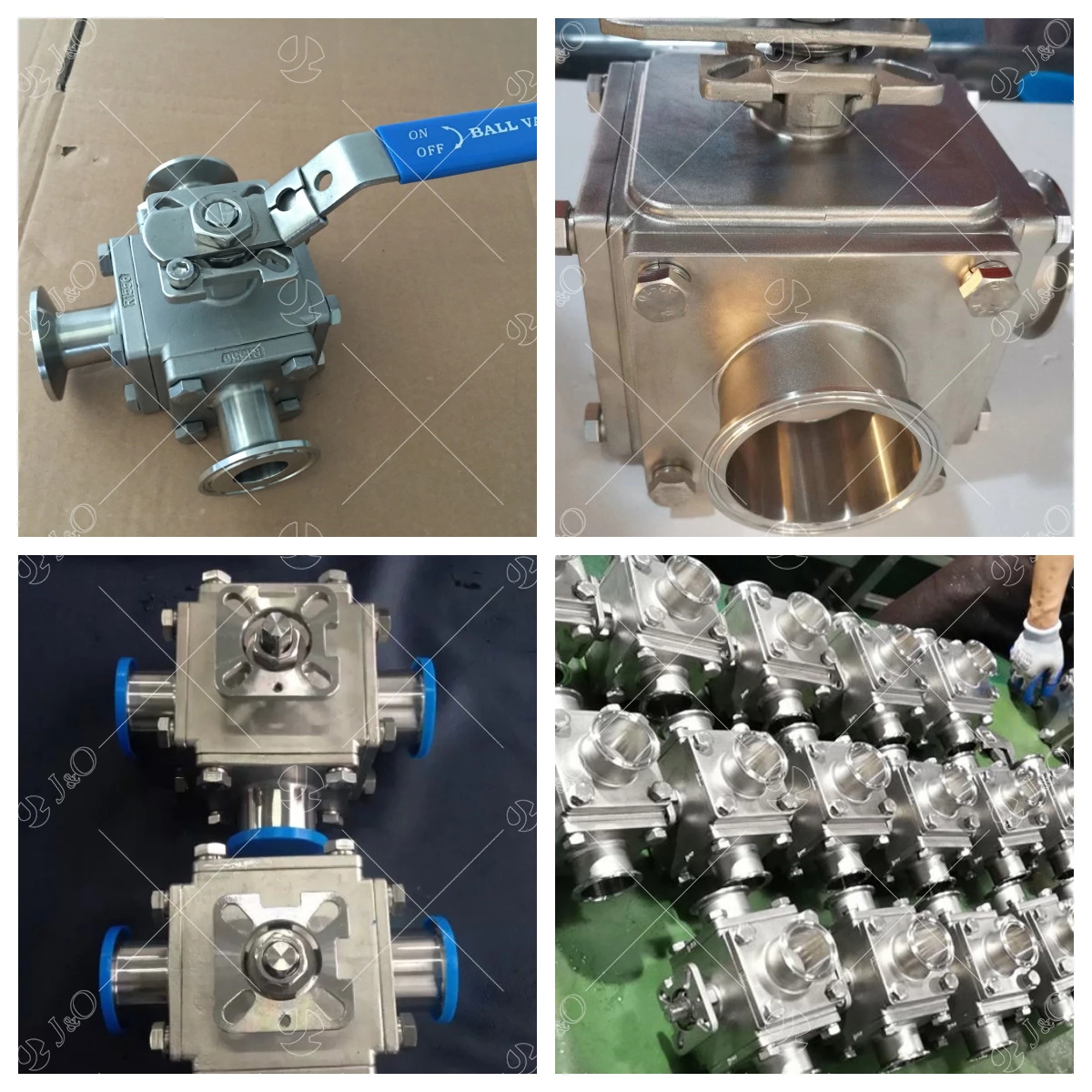

Product Pictures
