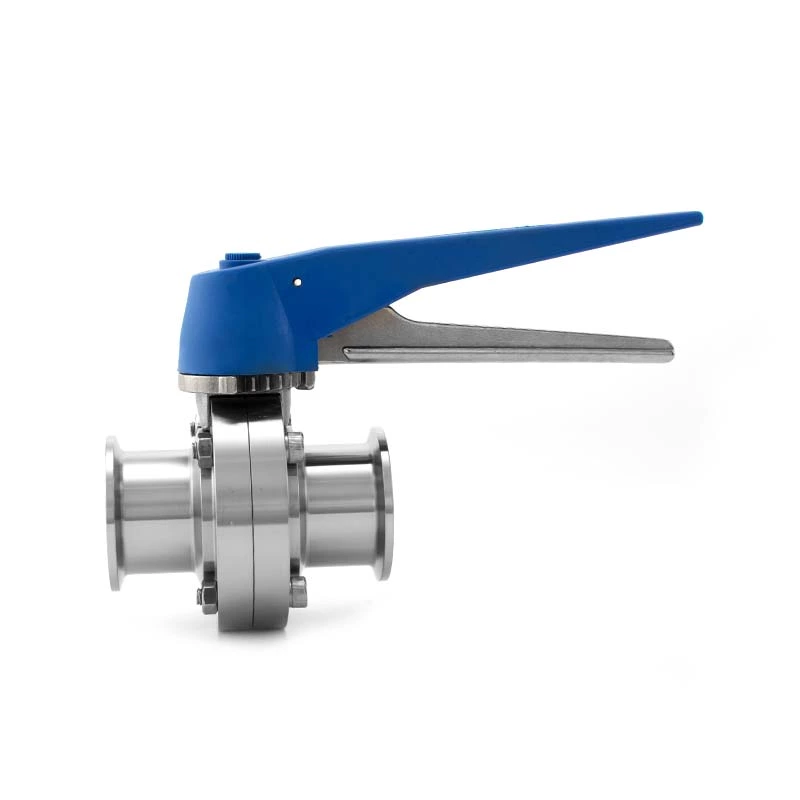

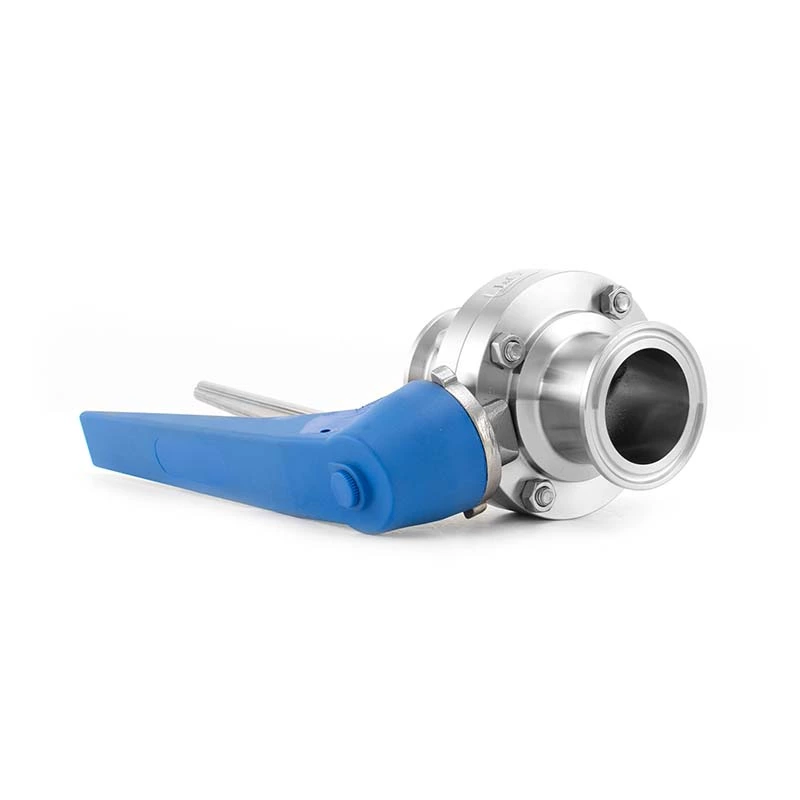

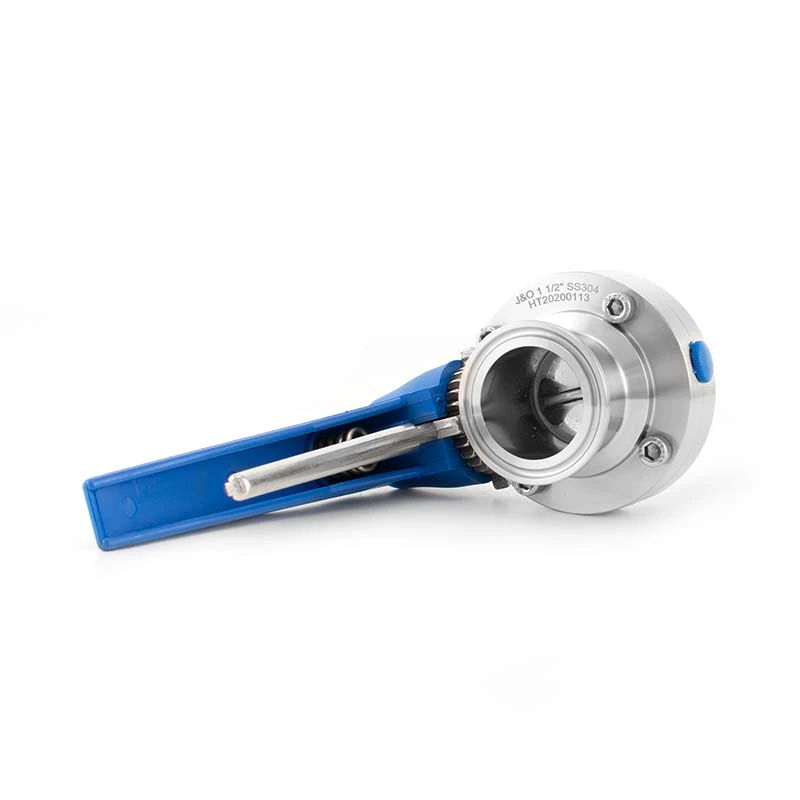

Sanitary Butterfly Valve 12 Positions Handle
Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Clamped
- Gasket:
- EPDM / Silicon / NBR / FKM
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Manual

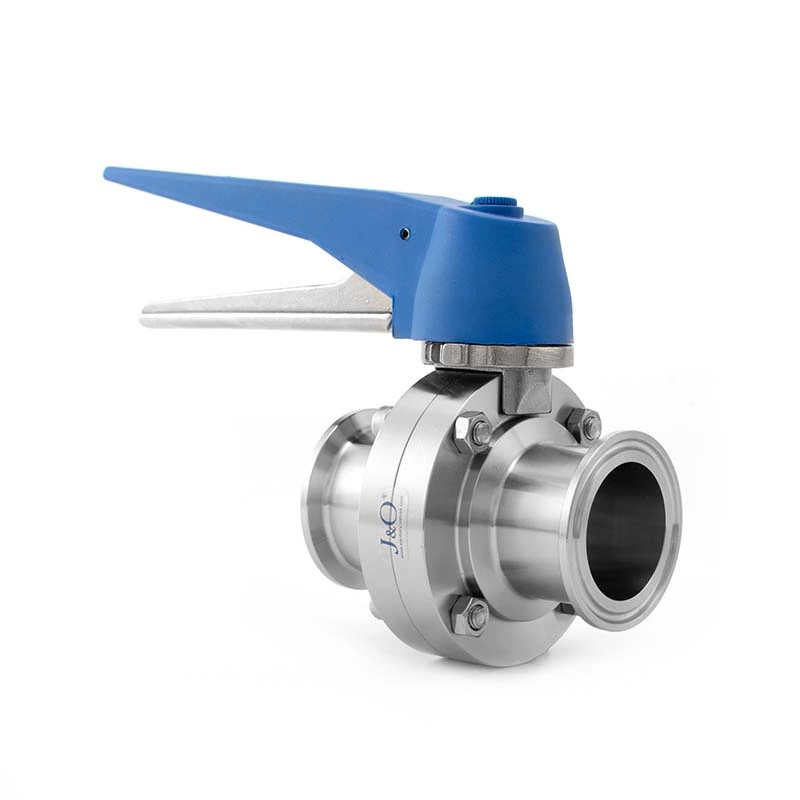

Sanitary Stainless Steel Tri-Clamp Butterfly Valve
-
Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
-
The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
-
All of the products have been 100% press tested before shipping.
-
It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
-
EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
-
Tri-clamp connections allow for easy field disassembly for clean-in-place processes.
Technical Data
| Body Material (Wetted Parts) | AISI 304 or 316L (1.4301 / 1.4404) |
| Other Steel Parts | AISI 304 |
| Seat Options | Buna-N (NBR), Silicone, EPDM or Viton (FKM) |
| Max. Working Pressure | 145psi (10bar) for DN25/1″-DN100/4″ 116psi (8bar) for DN125/5″-DN150/6″ 73psi (5bar) for DN200/8″-DN300/12″ |
| Normal Working Temperature Range | Buna-N (NBR) -4°F to 185°F (-20°C to 85°C) EPDM -4°F to 248°F (-20°C to 120°C) SILICONE -4°F to 302°F (-20°C to 150°C) VITON (FKM) 14°F to 356°F (-10°C to 180°C) |
| Inside Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| Outside Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
| End Connections | Butt-welded, Tri-clamp, Male and Female threaded, Flanged |
| Handle Types | 4-position Pull handle; multi-position handle with plastic cover or stainless steel |
Product Parameter

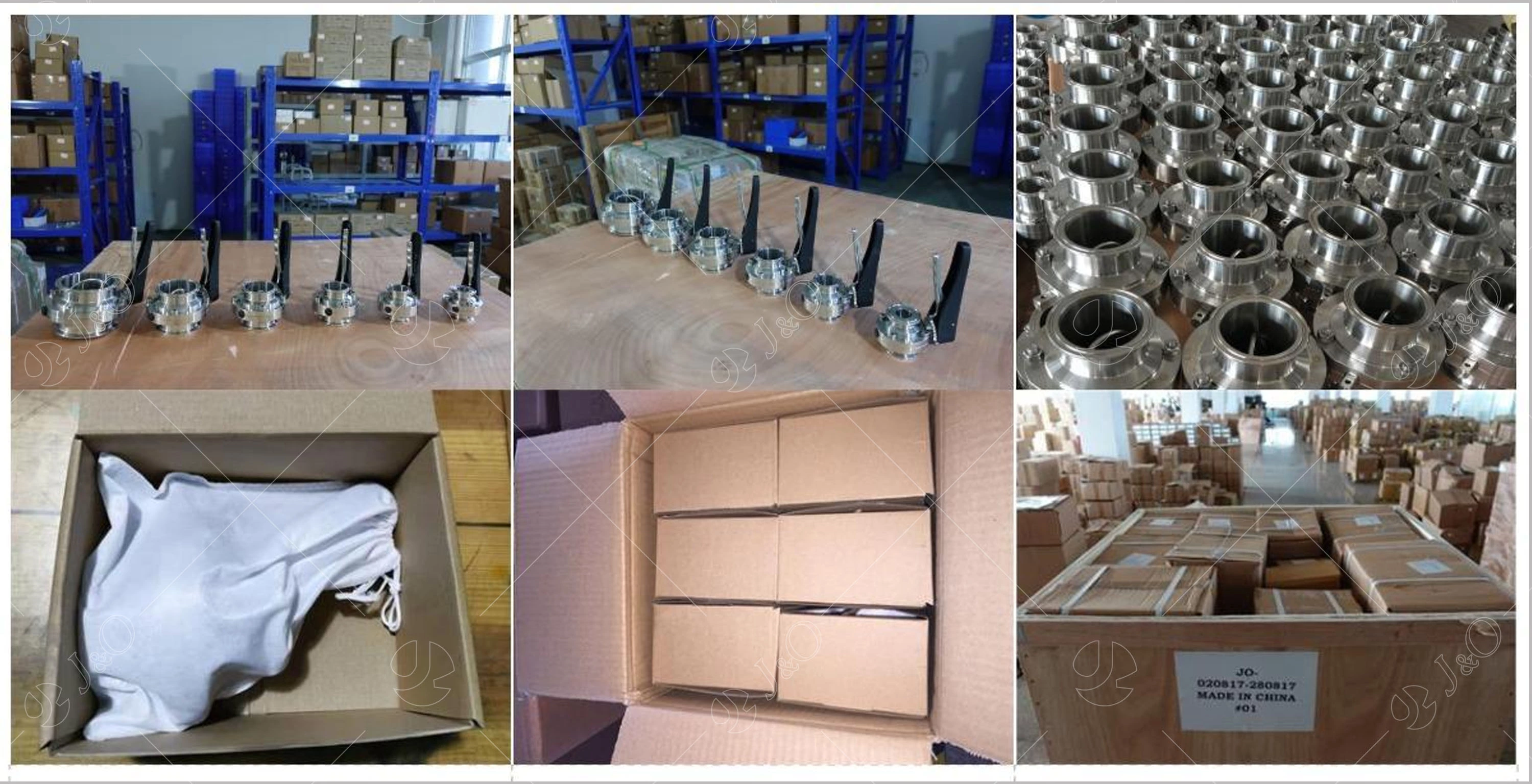

Package
