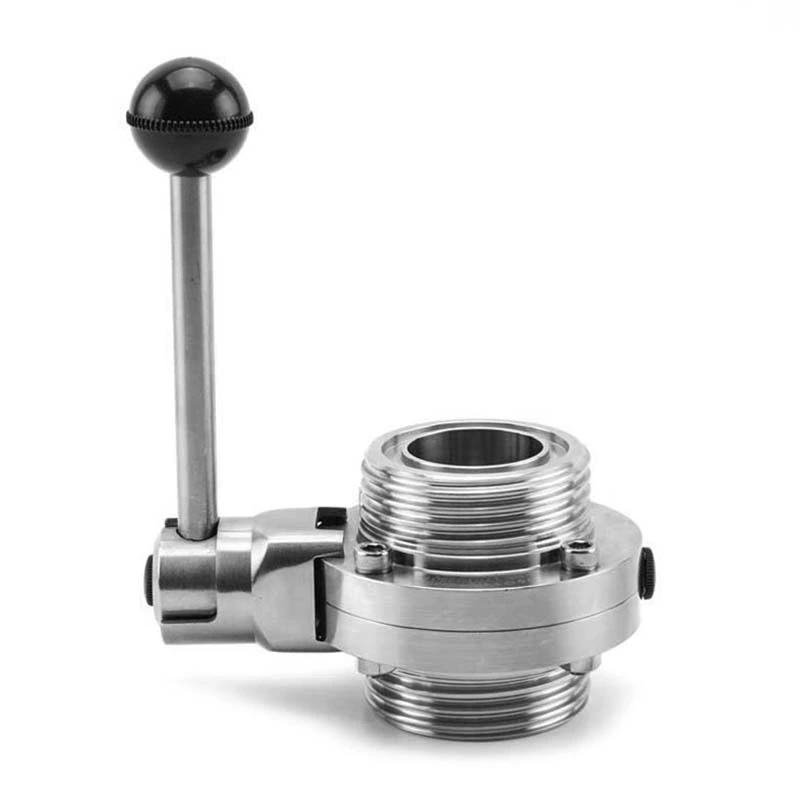

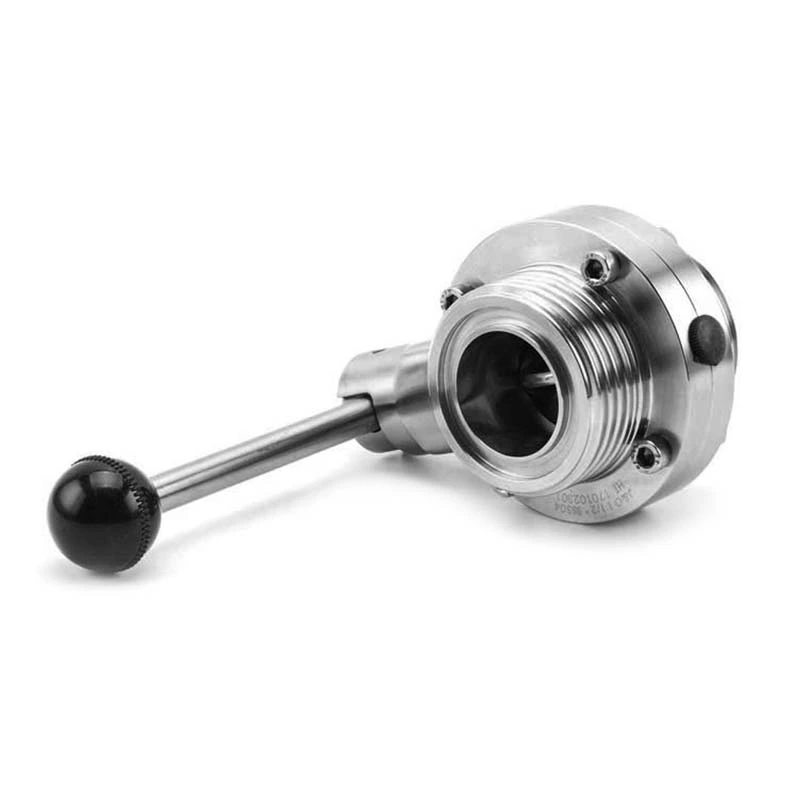

Sanitary Butterfly Valve Male-Male With Square Handle

Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.
Model:
JOV-BFHMS4-33
Brand:
J&O
Material:
SS304 / SS316L
Connection:
Thread
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Code:
JOV-BFHMS4-33
Operation:
Manual
Download Catalog:
J&O SANITARY BUTTERFLY VALVE 1-4.pdf
Enquiry
Sanitary Butterfly Valve Male-Male With Square Handle
Sanitary Butterfly Valve Male-Male With Square Handle Sanitary Butterfly Valve Male-Male With Square Handle Sanitary Butterfly Valve Male-Male With Square Handle Sanitary Butterfly Valve Male-Male With Square Handle

Sanitary Stainless Steel Thread Butterfly Valve with Square Pull Handle

  • J&O Sanitary Butterfly Valve including Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butterfly Valve, Hygienic Electric Butterfly Valve. For the manual handle, we have Stainless Steel Pull Handle, Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.

  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.

  • All of the products have been 100% press tested before shipping.

  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN10-DN150,3/4"-4"
Availably connection: thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Handle application: stainless steel pull handle
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

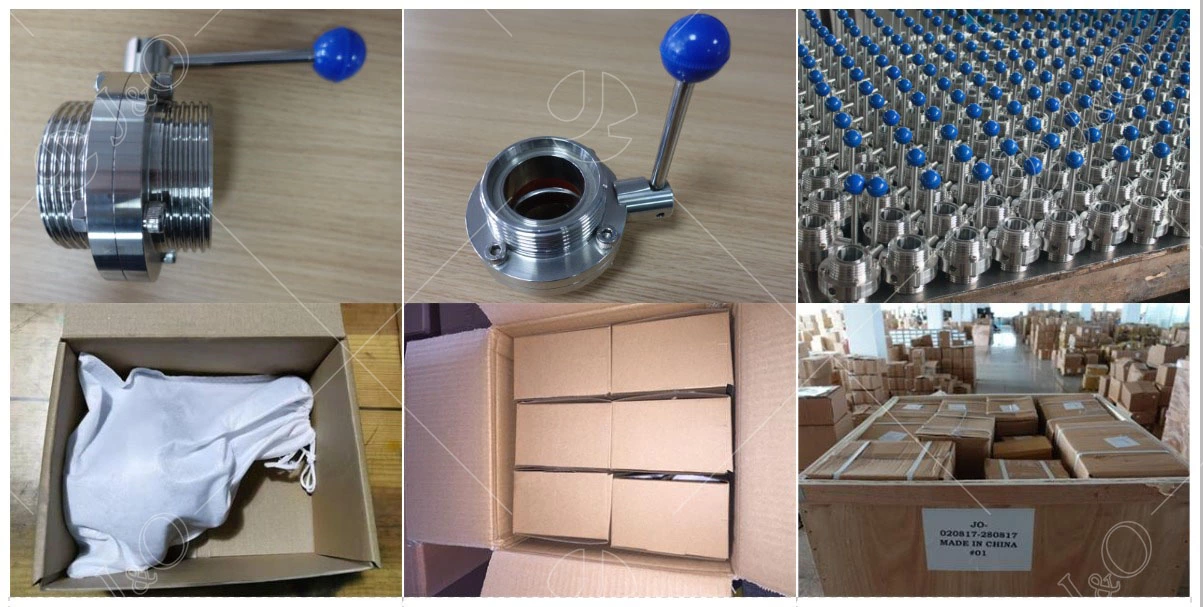

Product Pictures
