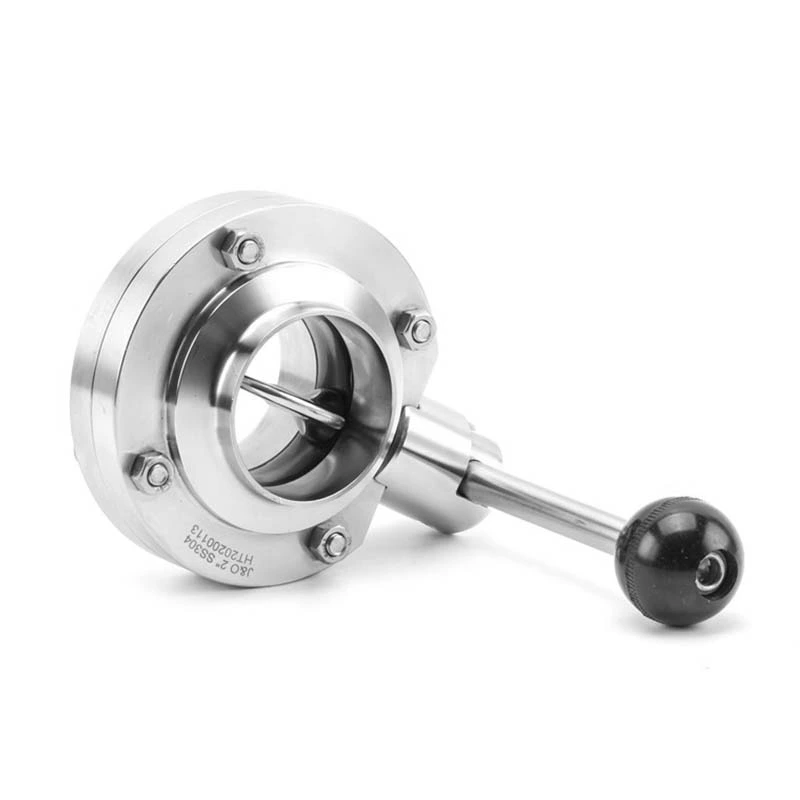

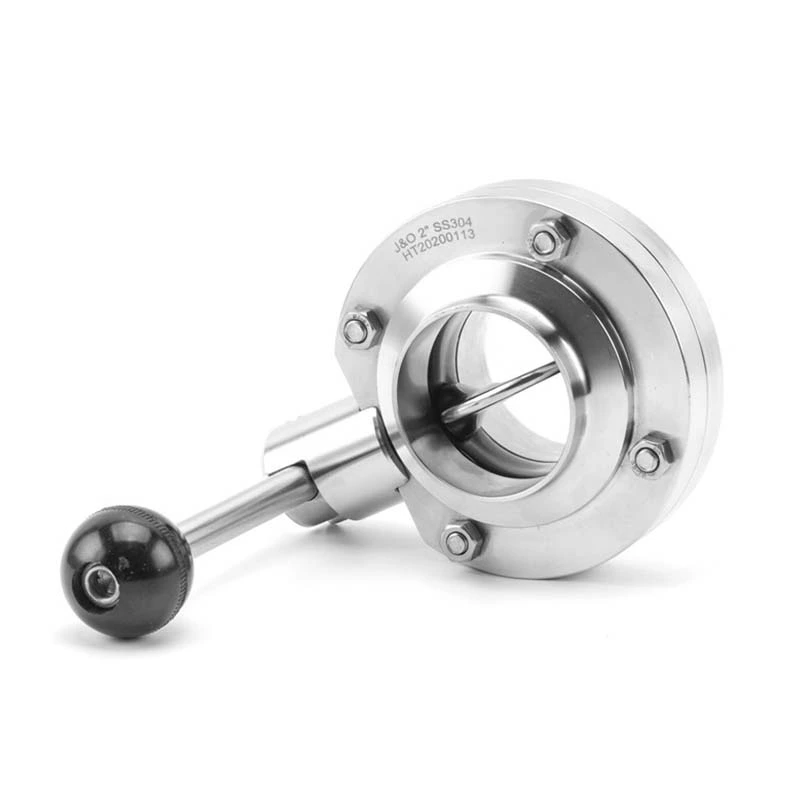

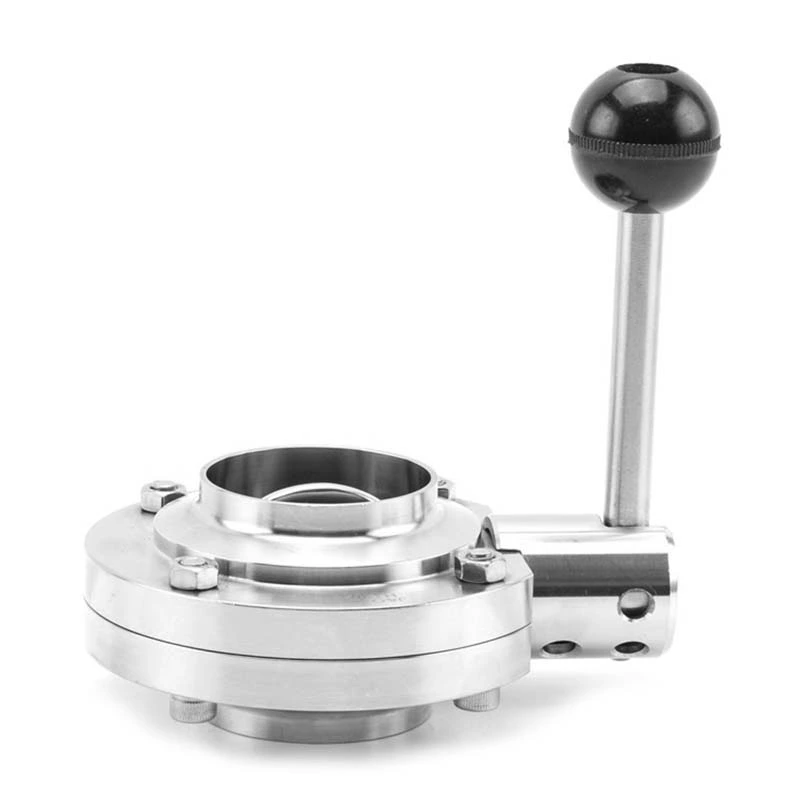

Sanitary Butterfly Valve Weld-Weld

Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.

Model:
JOV-BFHMR4-11
Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped/ Weld / Thread
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Code:
JOV-BFHMR4-11
Operation:
Manual
Download Catalog:
J&O SANITARY BUTTERFLY VALVE 1-4.pdf
Enquiry
Sanitary Butterfly Valve Weld-Weld
Sanitary Butterfly Valve Weld-Weld Sanitary Butterfly Valve Weld-Weld Sanitary Butterfly Valve Weld-Weld Sanitary Butterfly Valve Weld-Weld Sanitary Butterfly Valve Weld-Weld Sanitary Butterfly Valve Weld-Weld

Sanitary Stainless Steel Butt-Weld Butterfly Valve with Pull Handle

  • Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: Butt- weld
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Handle application: stainless steel pull handle
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

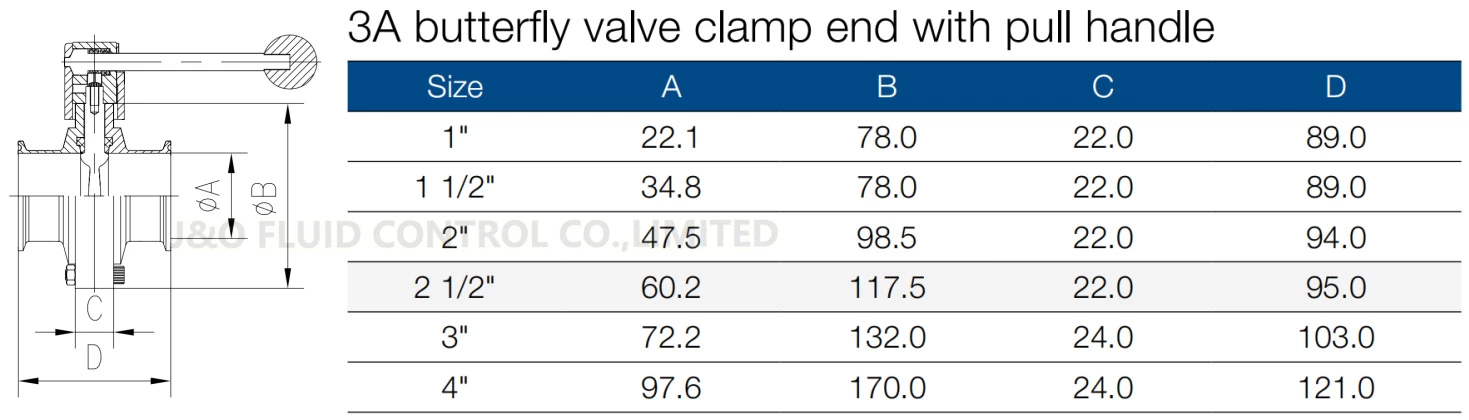

Product ParameterProduct Pictures
