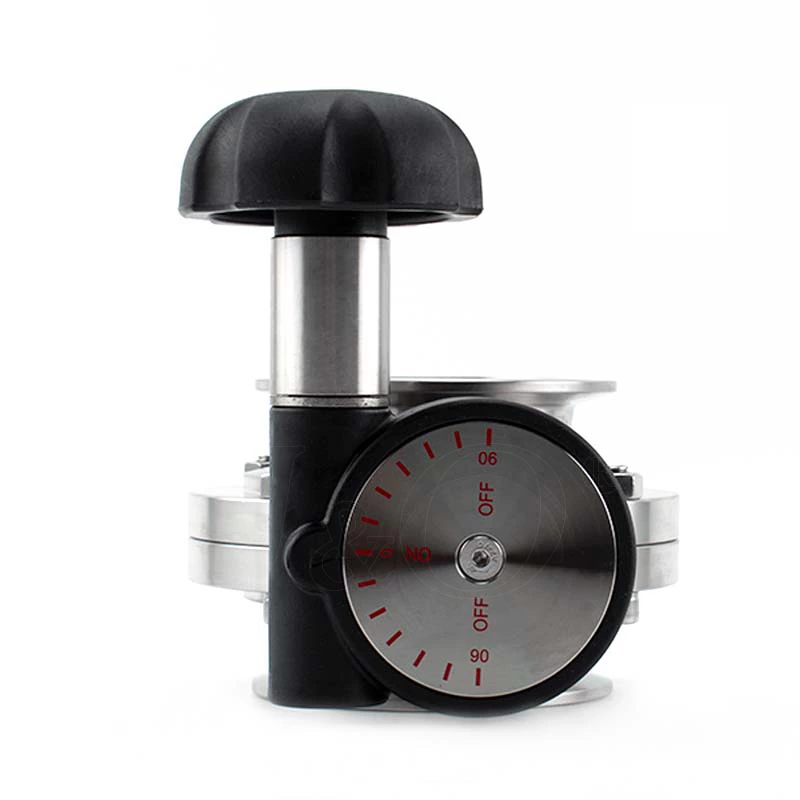

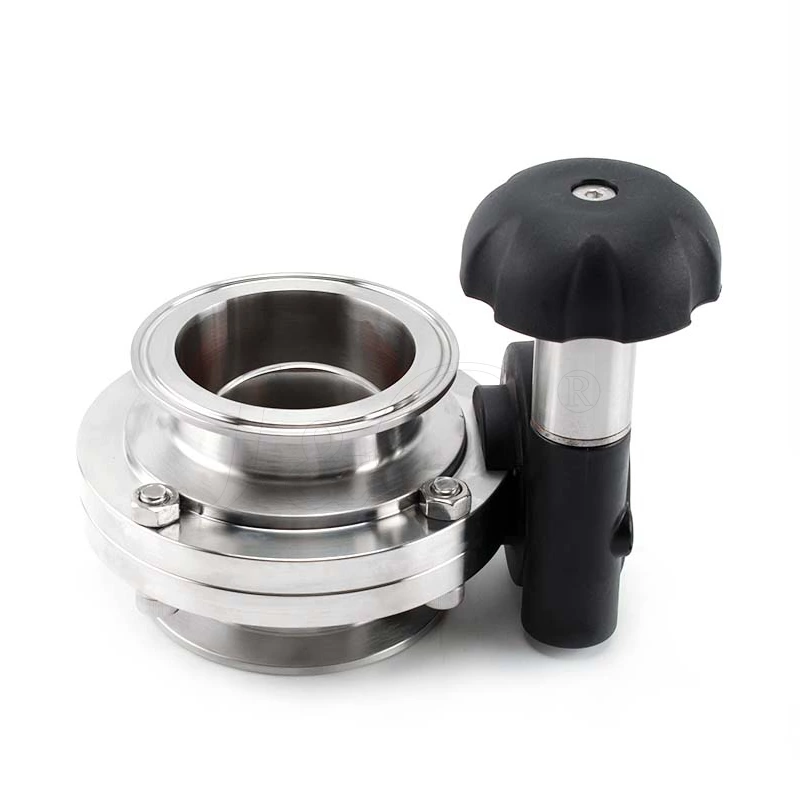

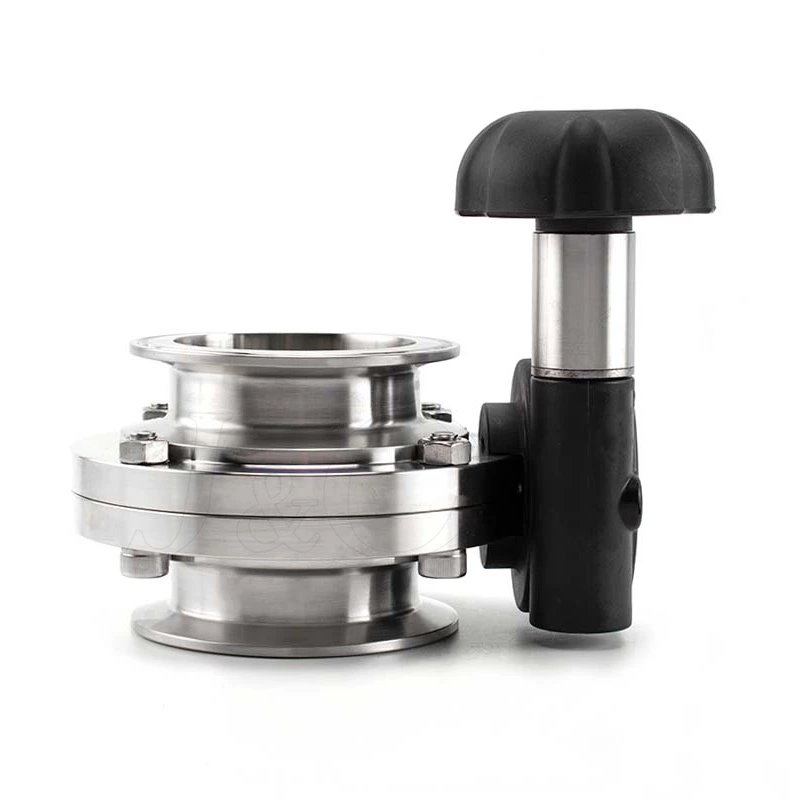

Sanitary Stainless Steel Fine Adjustment Tri Clamp Butterfly Valve

Sanitary Stainless Steel Fine Adjustment Tri Clamp Butterfly Valve Fine adjustment butterfly valve has all functions and characteristics of standard butterfly valve with a very flexible flow control d

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped/ Weld / Thread
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual
Download Catalog:
J&O SANITARY BUTTERFLY VALVE 1-4.pdf
Enquiry
Sanitary Stainless Steel Fine Adjustment Tri Clamp Butterfly Valve
Sanitary Stainless Steel Fine Adjustment Tri Clamp Butterfly Valve Sanitary Stainless Steel Fine Adjustment Tri Clamp Butterfly Valve Sanitary Stainless Steel Fine Adjustment Tri Clamp Butterfly Valve

Sanitary Stainless Steel Fine Adjustment Tri Clamp Butterfly Valve

  • Fine adjustment butterfly valve has all functions and characteristics of standard butterfly valve with a very flexible flow control device.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: Clamp, Weld, Thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical,
