J&O Fluid Control Co., Limited.

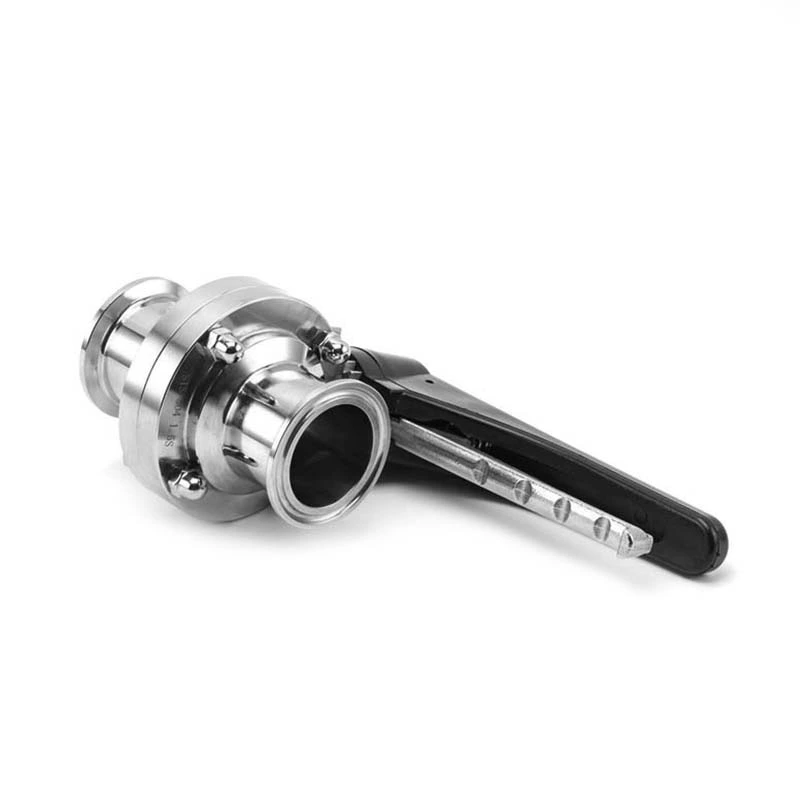

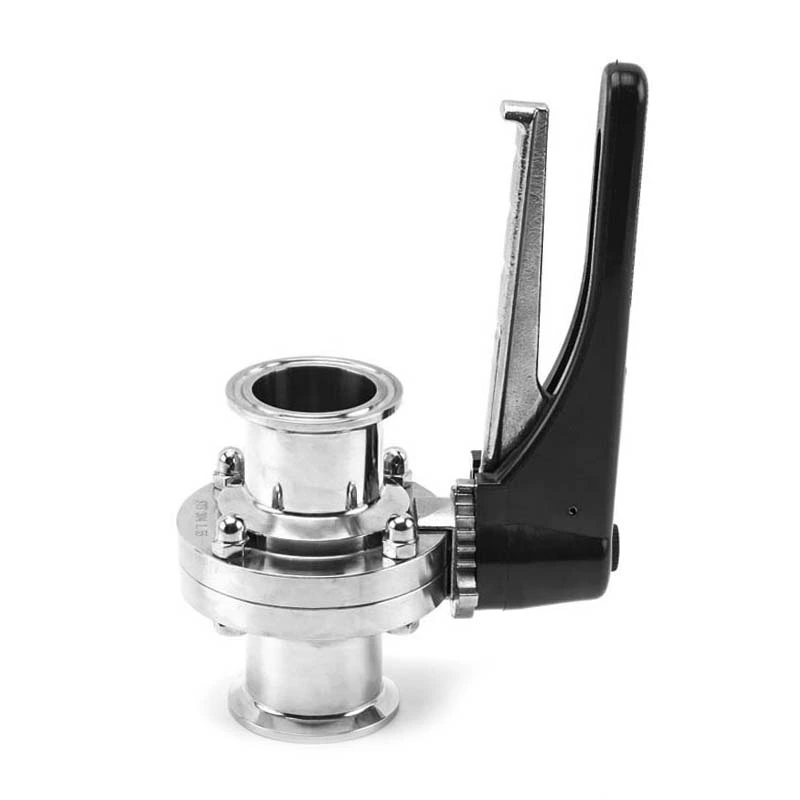

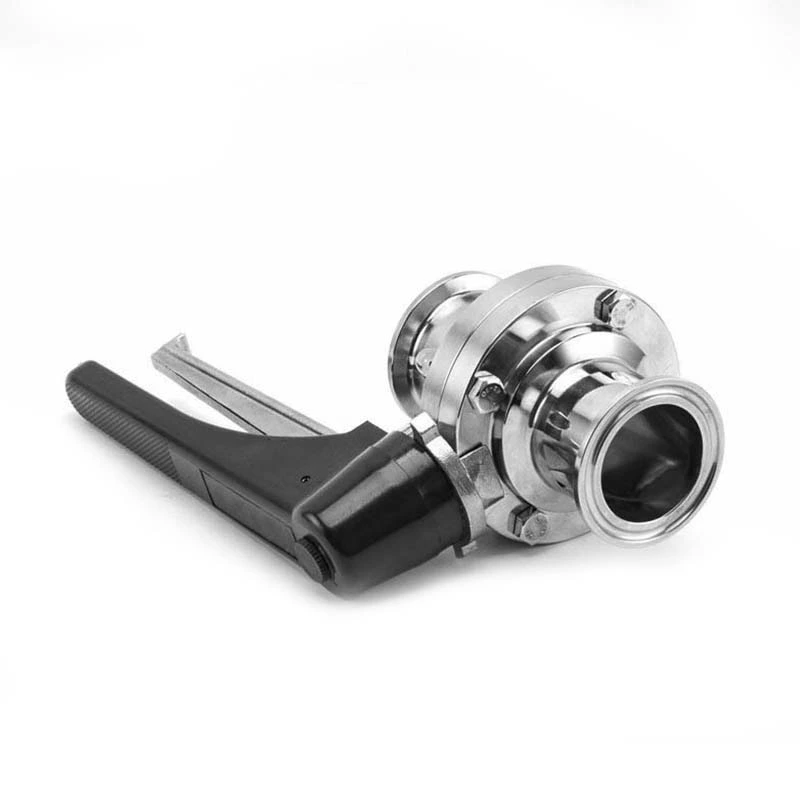

Sanitary Stainless Steel IDF Tri Clamp Clamped Butterfly Valve With Plastic Gripper Handle

Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual

Sanitary Stainless Steel Tri-Clamp Butterfly Valve

  • J&O Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.

  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.

  • All of the products have been 100% press tested before shipping.

  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

  • Tri-clamp connections allow for easy field disassembly for clean-in-place processes.

Technical Data

Body Material (Wetted Parts) AISI 304 or 316L (1.4301 / 1.4404)
Other Steel Parts AISI 304
Seat Options Buna-N (NBR), Silicone, EPDM or Viton (FKM)
Max. Working Pressure 145psi (10bar) for DN25/1″-DN100/4″
116psi (8bar) for DN125/5″-DN150/6″
73psi (5bar) for DN200/8″-DN300/12″
Normal Working Temperature Range Buna-N (NBR)  -4°F to 185°F (-20°C to 85°C)
EPDM -4°F to 248°F (-20°C to 120°C)
SILICONE -4°F to 302°F (-20°C to 150°C)
VITON (FKM)  14°F to 356°F (-10°C to 180°C)
Inside Finish Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
Outside Finish Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
End Connections Butt-welded, Tri-clamp, Male and Female threaded, Flanged
Handle Types 4-position Pull handle; multi-position handle with plastic cover or stainless steel

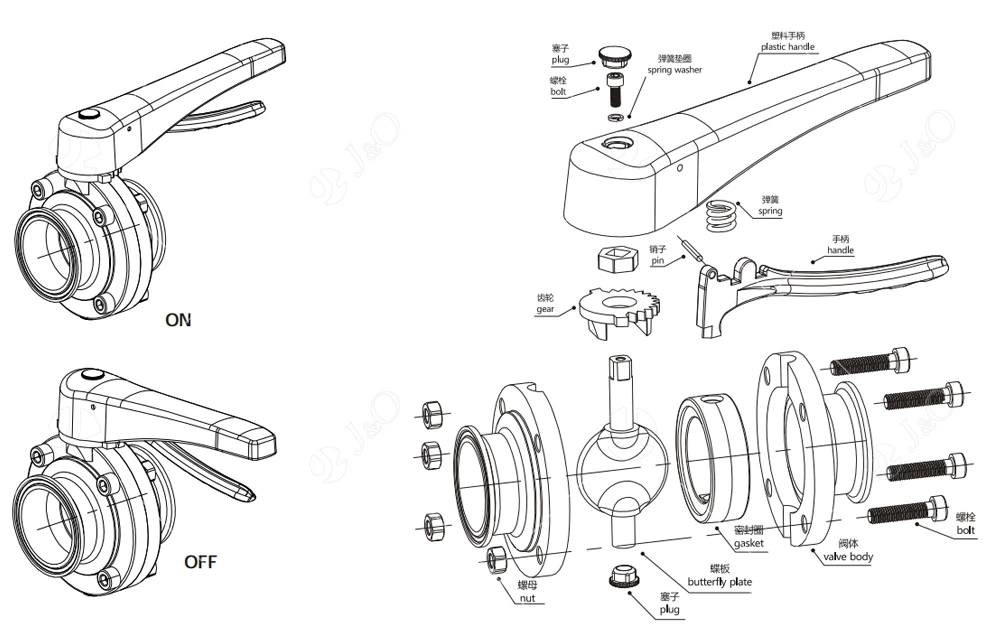

Product Parameter

Sanitary Stainless Steel IDF Tri Clamp Clamped Butterfly Valve With Plastic Gripper Handle

Package

Sanitary Stainless Steel IDF Tri Clamp Clamped Butterfly Valve With Plastic Gripper Handle
