Sanitiary Manul Butterfuly Valve

Sanitary butterfly valves are used to make a fluid start or stop flowing through a section of pipe for these devices in applications such as food and beverage processing, personal care, biomedical, or pharmaceutical industries.
Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped/ Weld / Thread
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual
Download Catalog:
J&O SANITARY BUTTERFLY VALVE 1-4.pdf
Enquiry
Sanitiary Manul Butterfuly Valve
Sanitiary Manul Butterfuly Valve Sanitiary Manul Butterfuly Valve

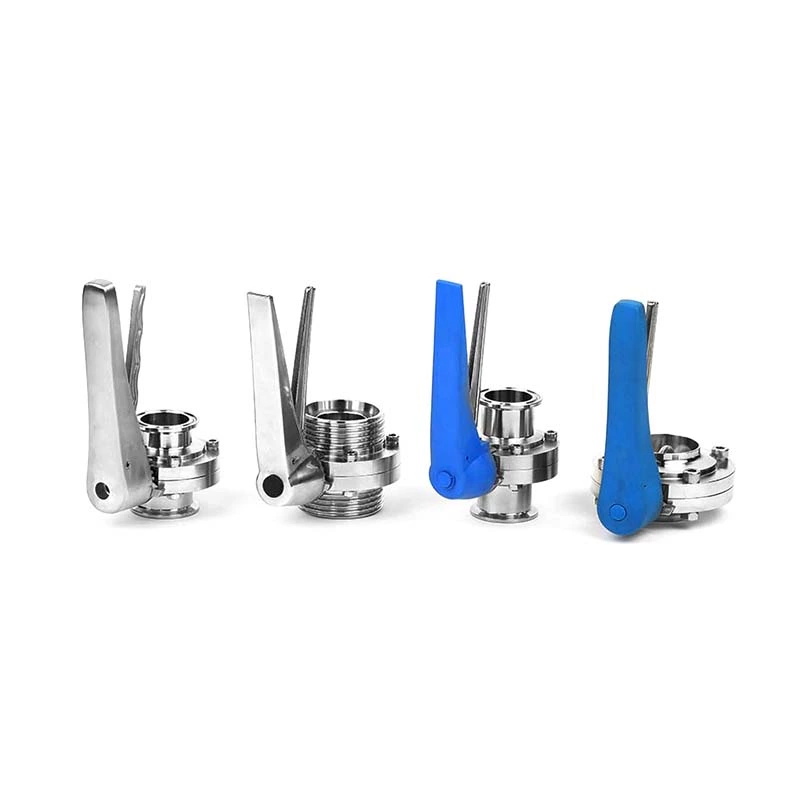

Sanitary Stainless Steel Butterfly Valve With Gripper Handle

  • Our Manual Sanitary Butterfly Valve including Sanitary Welding Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve. For the handle, we have Stainless Steel Pull Handle, Plastic Gripper Handle and Stainless Steel Gripper Handle.

  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.

  • All of the products have been 100% press tested before shipping.

  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Technical Data

Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably  size: DN10-DN150,3/4"-4"
Availably connection: weld,thread,clamp
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Handle application: stainless steel pull handle
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

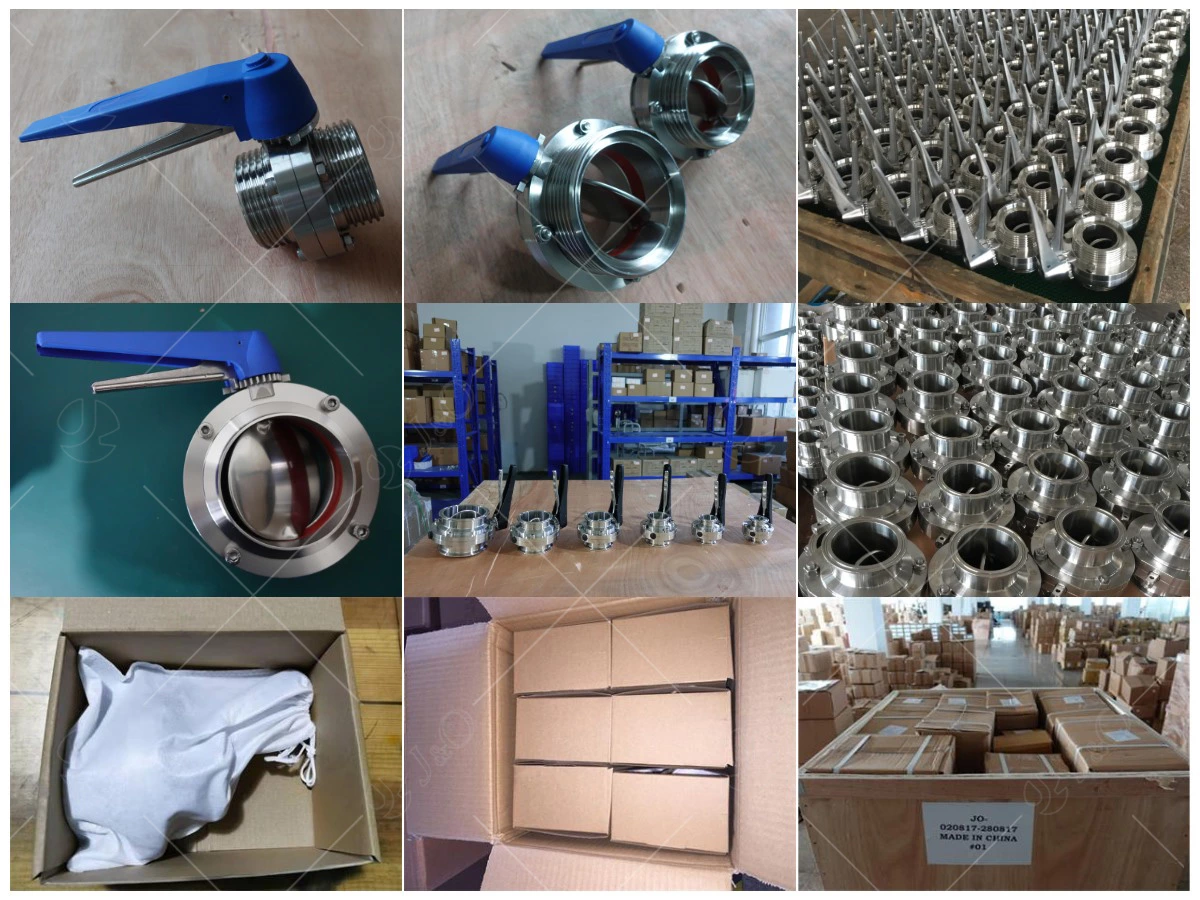

Product Pictures
