Hygienic Stainless Steel Pneumatic Clamped Diaphragm Valve

Brand:
J&O
Material:
SS316L
Connection:
Clamp
Gasket:
EPDM+PTFE/EPDM
Working Temperature:
-20°~+120°
Working Pressure:
0-10Bar
Operation:
Pneumatic
Payment:
T/T, L/C, Western Union

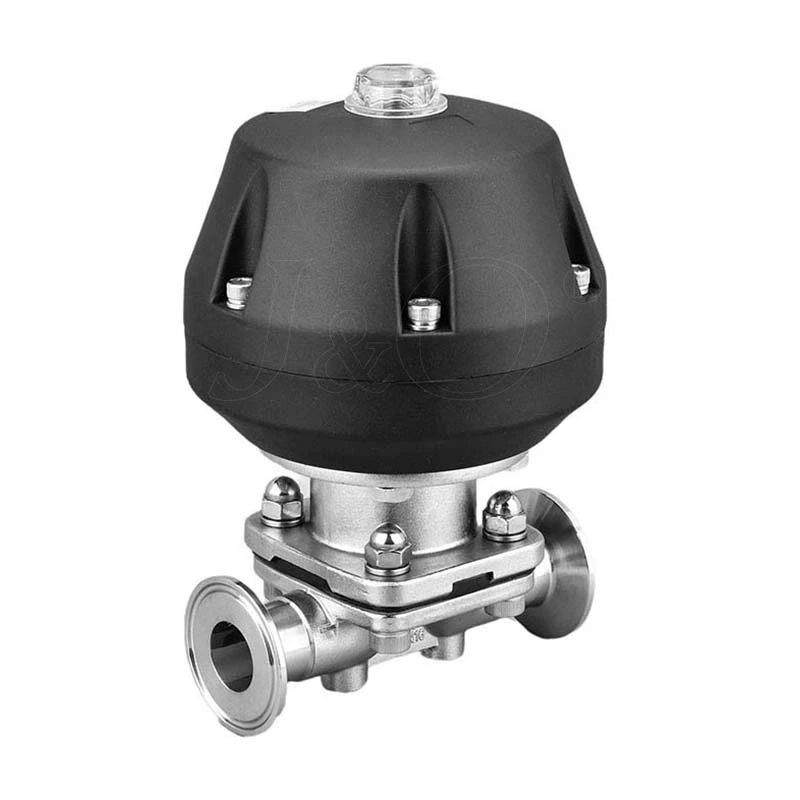

Hygienic Stainless Steel Clamped Pneumatic Diaphragm Valve

  • J&O sanitary pneumatic diaphragm valve, apply to biological pharmaceutical, biological vaccine, electronic semiconductor, pure water purification occasions. Actuator shell is made of high strength polyamide PA plastic material, can be feedback switch, positioner signals, control type can be optional.
  • The general state is closed, the elbow diaphragm is close to the inner cavity of the valve, closing the path of the pipeline.
  • Toggle the handwheel or drive the actuator to drive the valve stem upward, and the spherical diaphragm bends upward, so that the valve is in a conductive state, and the purpose of cleaning and opening can be achieved. The diaphragm separates the inner cavity of the lower valve body from the inner the cavity of the upper valve cover; so that the valve stem, valve core and other parts located at the upper part of the diaphragm are not corroded by the medium, the packing sealing structure is omitted, and no medium leakage occurs. The optimized valve body design allows the cleaning fluid to be drained completely without stagnation.
  • Regarding diaphragm, combinating EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13℉ (-25℃), excellent heat-resistance 482℉ (+250℃), tolerance to most chemicals, and excellent abrasion resistance to medium flow.

Technical Data

Valve Body Material: SS316L
Seal Material: EPDM+PTFE/ EPDM
Mex working pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-4", DN25-DN100
Availably connection: Clamp
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic

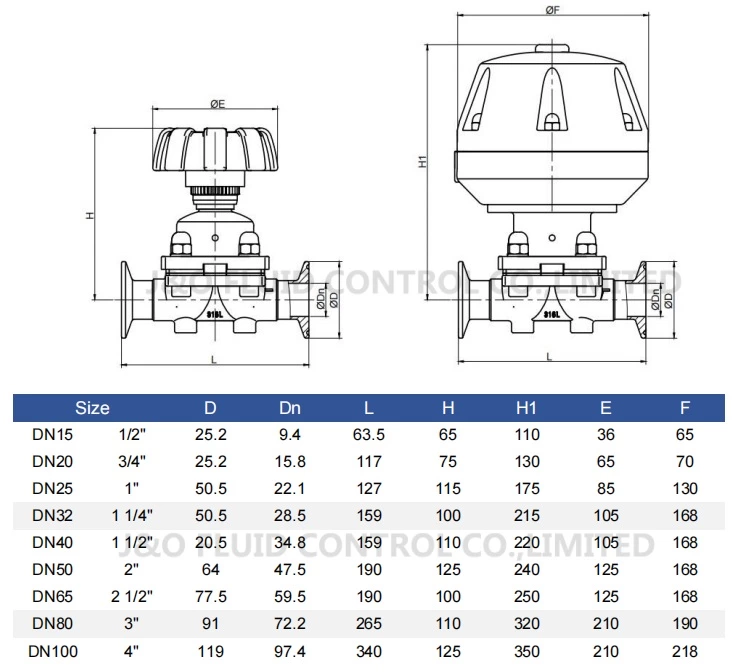

Product Parameter

Hygienic Stainless Steel Pneumatic Clamped Diaphragm Valve

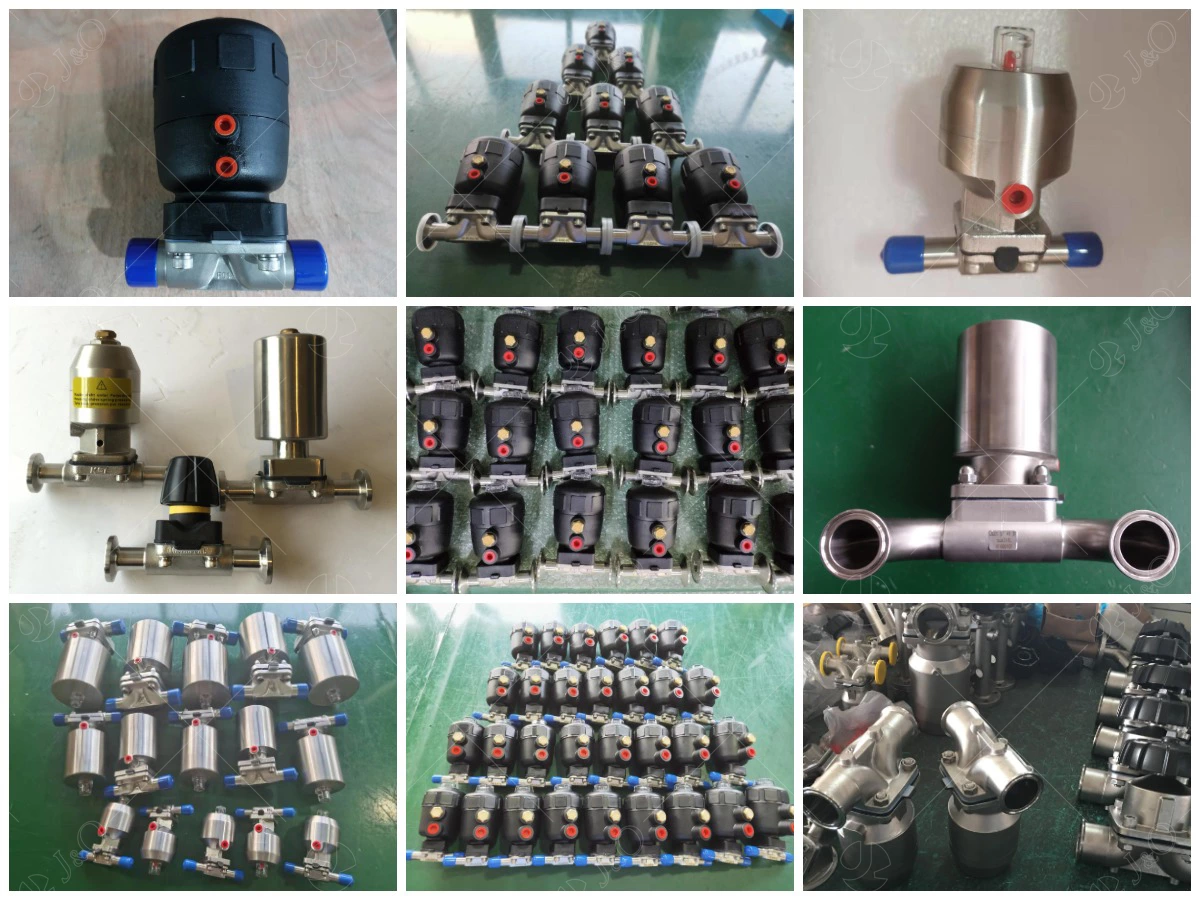

Product Pictures

Hygienic Stainless Steel Pneumatic Clamped Diaphragm Valve
