Sanitary Stainless Steel Pneumatic Clamp Tank Bottom Diaphragm Valve

Sanitary Stainless Steel Clamp Pneumatic Tank Bottom Diaphragm Valve Tank bottom valve is mainly used in pharmaceutical,food and beverage and cosmetics industry hygiene requirements. Its inner surface

Model:
JOV-DHTBPS-22
Brand:
J&O
Material:
SS316L
Connection:
Clamped
Gasket:
EPDM+PTFE
Working Temperature:
-20°~+120°
Working Pressure:
0-10Bar
Operation:
Pneumatic
Enquiry
Pneumatic Tank Bottom Diaphragm Valve
Pneumatic Tank Bottom Diaphragm Valve Tank Bottom Diaphragm Valve

Sanitary Stainless Steel Clamp Pneumatic Tank Bottom Diaphragm Valve

Tank bottom valve is mainly used in pharmaceutical,food and beverage and cosmetics industry hygiene requirements. Its inner surface is smooth,no dead zone,preventing the retention medium,the process to avoid potential contamination. Tank bottom valve has the same standard features and functions with diaphragm valve,using the same valve components,such as actuators,divide. Tank bottom valve is usually soldered directly to the bottom of the tank to be welded to the tank wall ,as the tank wall valve or sample valve.typical applications tank bottom discharge valve is used to achieve the jar material,emptying, sampling, cleaning, disinfectin,rinsing and blocking with downstrem processing.

Technical Data

Valve Body Material: SS316L
Seal Material: EPDM+PTFE/ EPDM
Mex working pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-4", DN25-DN100
Availably connection: Clamp
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic

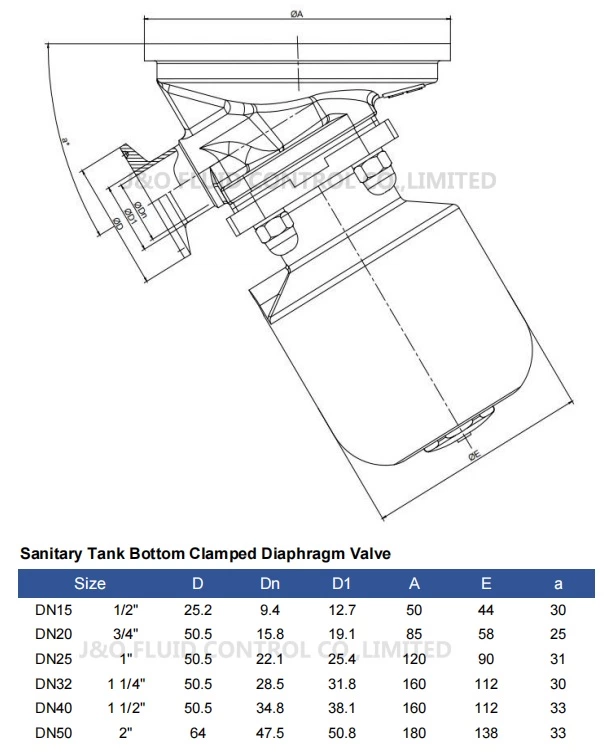

Product Parameter

Product Pictures

If you have any enquiry about quotation or cooperation,please feel free to email us at inquiry@jo-pv.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
