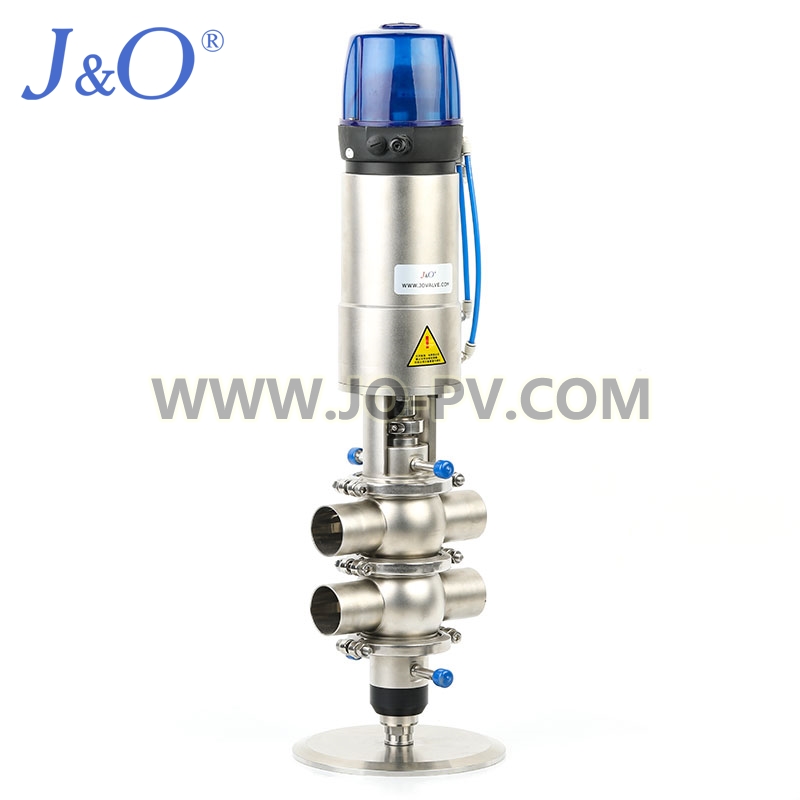

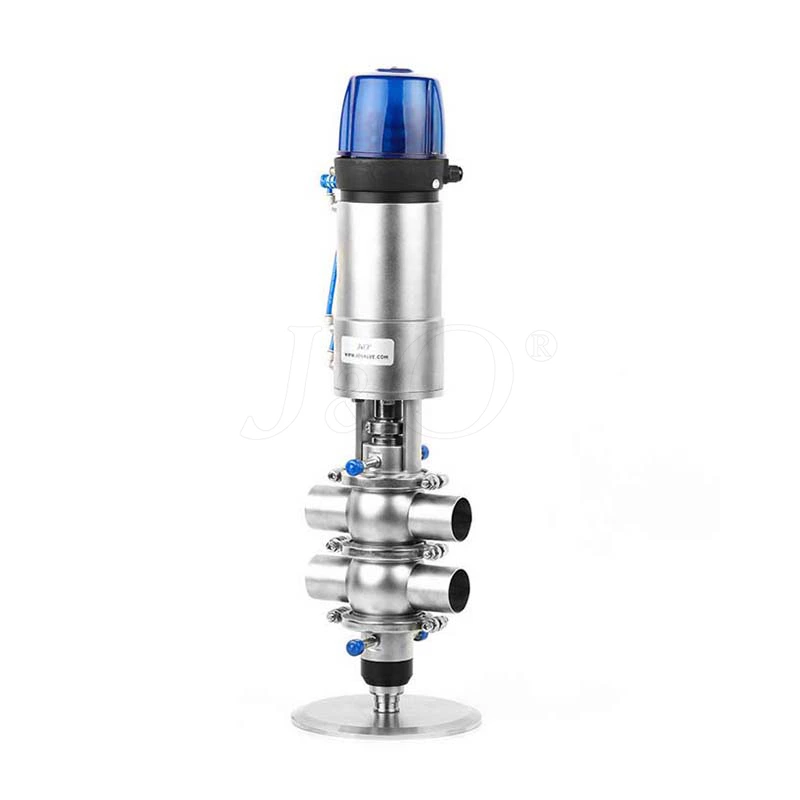

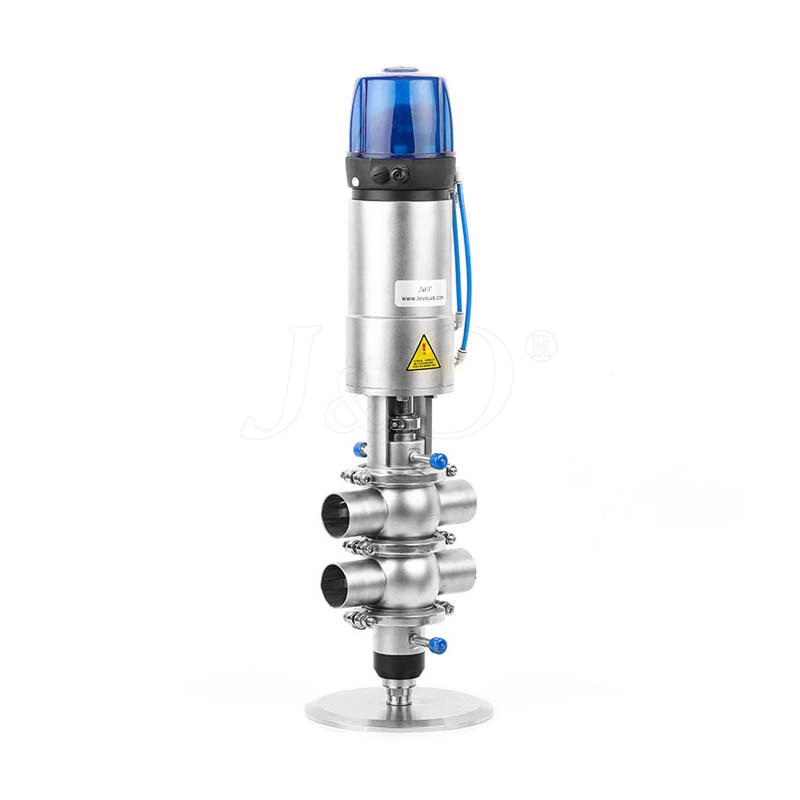

Double Seal Valve
When the valve is opened, the fluid can pass from one body to the other.Once the valve is closed, the double seat creates an annular chamber that isolates the dodies sealing them with double seals. It allows a CIP operation providing an interface between the two fluids, preventing the possibility of product contamination.
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Welded
- Gasket:
- EPDM,FDA177.2600
- Working Temperature:
- 120 degree C
- Working Pressure:
- 10Bar

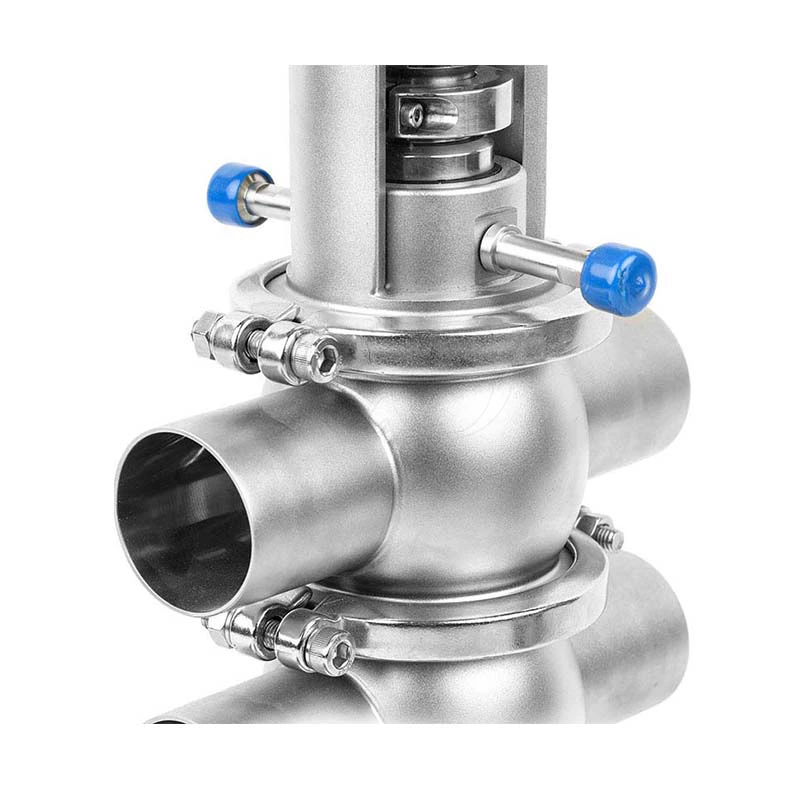

Sanitary Pneumatic Double Seat Clamped Mixproof Valve
-
When the valve is opened, the fluid can pass from one body to the other.
-
Once the valve is closed, the double seat creates an annular chamber that isolates the dodies sealing them with double seals. It allows a CIP operation providing an interface between the two fluids, preventing the possibility of product contamination.
-
Due to the leakage detector any leak of a seat seal is detected by the apprearance of liquid at the bottom of the valve. The zone between the poppets and the seats is cleaned by pulsing the individual poppets when the specific line is being cleaned, the poppets are fractionally stroked by two additional limited movement pistons located within the main actuator.
-
Applied for production of beer, beverage, food, pharmacy, etc, such as, syrup, yogurt, portridge.
Technical Data
| Valve Body Material: | SS304 ,SS316L |
| Seal Material: | EPDM,FDA177.2600 |
| Max Working Pressure: | 10Bar |
| Max.Working Temperature: | 120 degree C |
| Size: | 2'-4',DN50-DN100 |
| Connection: | Thread,Weld,Clamp |
| Standard: | DIN,SMS,RJT,3A |
| Operated: | Pneumatic,C-Top, Process controller |
| Certificate: | FDA,ISO9001-2008 |

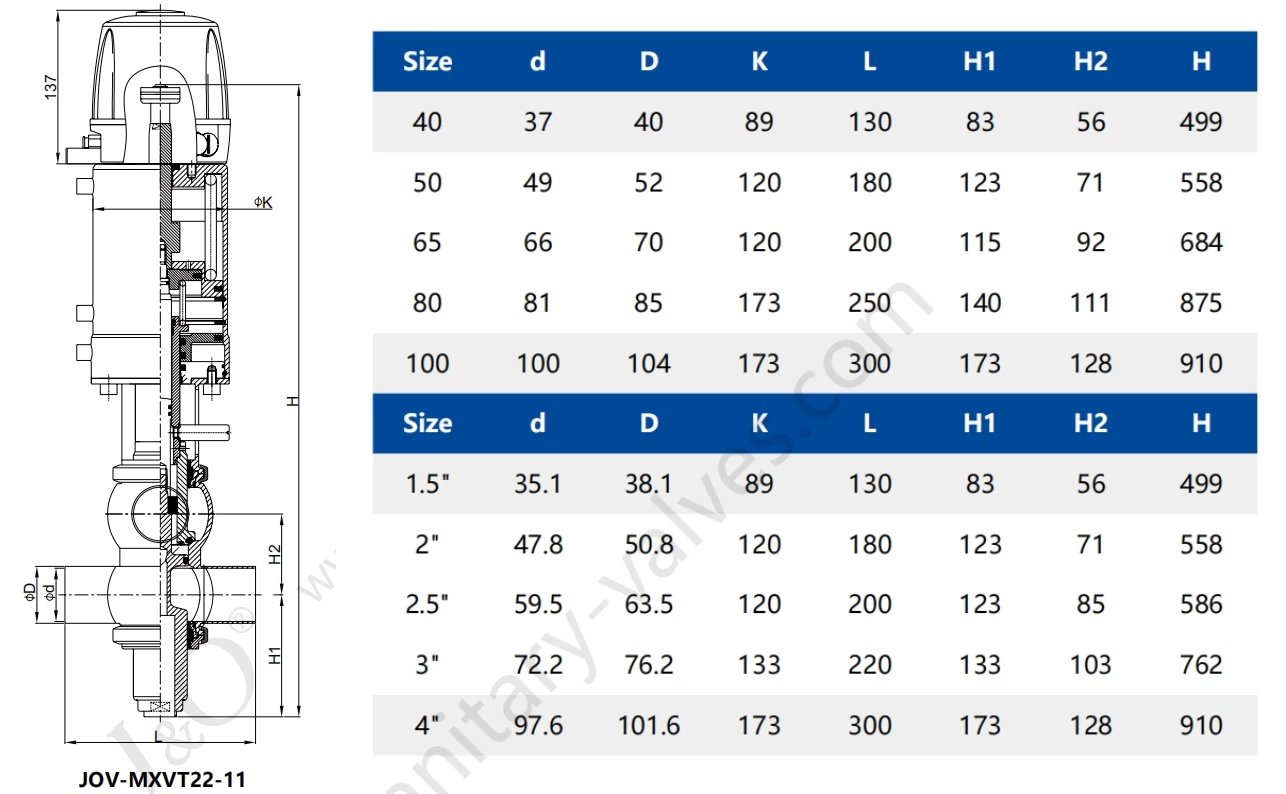

Product Parameter

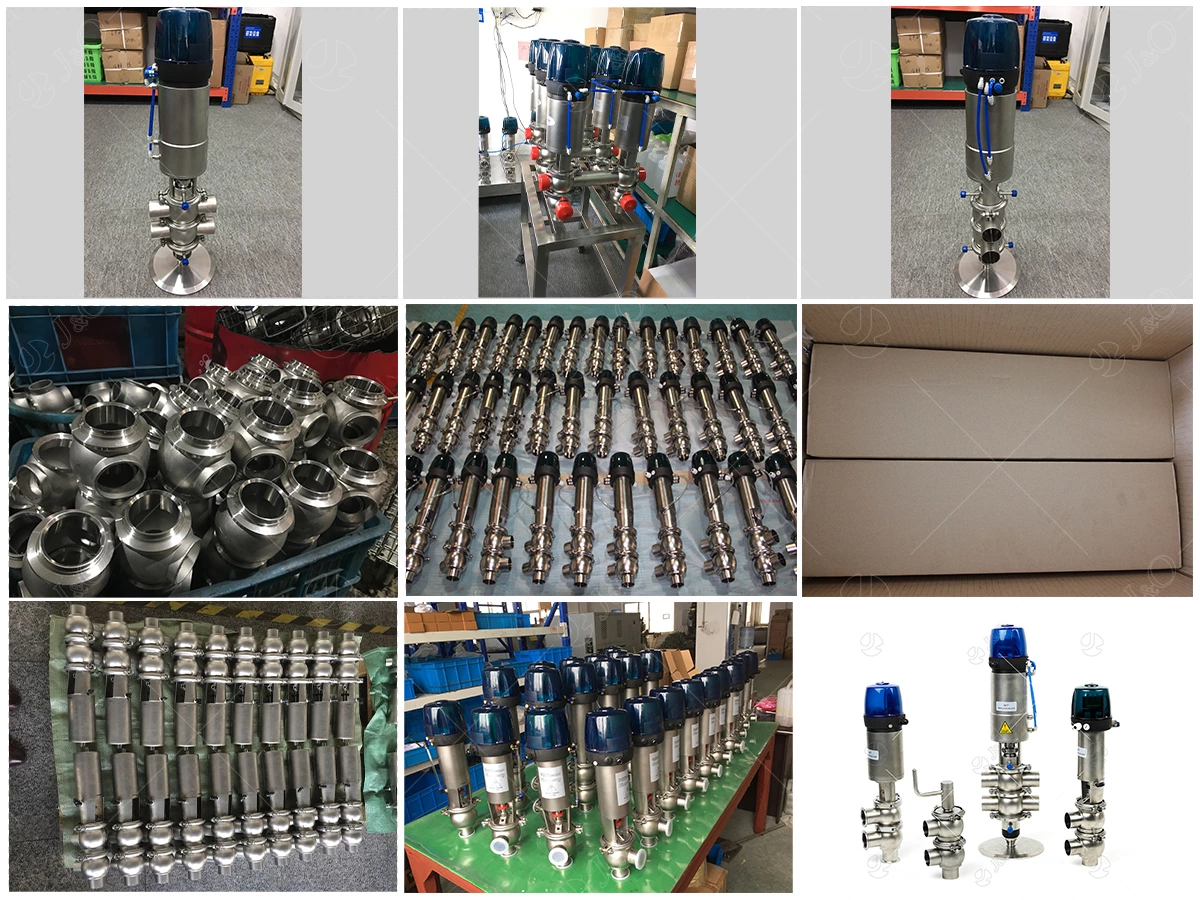

Product Pictures
