J&O Fluid Control Co., Limited.

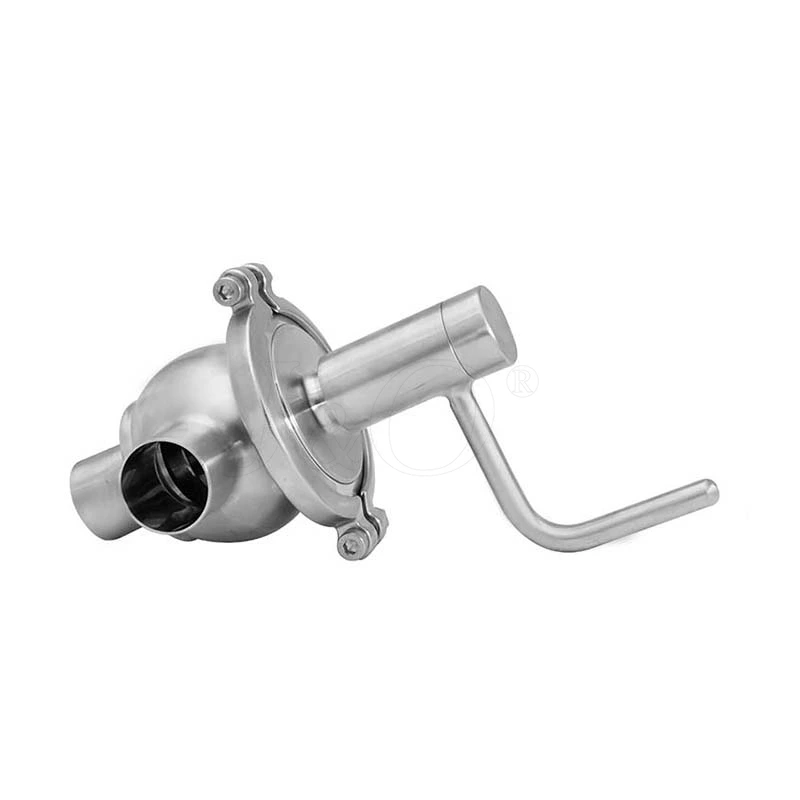

Manual Sanitary Divert Valve L

The manual cut-off reversing valve series control by handle, also reach the purpose of medium reversing or stop at the end.

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Welded
Gasket:
PTFE, EPDM, NBR
Working Temperature:
120 degree C
Working Pressure:
10Bar
Operation:
Manual

Staninless Steel Sanitary Manual L Type Reversing Valve

  • Our Sanitary Divert Valve including Hygienic Welding Divert Valve, Sanitary Tri Clover Reversing Valve, Hygienic Male Reversing Valve.

  • The series of valve are major let the medium reach the purpose of reversing or end stop, because the good sealablity and cleanability, they are extensively use to different sanitary industry areas.

  • The series of pneumatic cut-off reversing valve change the energy which process by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of seal elements, which can control the switch for inlet of pipeline, finally realise the purpose of medium reversing or stop.

  • The manual cut-off reversing valve series control by handle, also reach the purpose of medium reversing or stop at the end.

Technical Data

Material quality AISI304, AISI304L, AISI316, AISI316
Size 1"-4" or DN25-DN100
Standards DIN,SMS,ISO,IDF,RJT,3A,etc
Connection End Threaded, Welded, Clamped

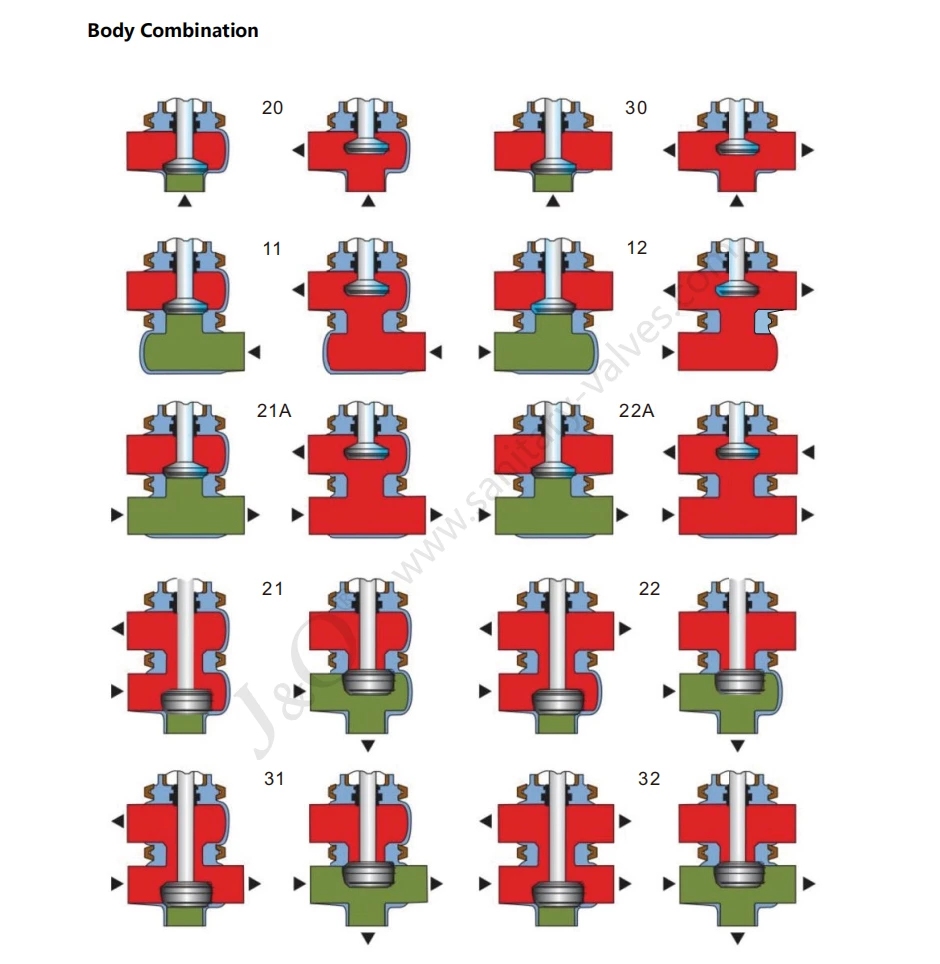

Types L,T,L/L,L/T, T/L,T/T

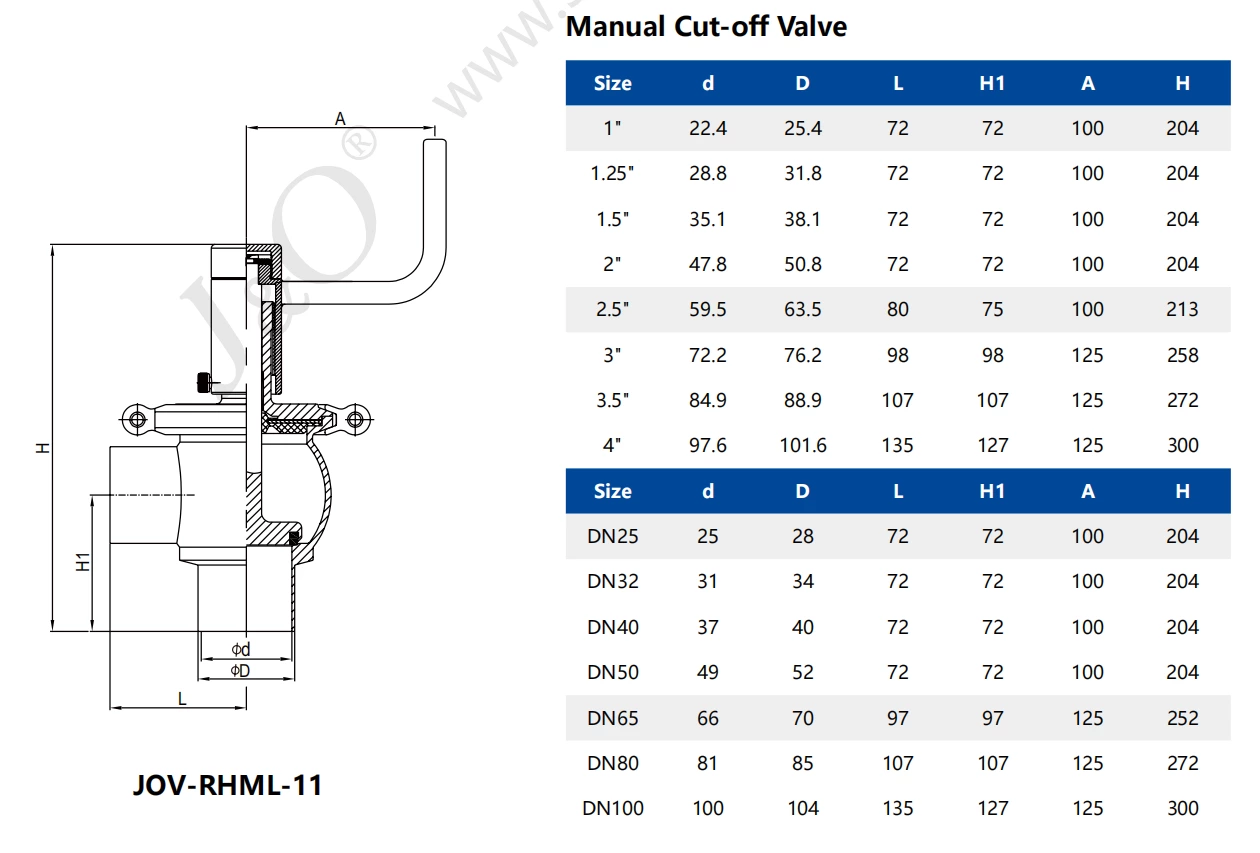

Product Parameter

Manual Sanitary Divert Valve L

Manual Sanitary Divert Valve L

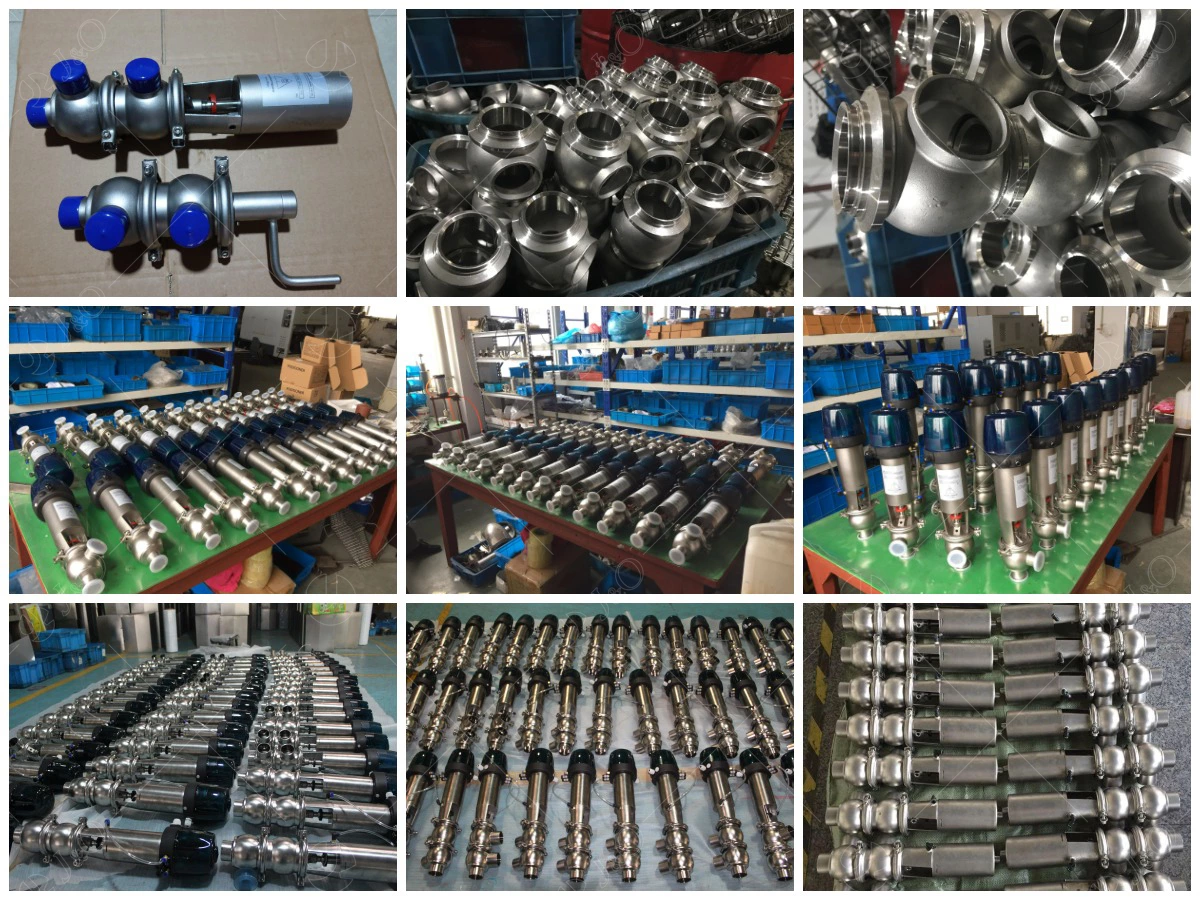

Product Pictures

Manual Sanitary Divert Valve L
