J&O Fluid Control Co., Limited.

Sanitary Stainless Steel Oval Manhole With Sight Glass

Sanitary Stainless Steel Oval Manhole With Sight Glass Our Sanitary Stainless Steel Manhole including Hygienic Circular Manway Cover, Sanitary Oval Manhole, Hygienic Square Manhole, Sanitary Pressure

Brand:
J&O
Material:
SS304/SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Code:
JOF-MHOP204

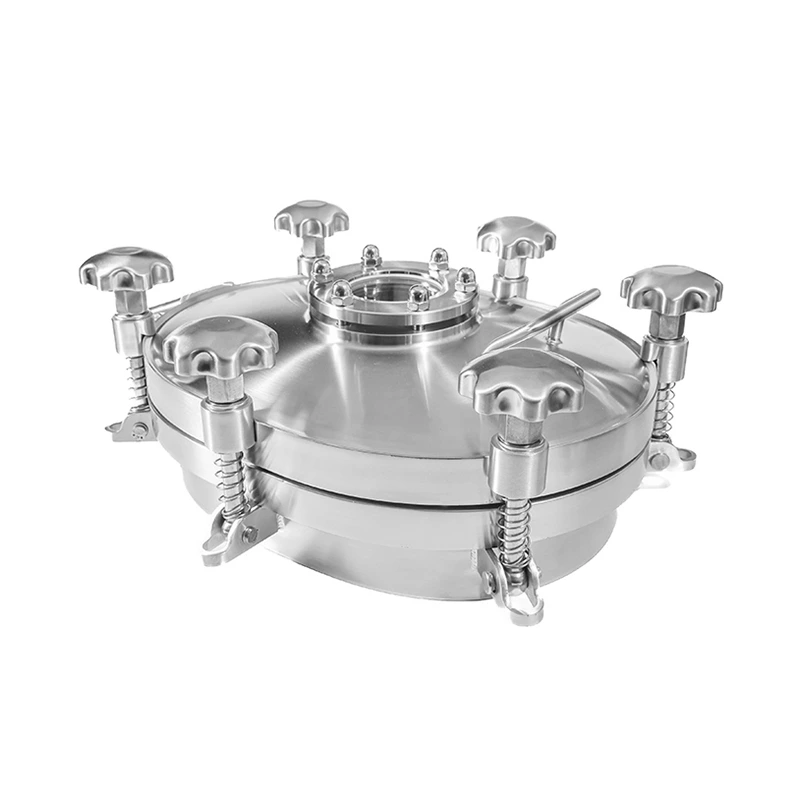

Sanitary Stainless Steel Oval Manhole With Sight Glass

  • Our Sanitary Stainless Steel Manhole including Hygienic Circular Manway Cover, Sanitary Oval Manhole, Hygienic Square Manhole, Sanitary Pressure Manway, Sanitary Stainless Steel Manhole with Sight Glass.
  • Manhole cover is mainly used for pressure vessel in the fields of food, beverage, chemical, etc.
  • All Stainless steel manhole cover are produced in both AISI 304L and AISI 316L stainless steel and can be supplied with the gasket in several different food grade materials (natural rubber, NBR, EPDM, silicone, viton & FEP/PFA-encapsulated).

Technical Data

Material: SS304 or SS316L
Height: 90mm
Thickness: 4mm
Handle Material : Stainless steel and plastic
Handle number: 4-8 pieces
Pressure Range: 0.1-0.3Mpa (higher pressure can be customized on request)
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Carton box,plywood case or customized

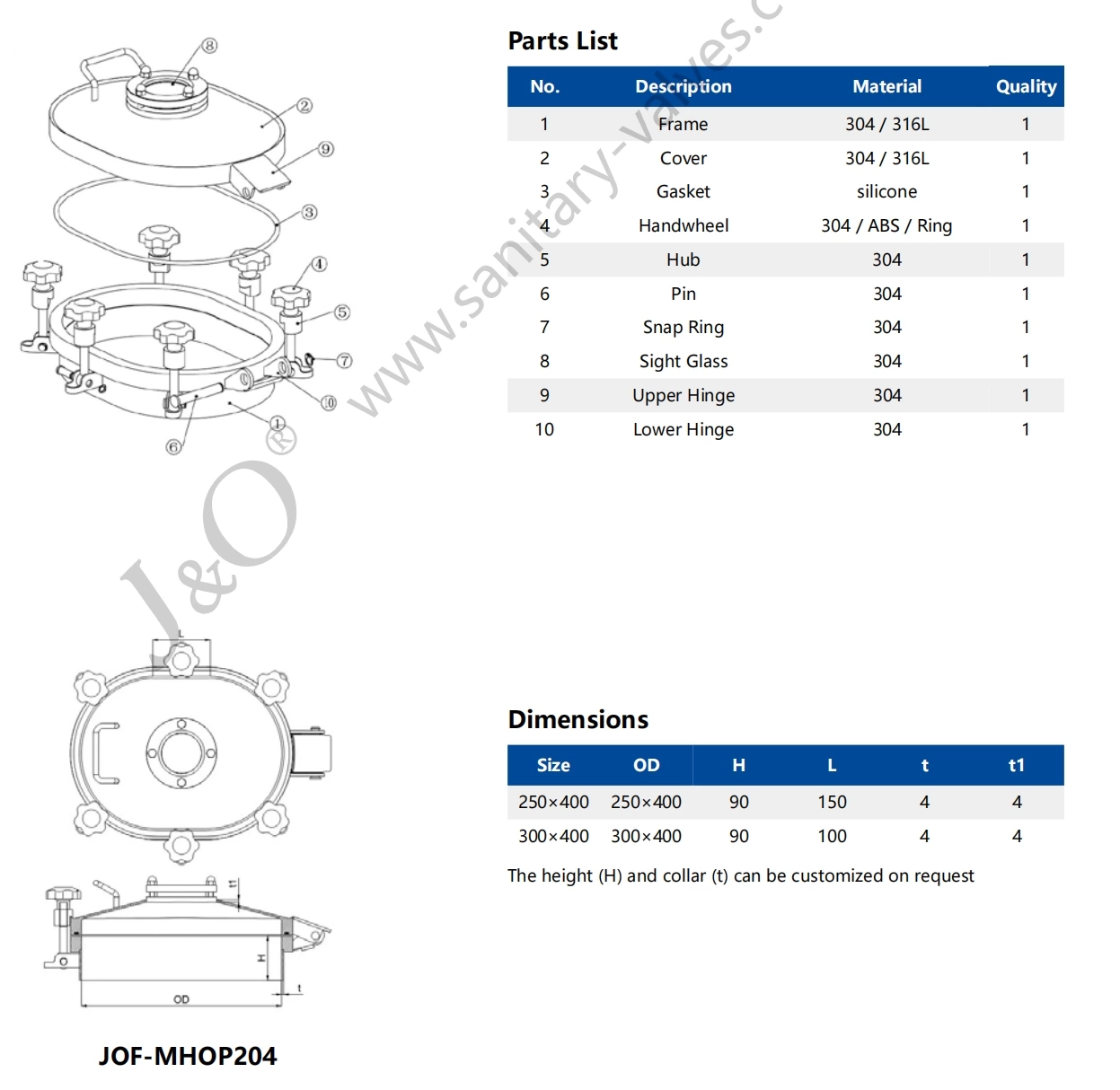

Product Parameter

Sanitary Stainless Steel Oval Manhole With Sight Glass

Manhole cover is mainly used for pressure vessel in the fields of food, beverage, chemical, etc.
