J&O Fluid Control Co., Limited.

Sanitary Stainless Steel Round Manhole With Ribbed

Compared with the ordinary atmospheric manholes, the cover design of the sanitary ribbed manholes is unique.

Brand:
J&O
Material:
SS304/SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Code:
JOF-MHR002
Operation:
Manual

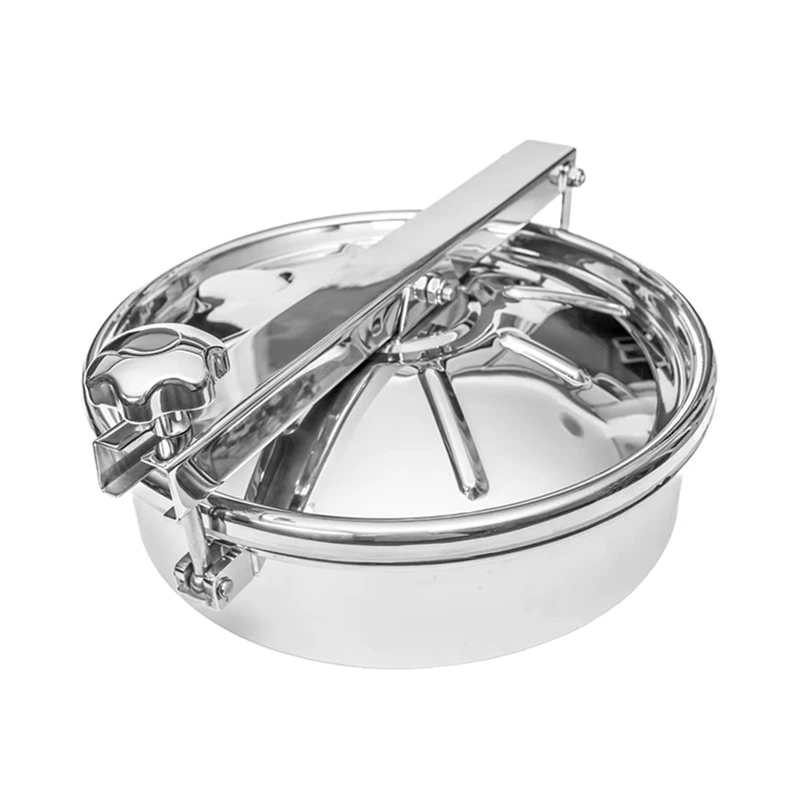

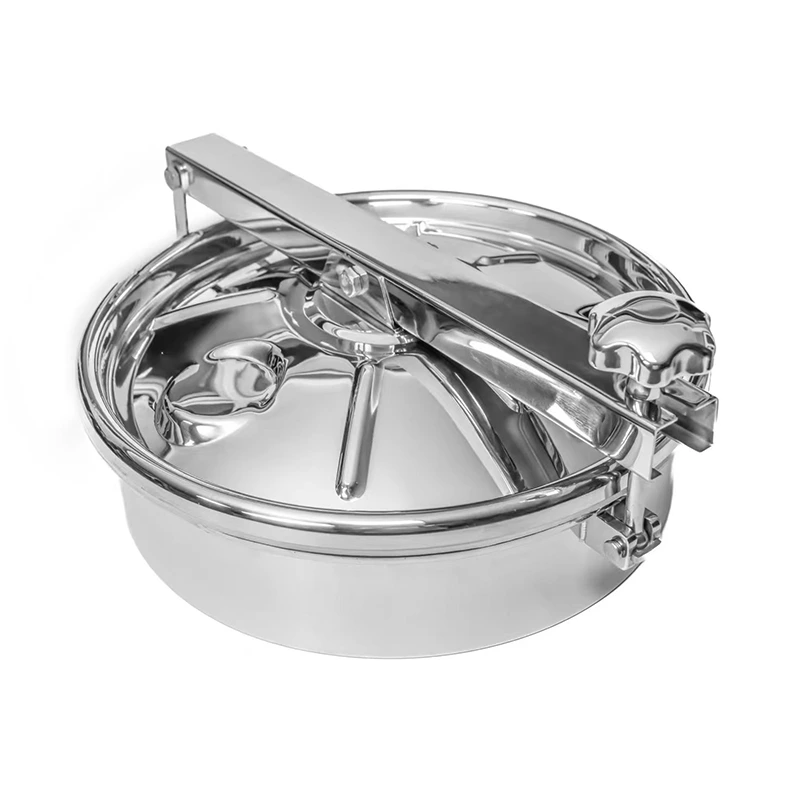

Sanitary Stainless Steel Round Manhole With Ribbed

  • Compared with the ordinary atmospheric manholes, the cover design of the sanitary ribbed manholes is unique.
  • The cover is easy to open, and it can be opened 180 degrees and rotated 360 degrees.
  • The sealing ring is installed on the cover, which can meet the hygienic requirements of food tanks and other ordinary tanks.
  • Due to limited pressure resistance, this manhole can only be installed on the top of the tank.

Technical Data

Material: SS304 or SS316L
Size: 400mm-500mm
Height: 100mm
Thickness: 2mm
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Carton box,plywood case or customized

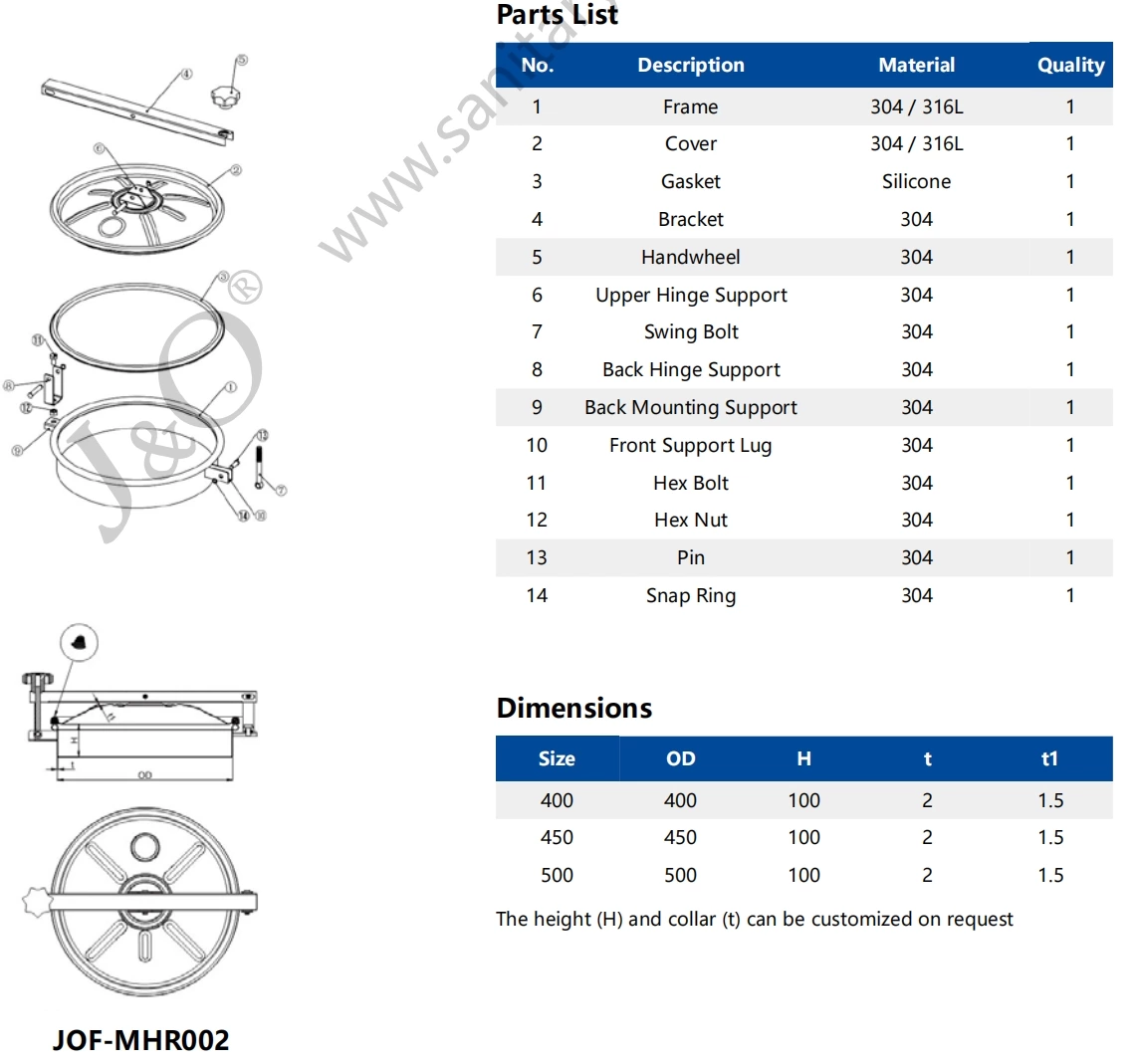

Product Parameter

Sanitary Stainless Steel Round Manhole With Ribbed
