Square Manhole Cover without Pressure

Manhole cover has oval, circular and rectangular designs, inward and outward opening executions, pressure and non-pressure rated models, as well as vacuum resistant designs.

Model:
JOF-MHS003
Brand:
J&O
Material:
SS304/SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Code:
JOF-MHS003
Download Catalog:
J&O SANITARY MANHOLE COVER 46-49.pdf
Enquiry
Square Manhole Cover without Pressure

Sanitary Stainless Steel Square Manhole

  • We manufacture Hygienic Round Manway Cover, Sanitary Oval Manhole Cover, Hygienic Square Manhole, Sanitary Pressure Manway, Sanitary Stainless Steel Manhole with Sight Glass.

  • Manhole cover is mainly used for pressure vessel in the fields of food, beverage, chemical, etc.

  • All Stainless steel manhole cover are produced in both AISI 304L and AISI 316L stainless steel and can be supplied with the gasket in several different food grade materials (natural rubber, NBR, EPDM, silicone, viton & FEP/PFA-encapsulated).

Technical Data

Material: SS304 or SS316L
Standard: 3A, SMS, DIN, RJT, IDF
Size: 8"-24" (200mm-600mm)
Height: 100mm
Thickness: 3mm
Handle Material : Stainless steel and plastic
Handle number: 4-6 pieces
Type: With sight glass or without.
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finishing: Ra≤0.8
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Carton box,plywood case or customized

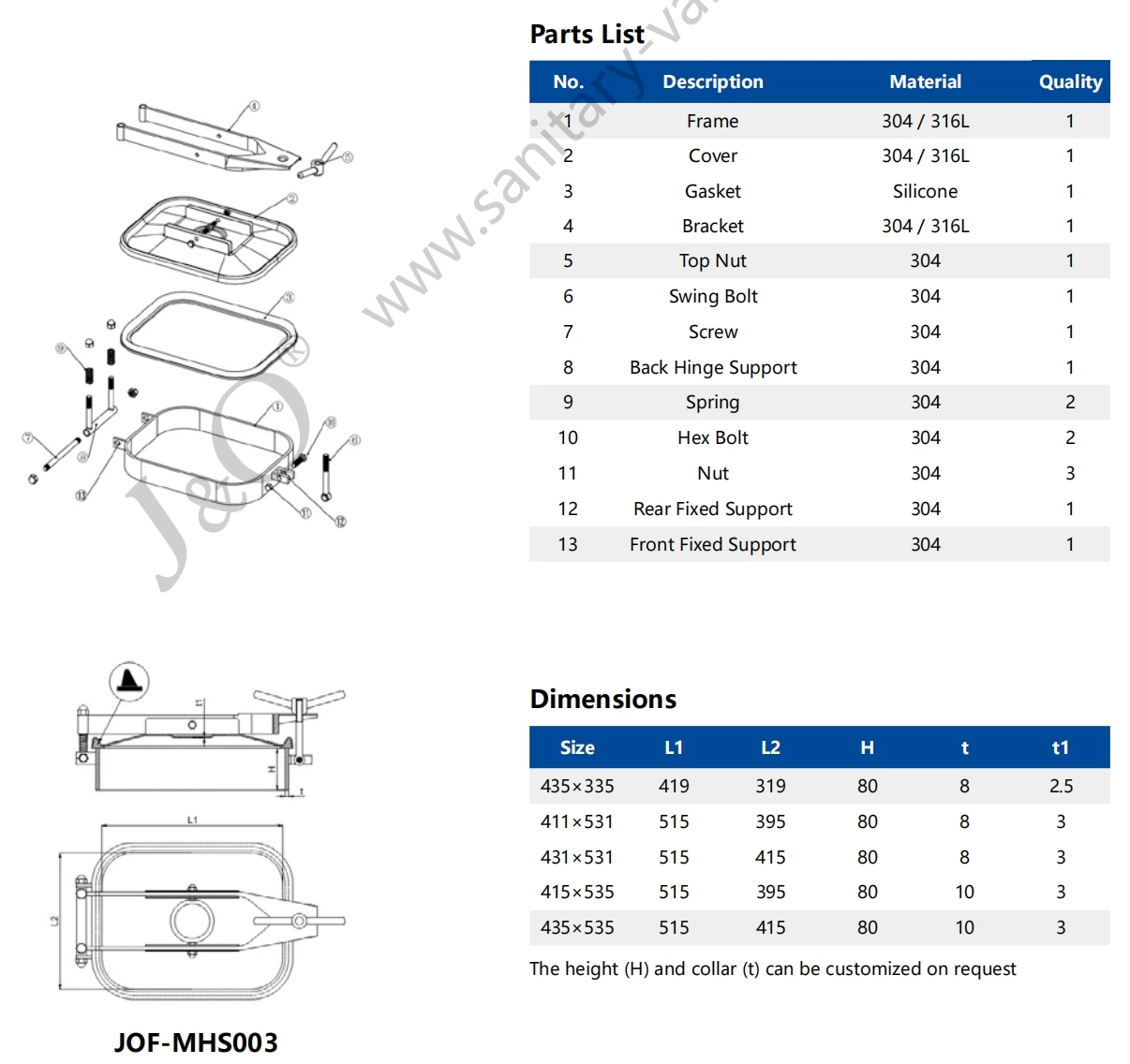

Product Parameter

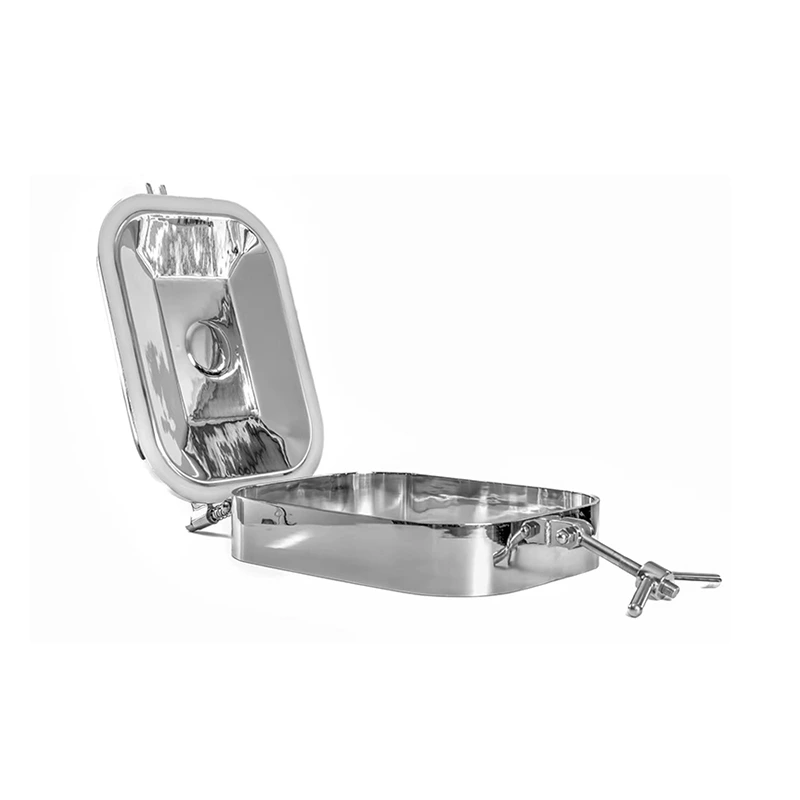

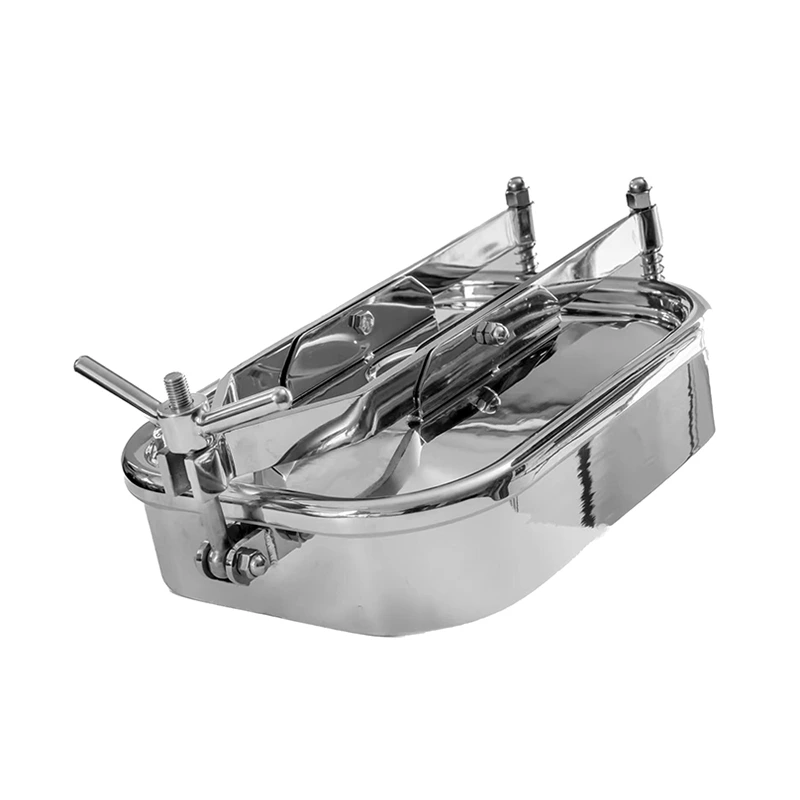

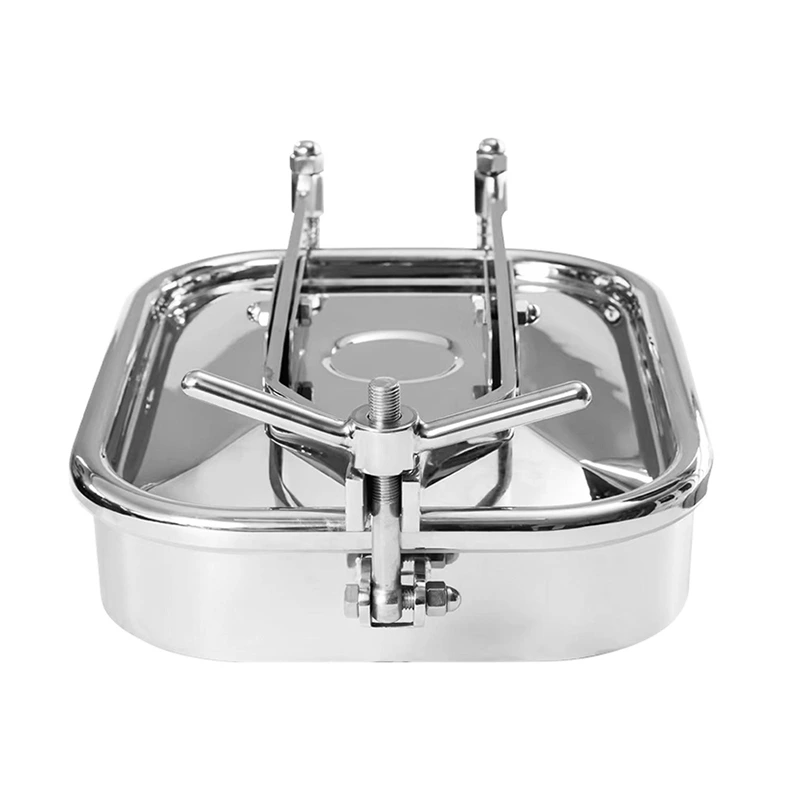

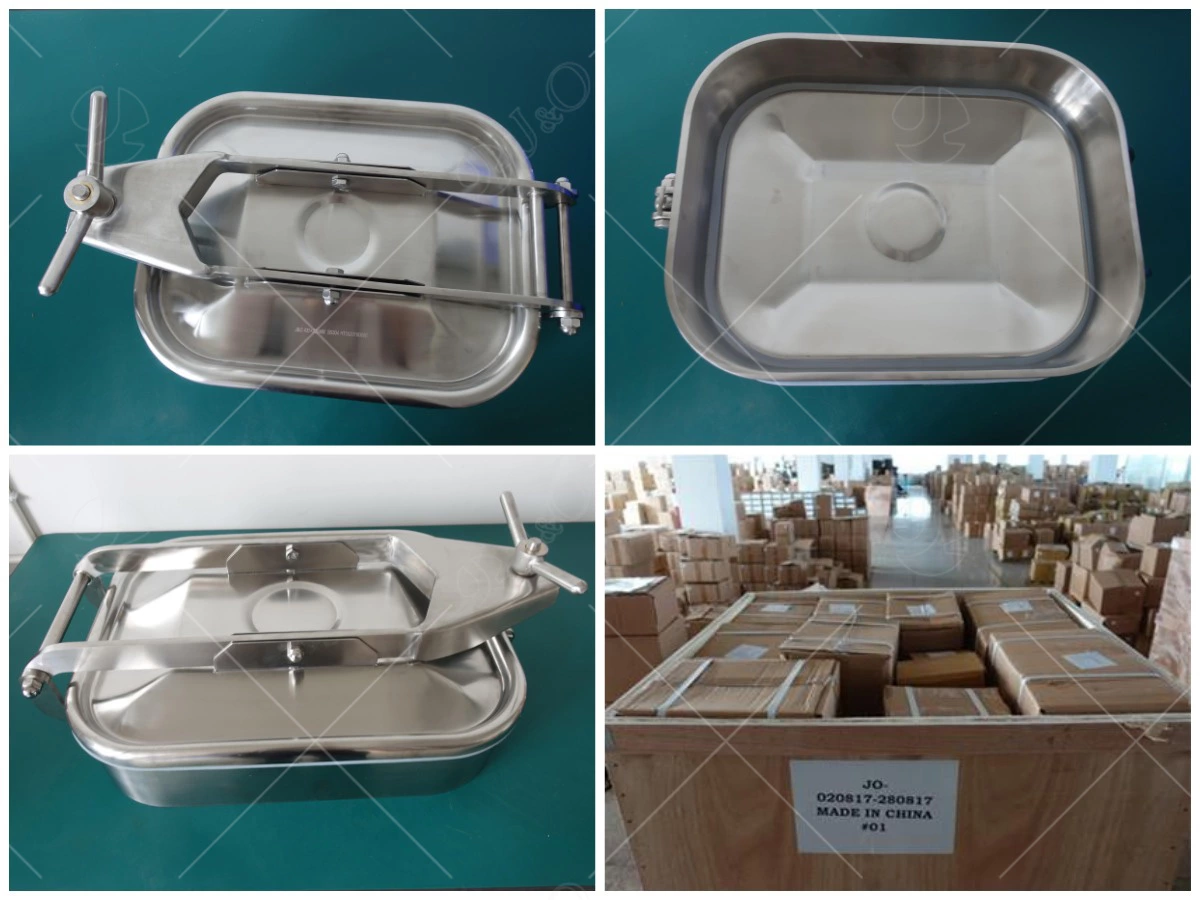

Product Pictures
