Sanitary Din Union

DIN unions comprise of a round slotted nut, weld male, weld liner and gasket.
Model:
JOU-DHSU
Brand:
J&O
Material:
SS304 / SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~+120°
Working Pressure:
0-10Bar
Download Catalog:
Sanitary DIN union.pdf
Enquiry
Sanitary Din Union
Sanitary Din Union Sanitary Din Union Sanitary Din Union Sanitary Din Union Sanitary Din Union Sanitary Din Union

Sanitary Stainless Steel DIN Short Union

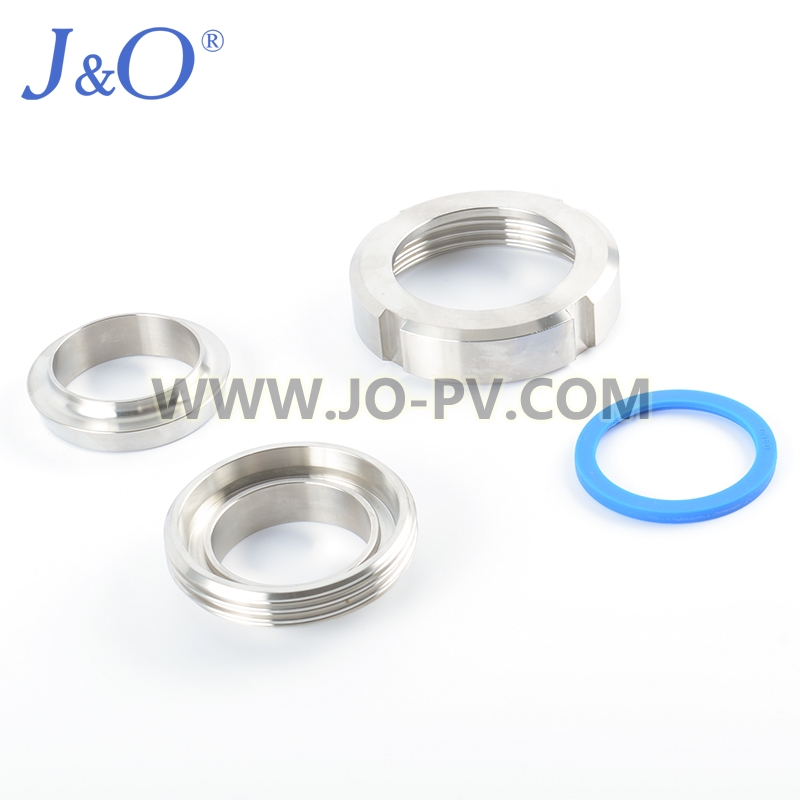

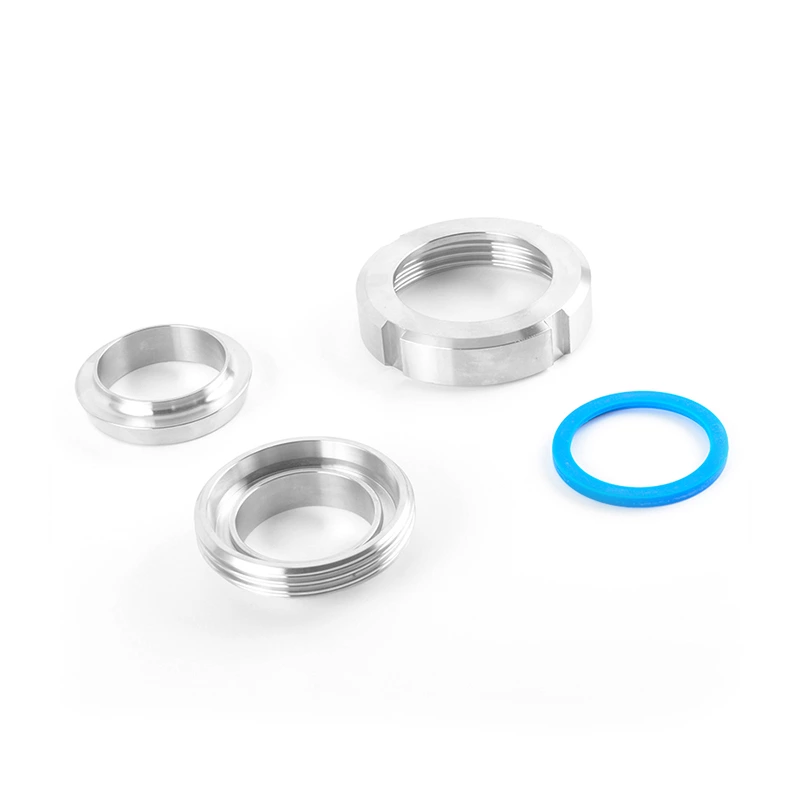

  • The Sanitary DIN complete Union including four parts, DIN Welding Male, DIN Welding Liner, DIN Union Gasket, DIN Nut.

  • It is widely applied to many fields, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

  • It is suitable for flexible and easy maintenance.

  • It is especially suited for processes where the load on seals is extra high, where easy control and replacement of seals is necessary and where optimal cleaning is required.

Technical Data

Material: SS304/SS316L
Seal Material: Silicone/EPDM/FKM/NBR
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: DN15-DN150
Availably standard: DIN

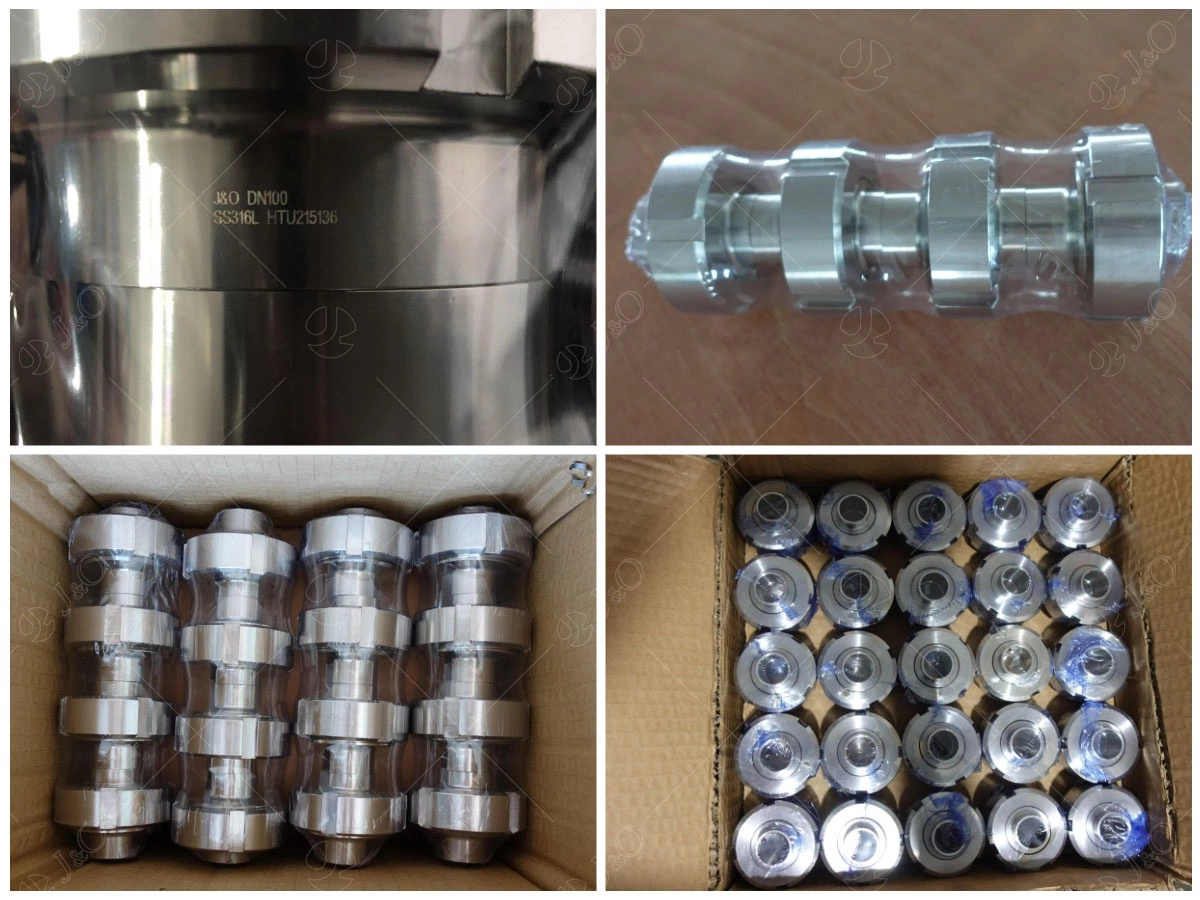

Product Pictures
