J&O Fluid Control Co., Limited.

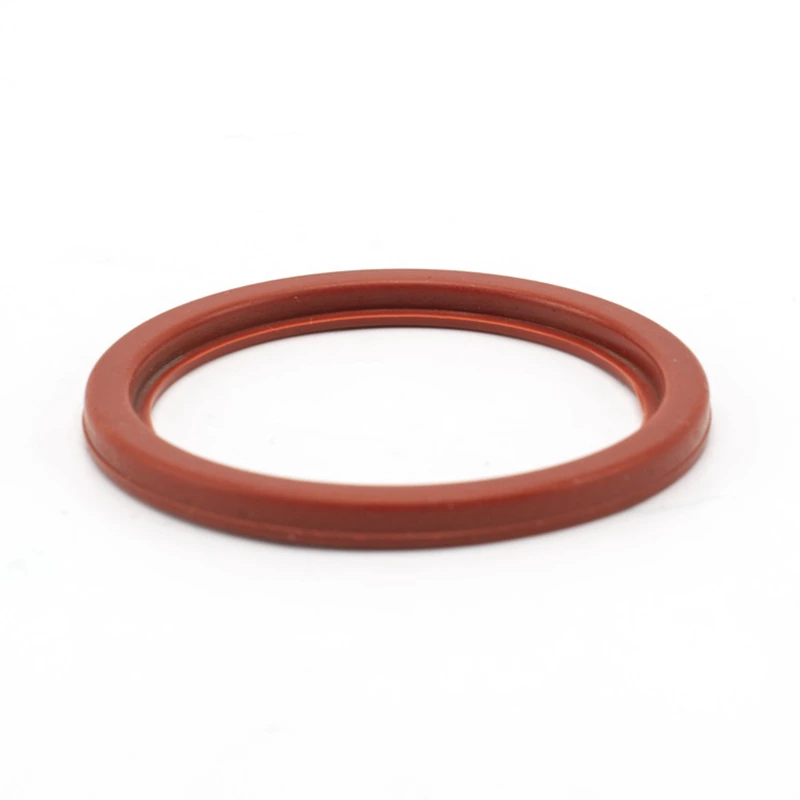

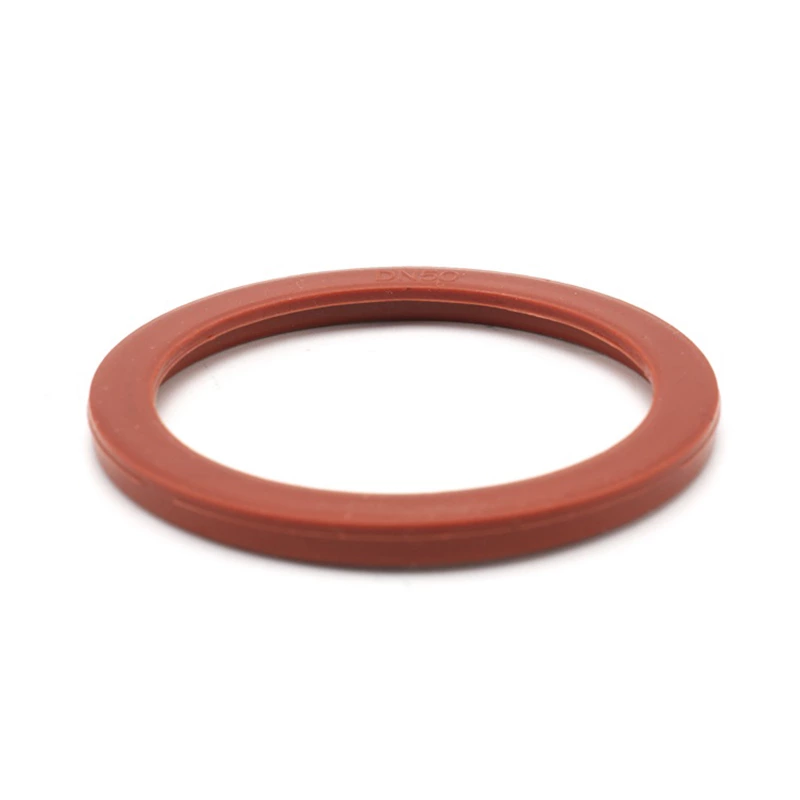

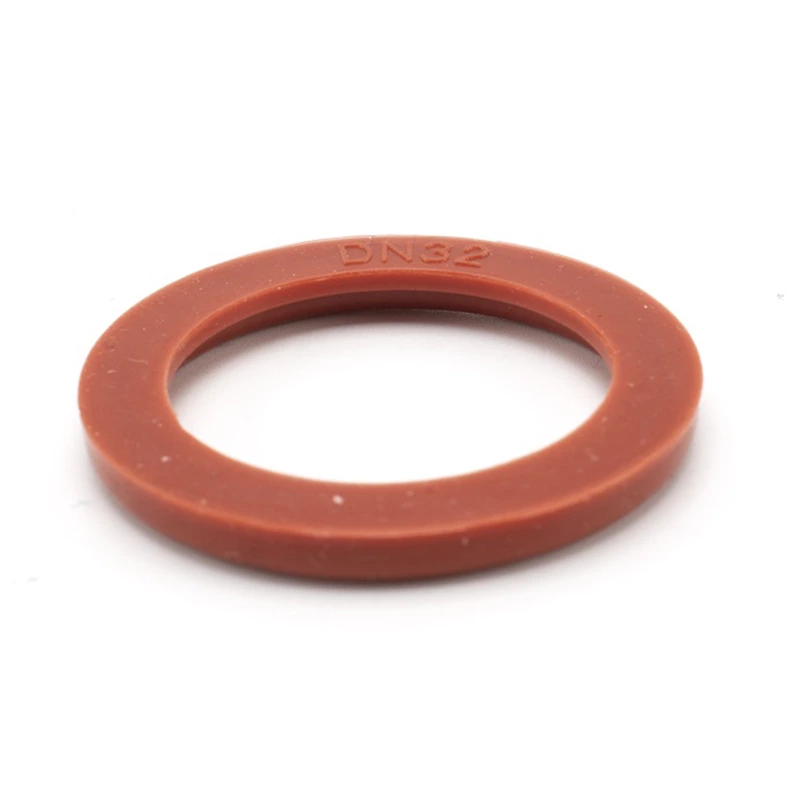

Sanitary DIN Union Silicone Gasket

DIN unions comprise of a round slotted nut, weld male, weld liner and gasket.

Working Temperature:
Working Pressure:

Sanitary Stainless Steel DIN Union Gasket

  • The Sanitary DIN complete Union including four parts, DIN Welding Male, DIN Welding Liner, DIN Union Gasket, DIN Nut.

  • It is widely applied to many fields, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

  • It is suitable for flexible and easy maintenance.

  • It is especially suited for processes where the load on seals is extra high, where easy control and replacement of seals is necessary and where optimal cleaning is required.

Technical Data

Material: Silicone/EPDM/FKM/NBR
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: DN15-DN150
Availably standard: DIN

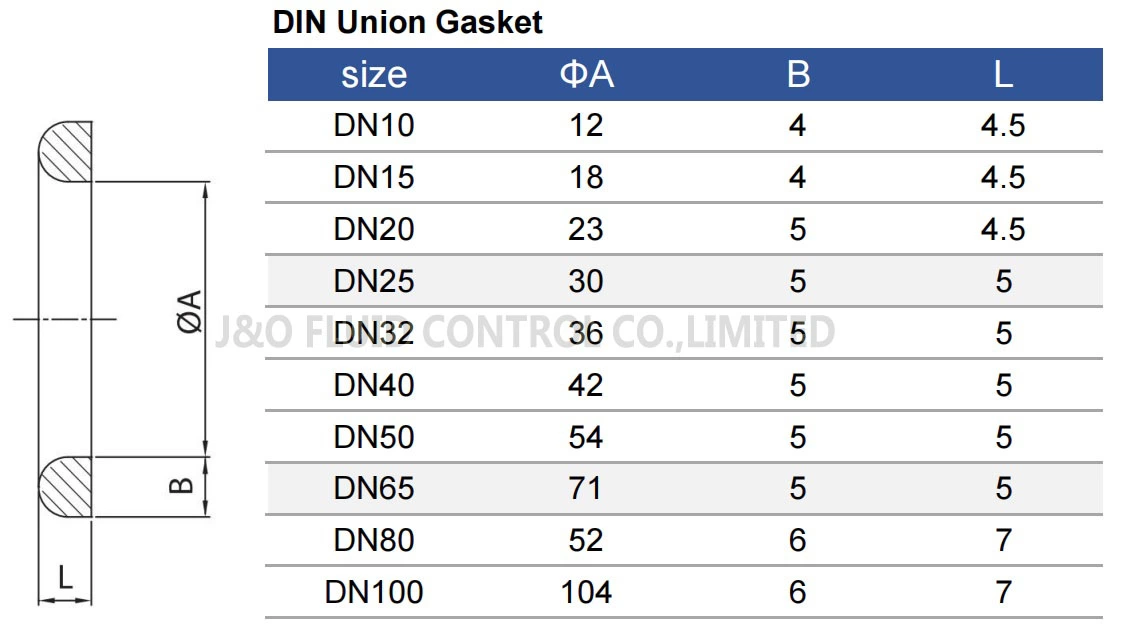

Product Parameter

Sanitary DIN Union Silicone Gasket
