Sanitary Idf Union

IDF unions comprise of a slotted nut, weld male, weld liner and gasket.

Brand:
J&O
Material:
SS304 / SS316L
Connection:
Weld
Gasket:
EPDM / Silicon / NBR / FKM
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Enquiry
Sanitary Idf Union
Sanitary Idf Union Sanitary Idf Union Sanitary Idf Union Sanitary Idf Union Sanitary Idf Union

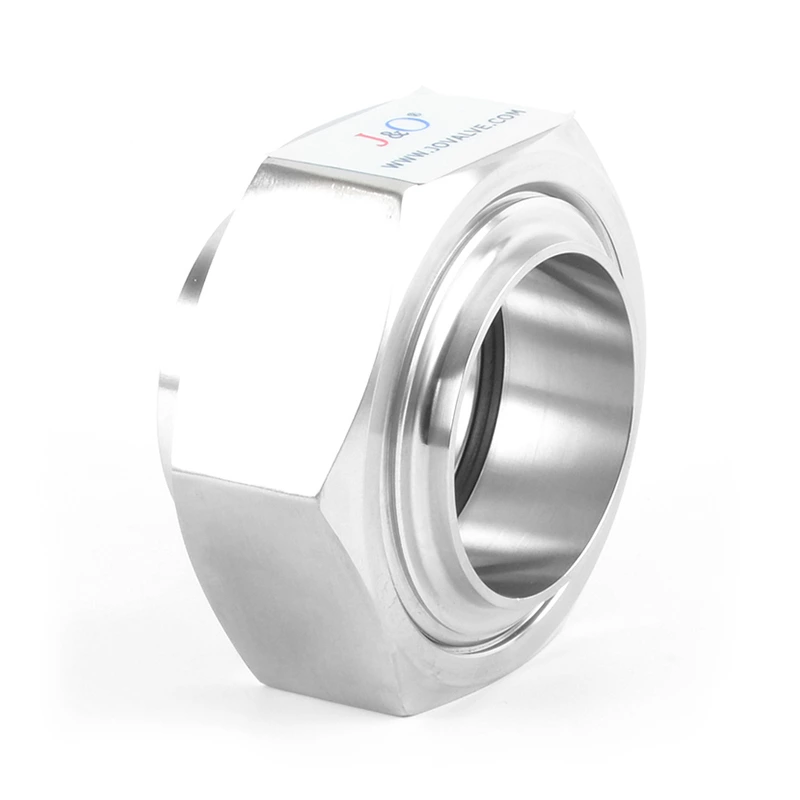

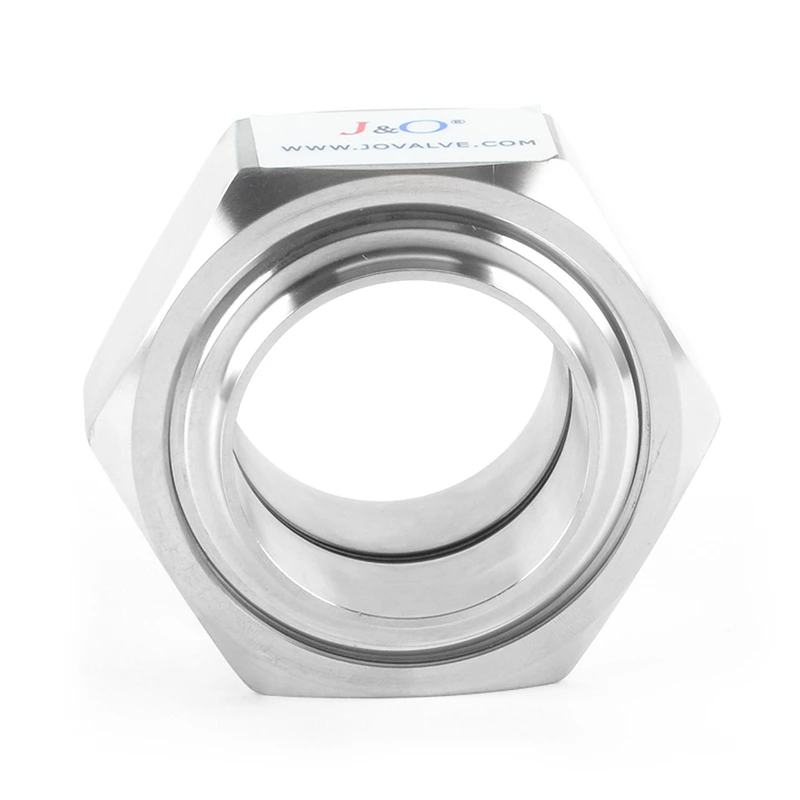

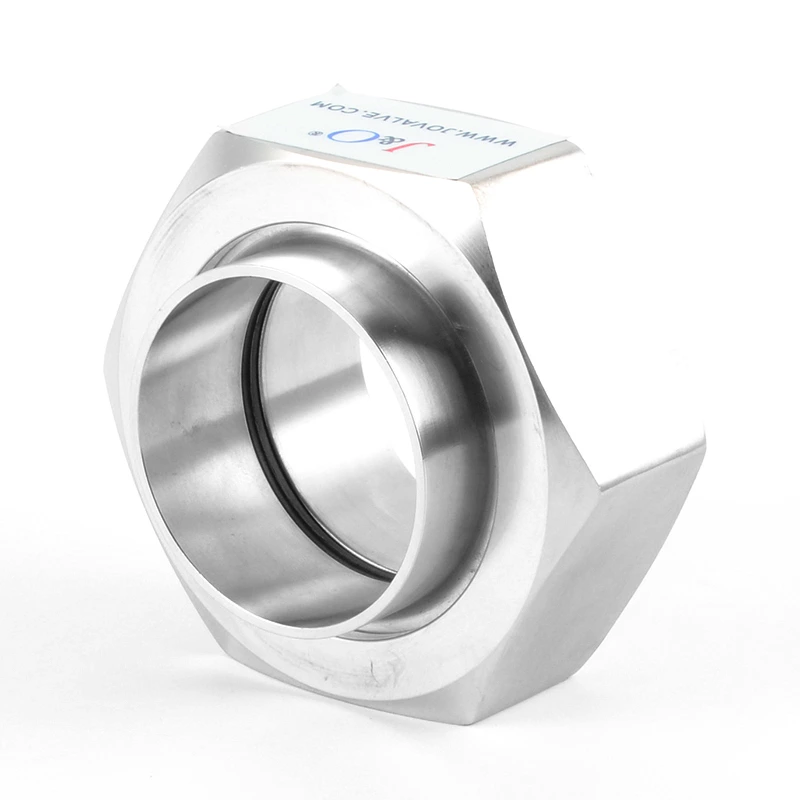

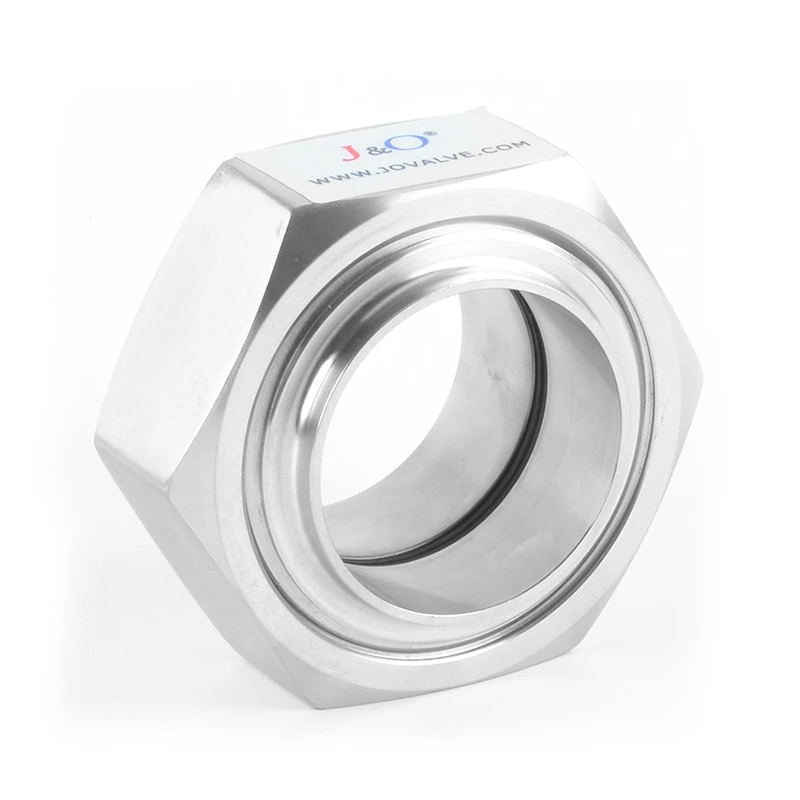

Sanitary Stainless Steel IDF Hexagone Union

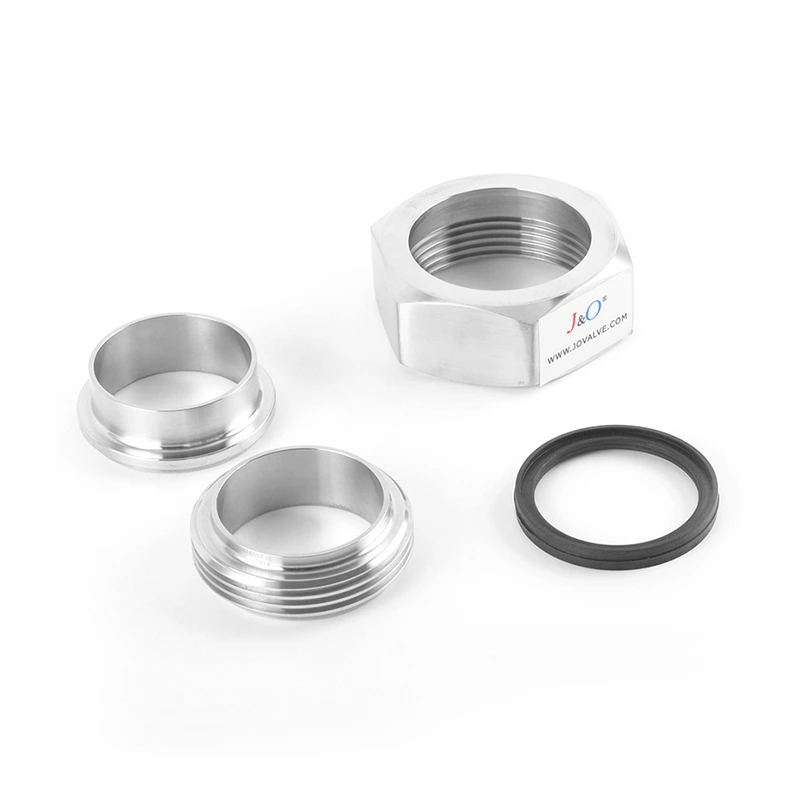

  • The Sanitary IDF complete Union including four parts, IDF Welding Male, IDF Welding Liner, IDF Union Gasket, IDF Nut.

  • It is widely applied to many fields, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

  • It is suitable for flexible and easy maintenance.

  • It is especially suited for processes where the load on seals is extra high, where easy control and replacement of seals is necessary and where optimal cleaning is required.

Technical Data

Material: SS304/SS316L
Seal Material: Silicone/EPDM/FKM/NBR
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: Φ25- Φ102
Availably standard: IDF

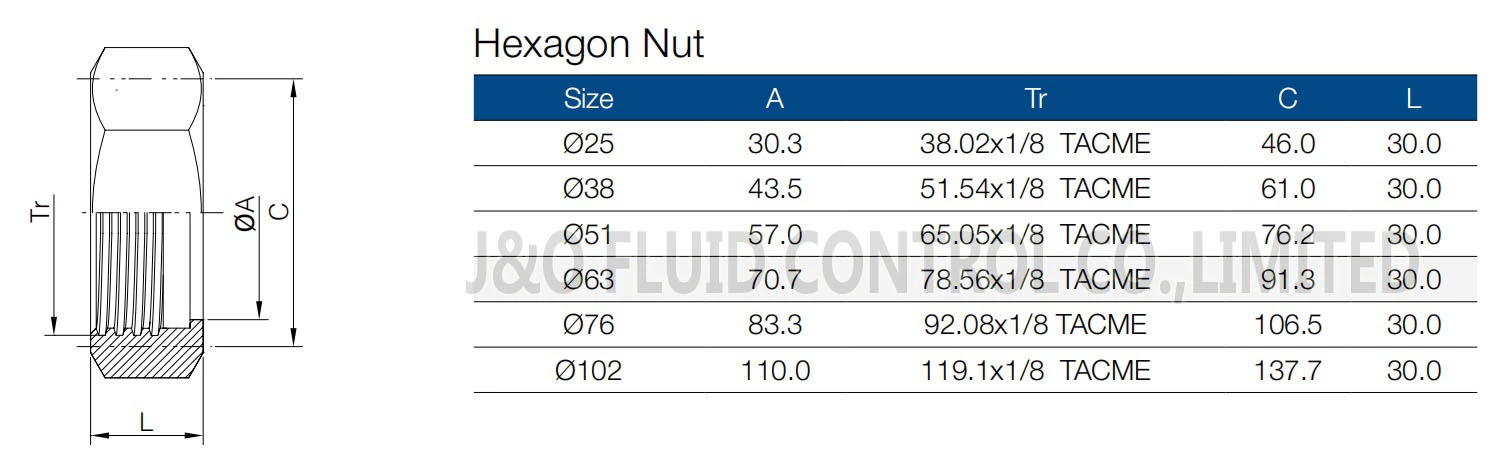

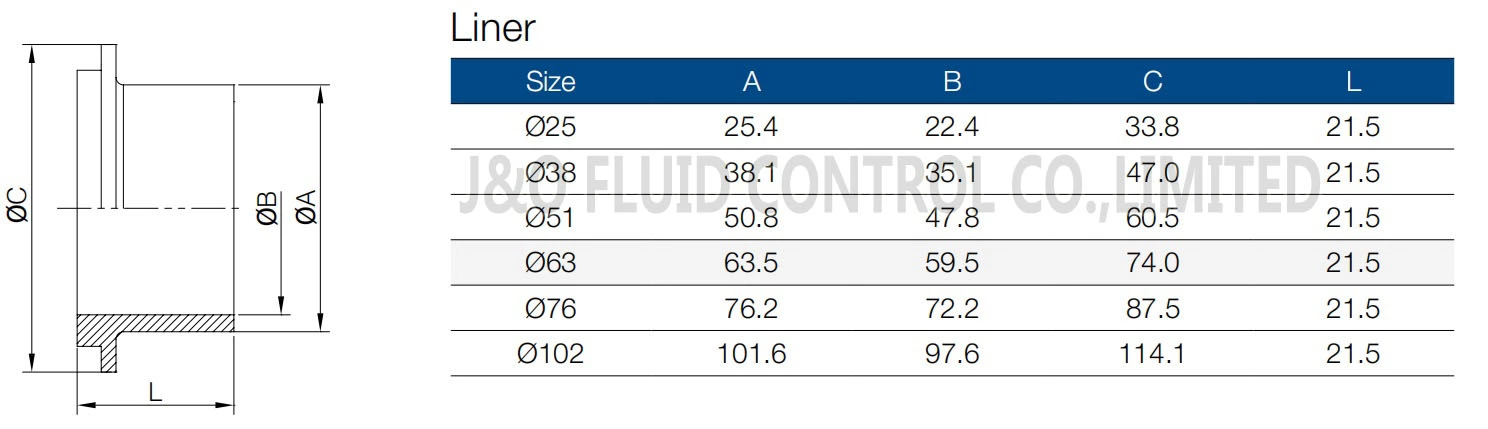

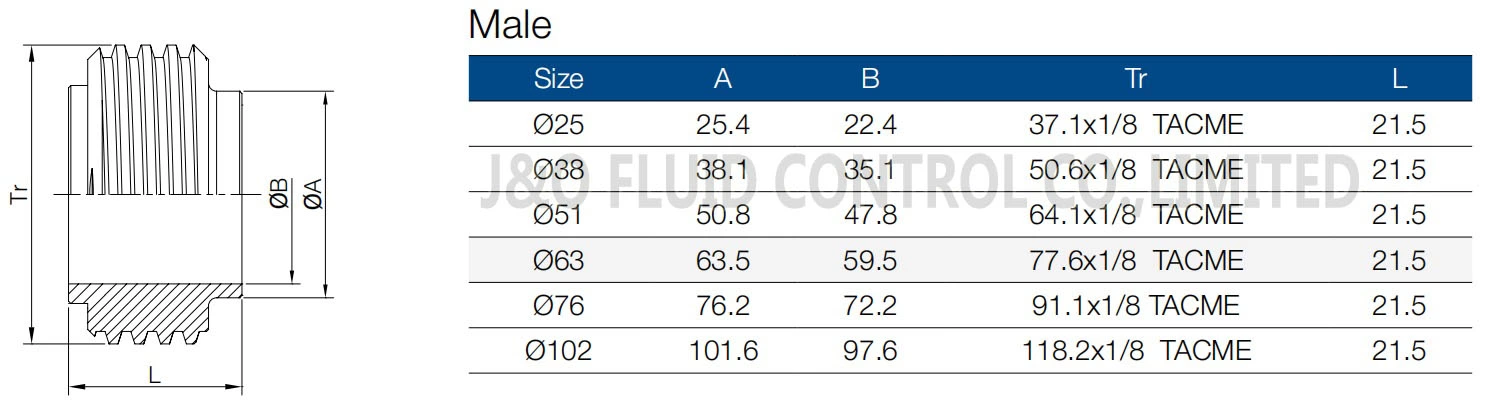

Product Parameter
