J&O Fluid Control Co., Limited.

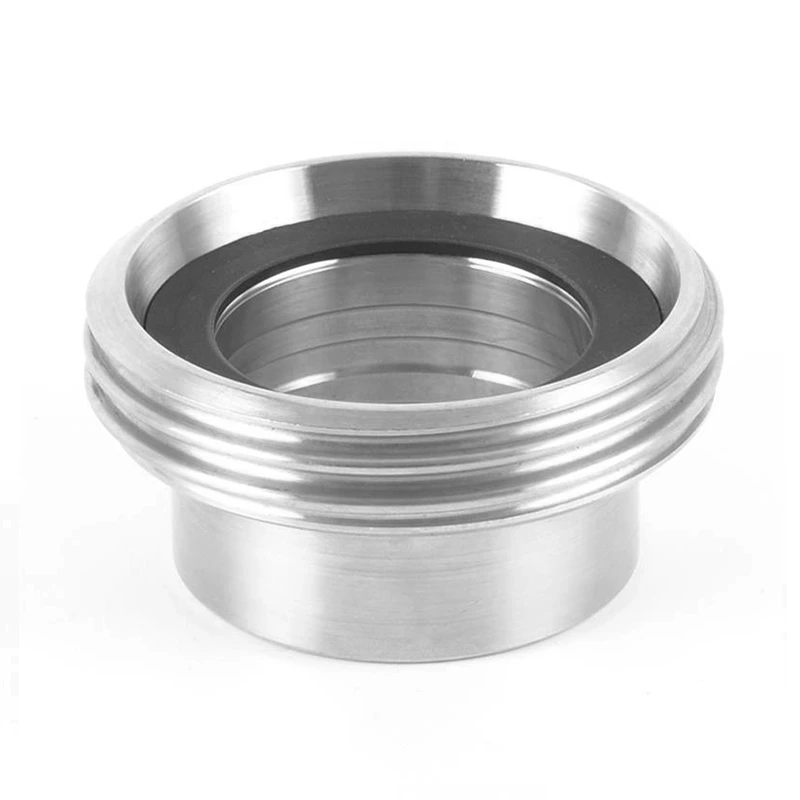

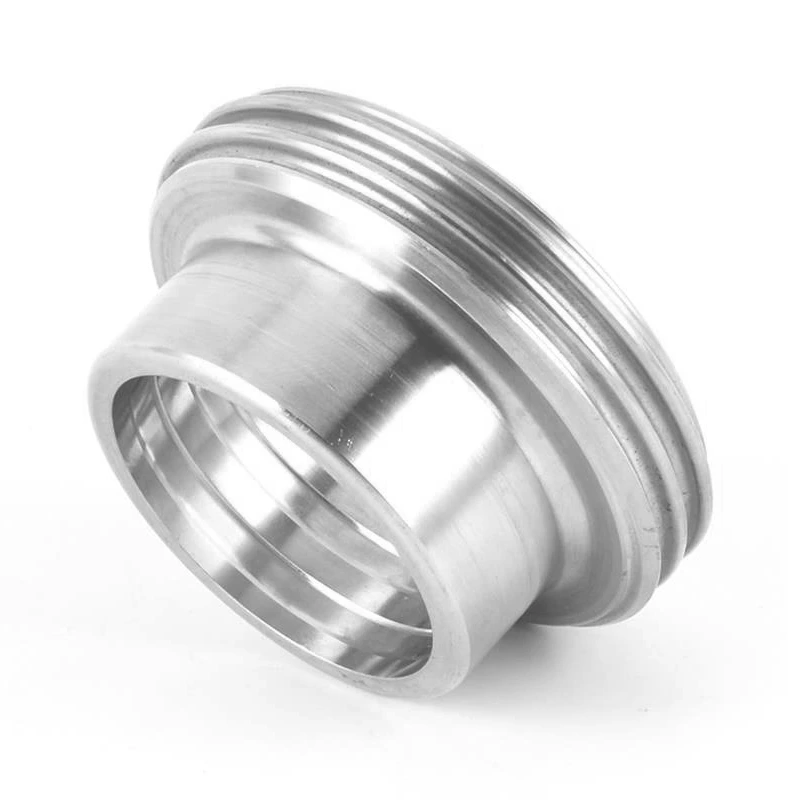

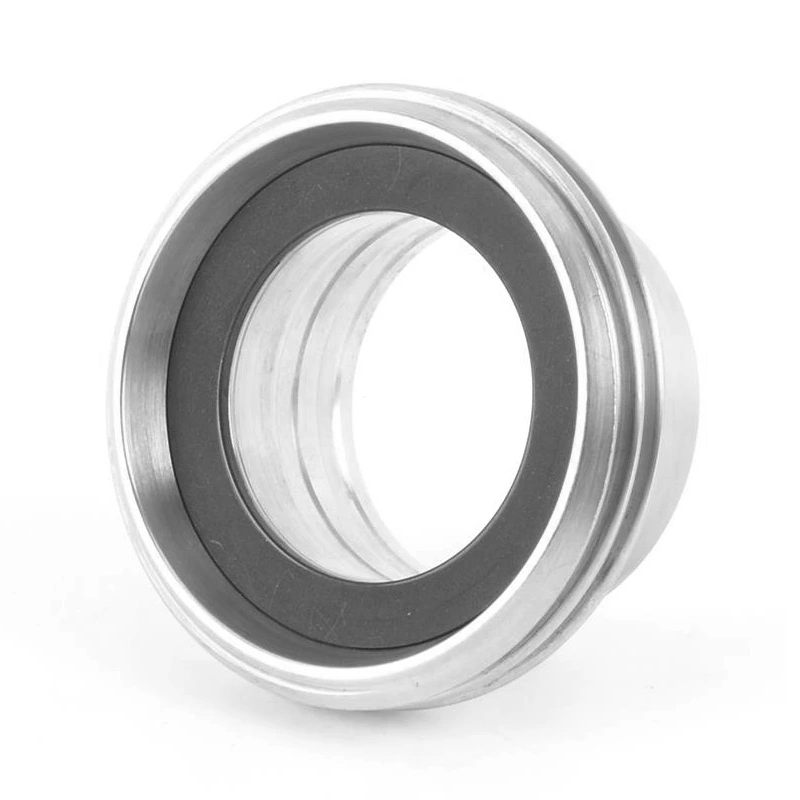

Sanitary Stainless Steel DIN Expanding Male

DIN unions comprise of a round slotted nut, weld male, weld liner and gasket.

Brand:
J&O
Material:
SS304 / SS316L
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar

Sanitary Stainless Steel DIN Expanding Male

  • The Sanitary DIN complete Expanding Union including four parts, DIN Expanding Male, DIN Expanding Liner, DIN Gasket, DIN Nut.

  • It is widely applied to many fields, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.

  • It is suitable for flexible and easy maintenance.

  • It is especially suited for processes where the load on seals is extra high, where easy control and replacement of seals is necessary and where optimal cleaning is required.

Technical Data

Material: SS304/SS316L
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: DN15-DN150
Availably standard: DIN

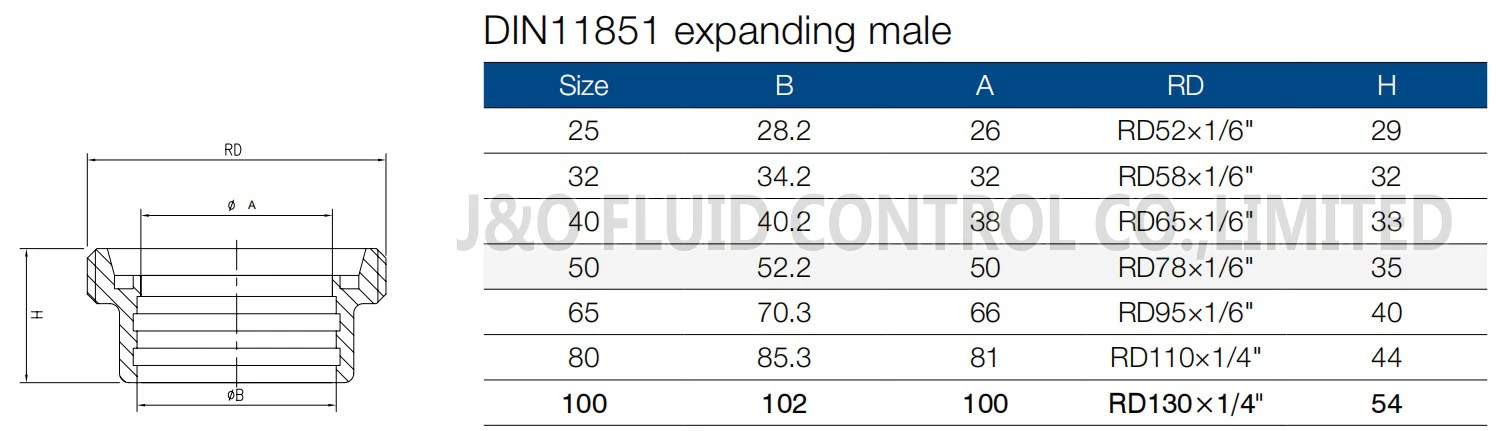

Product Parameter

Sanitary Stainless Steel DIN Expanding Male

Product Pictures

Sanitary Stainless Steel DIN Expanding Male
