China J&O Fluid Control Co., Limited


Hygienic Stainless Steel Manual Clamped Sampling Valve

SS304 or SS316L
Clamp,tri Clamp,Clamped
Working Temperature:
120 degree C
Working Pressure:

Hygienic Stainless Steel Manual Clamped Sampling Valve

  • J&O Hygienic Sampling Valve including Manual Sampling Valve, Sanitary Clamp Sample Valve, Hygienic Welding Sampling Valve, Hygienic Thread Male Sampling Valve, Pneumatic Sampling Valve, Sanitary Aseptic Sample Valve.
  • A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid ( gases ,  liquids ,  fluidized ,  solids , or slurries ) to test (e.g. by physical measurements, chemical analysis, microbiological examination), typically for the purposes of identification, quality control, or regulatory assessment. It is a valve used for sampling .
  • The Sampling Valve allows the operator to extract a sample of the product from the production line or reactor and safely store it for transportation to the laboratory where it will be analysed or to the archive room where it can be retrieved for further use.
  • In chemical plants, a sample can be taken during the process to ensure that the output meets specifications (or that the quality is acceptable), before shipping the chemical good or before accepting the chemical product.

Technical Data

Valve Body Material: SS304 or SS316L
Seal Material: PTFE
O ring seal: NBR
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably  size: 1/4" - 1/2"
Availably connection: Thread/ Clamp/ Weld
Availably standard: 3A
Operated: Manual
Certificate: FDA

Product Parameter

Hygienic Stainless Steel Manual Clamped Sampling Valve

Product Pictures

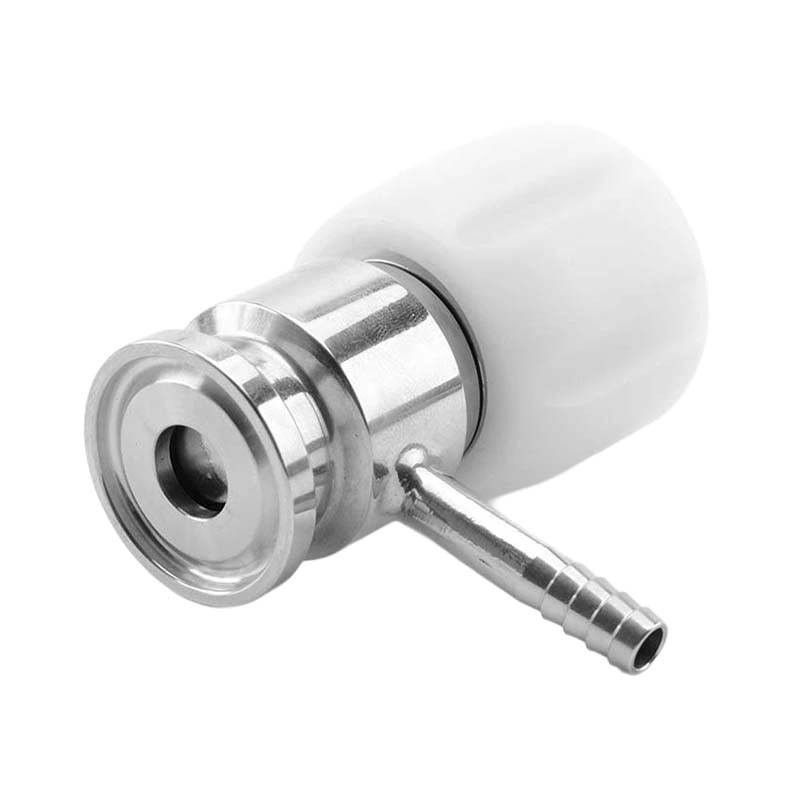

Hygienic Stainless Steel Manual Clamped Sampling Valve
