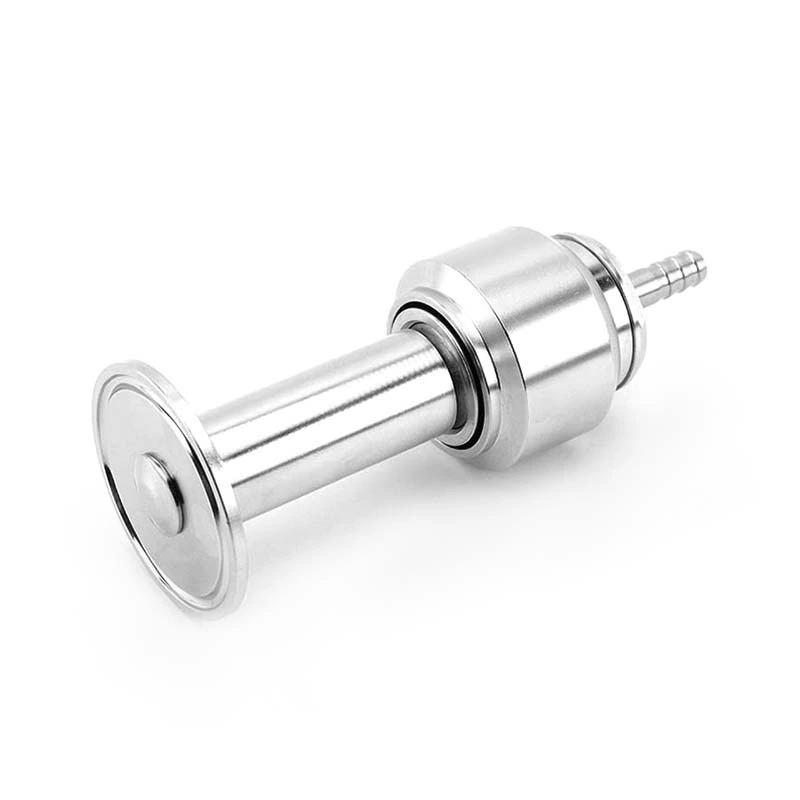

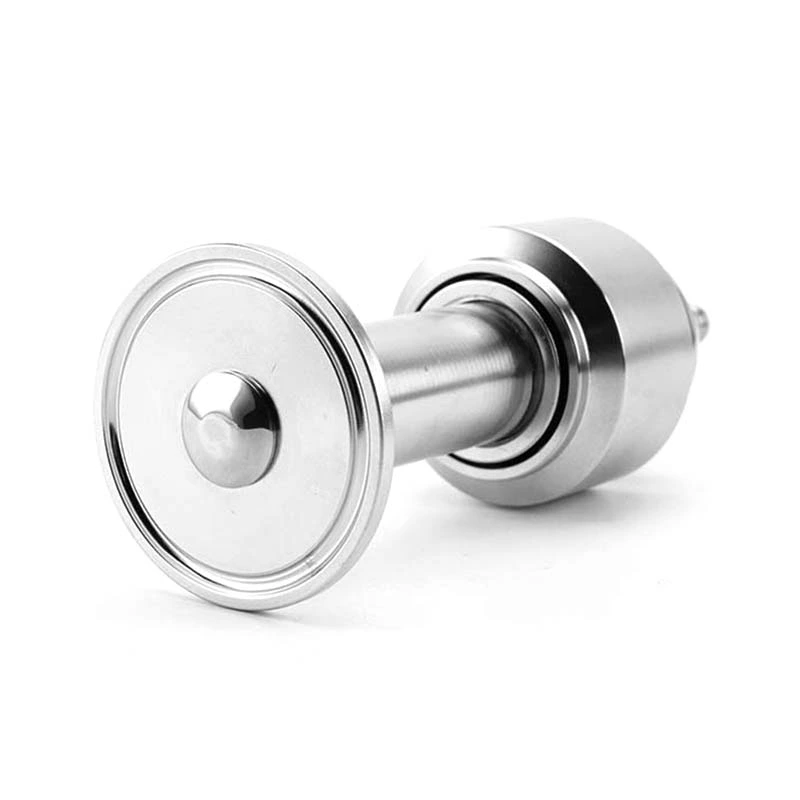

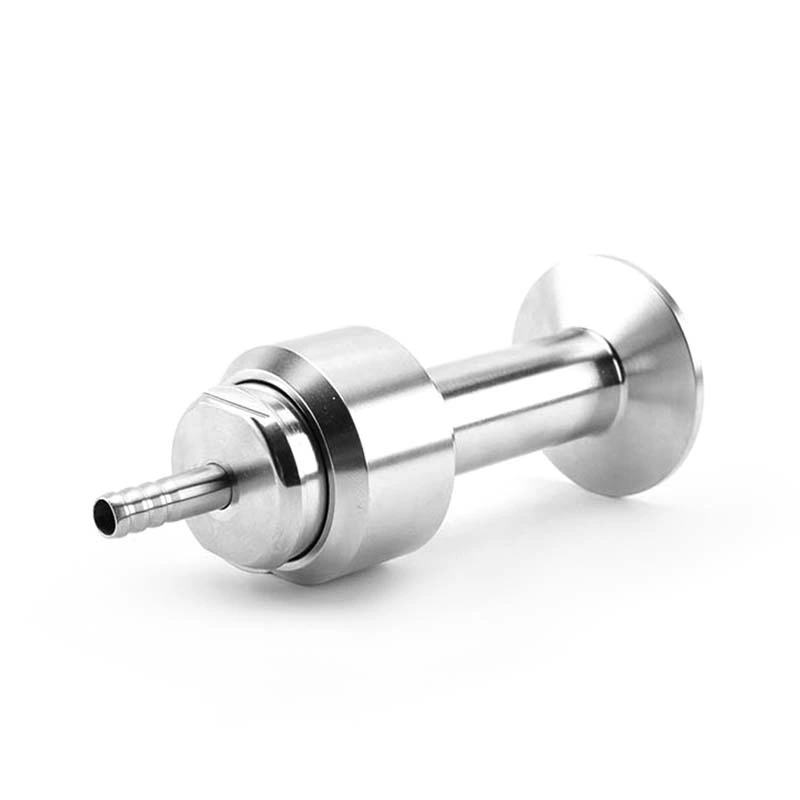

Sanitary Stainless Steel Sampling Valve

A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid ( gases , liquids , fluidized , solids , or slurries ) to test (e.g. by physical measurements, chemical analysis, microbiological examination), typically for the purposes of identification, quality control, or regulatory assessment.

Brand:
J&O
Material:
SS316L
Connection:
Clamped
Gasket:
PTFE
Working Temperature:
120 degree C
Working Pressure:
10Bar
Operation:
Manual
Download Catalog:
J&O SAMPLING VALVE-NEW.pdf
Enquiry
Sanitary Stainless Steel Sampling Valve
Sanitary Stainless Steel Sampling Valve Sanitary Stainless Steel Sampling Valve Sanitary Stainless Steel Sampling Valve Sanitary Stainless Steel Sampling Valve Sanitary Stainless Steel Sampling Valve Sanitary Stainless Steel Sampling Valve

Sanitary Stainless Steel Sampling Valve

  • We can supply Manual Sanitary Sampling Valve, Pneumatic Hygienic Sampling Valve, Aseptic Sanitary Sample Valve, Sanitary Weld Sampling Valve, Hygienic Clamped Sample Valve, Sanitary Thread Sampling Valve.

  • Sampling Valve mainly applied to extract sample from tank or pipeline, it also can be assembled at the bottom of the tank or pipeline to drain away the remains. It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.

  • Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.

  • Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.

Technical Data

Valve Body Material: SS316L
Seal Material: PTFE
O ring seal: NBR
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably  size: 1/4" - 1/2"
Availably connection: Thread/ Clamp/ Weld
Operated: Manual
Certificate: FDA

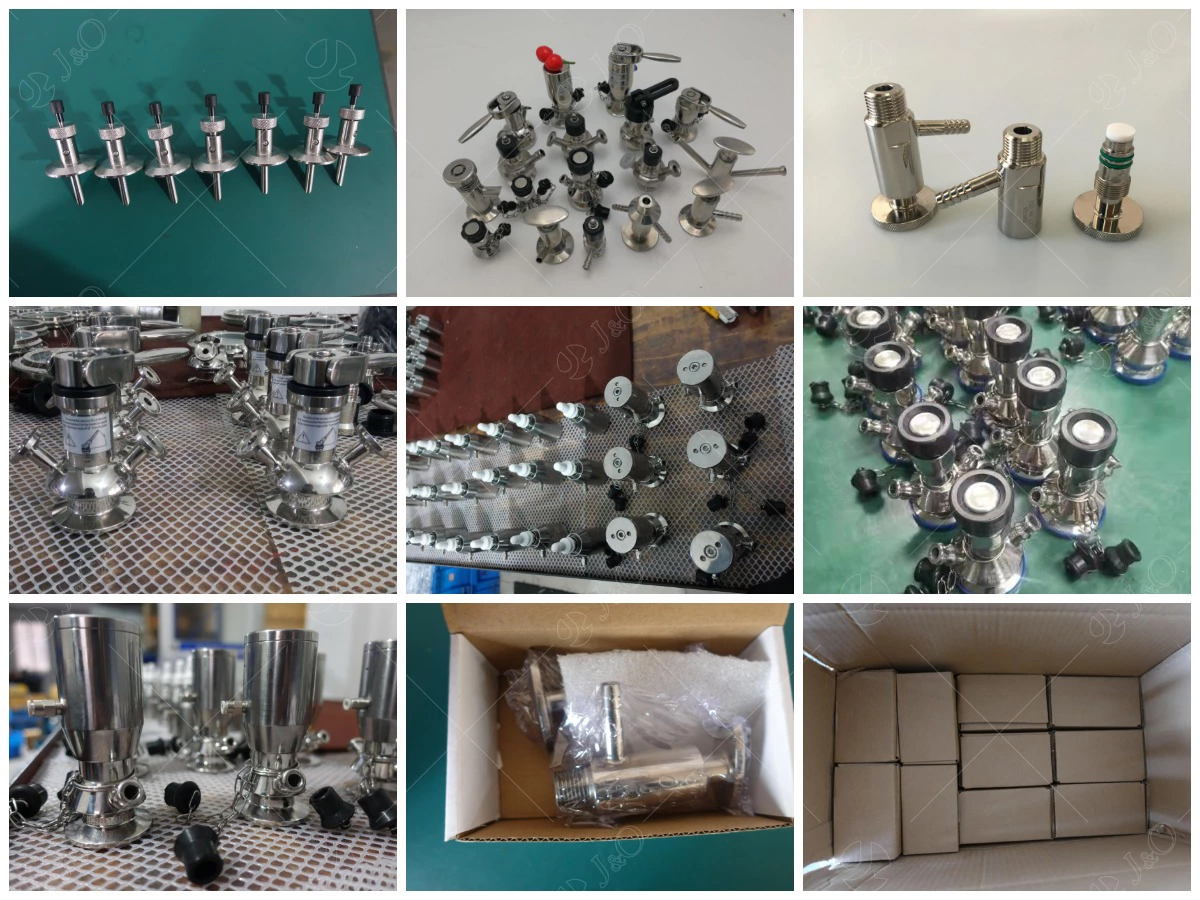

Product Picture
