Sight Glass Male

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Male Threaded
Gasket:
EPDM, SILICON, VITON, PTFE
Working Temperature:
20°C ~ +135°C (EPDM,Silicone)
Working Pressure:
10Bar

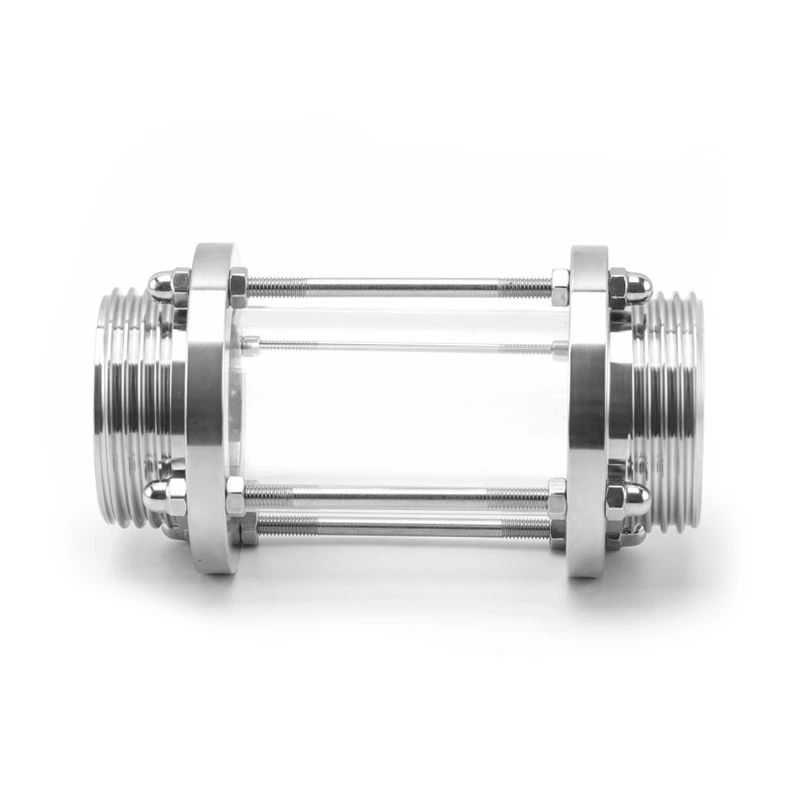

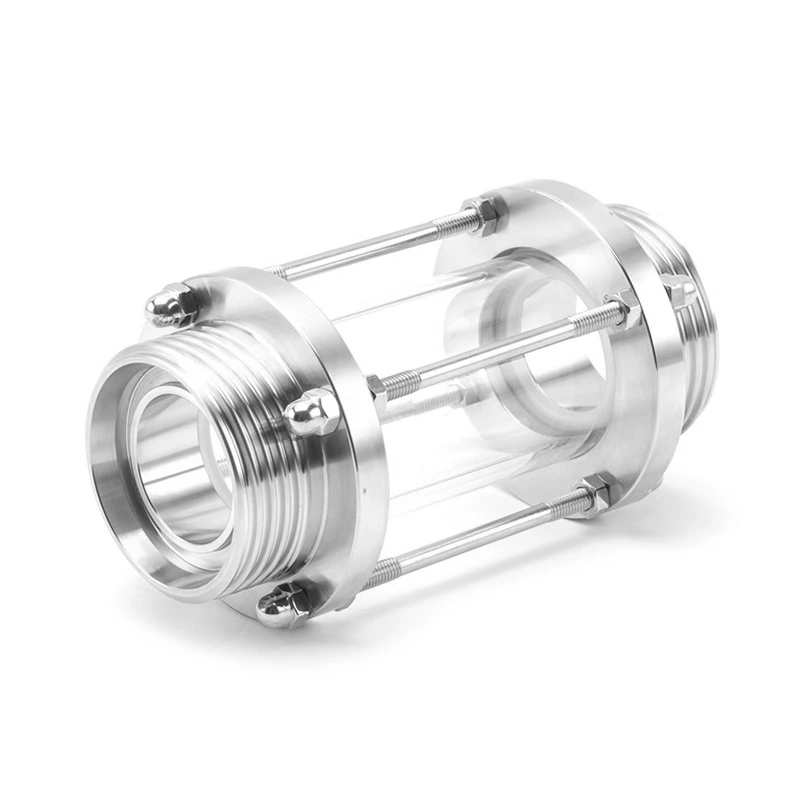

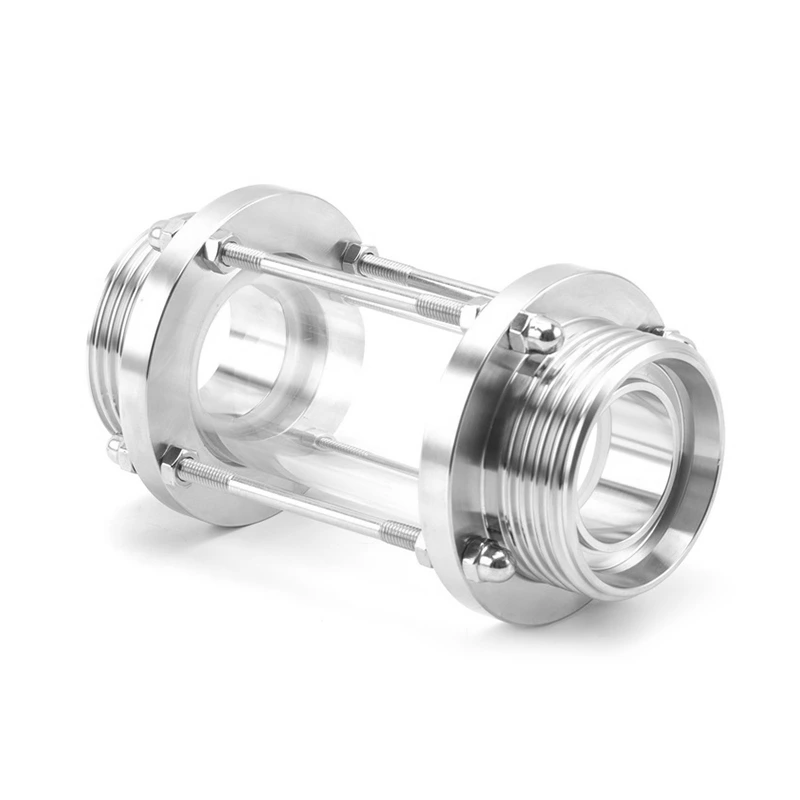

Sanitary Stainless Steel Thread Sight Glass

  • Our Sanitary Sight Glass including Sanitary Welding Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Male Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.

  • Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.

  • Screw Blot: Full Stainless Steel.

  • EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat  processing, vacuum processing, pharmaceutical, chemical, and many other industries.

  • It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.

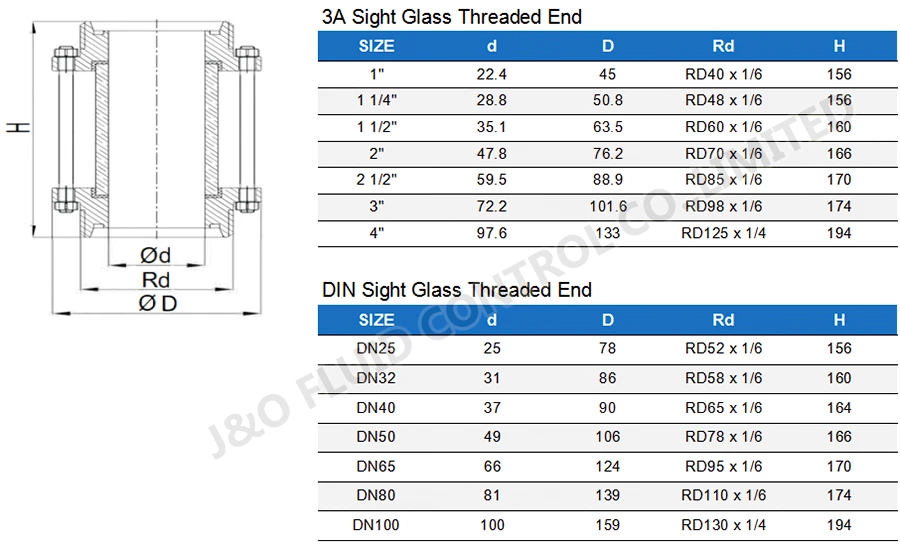

Technical Data

Sight Glass Male

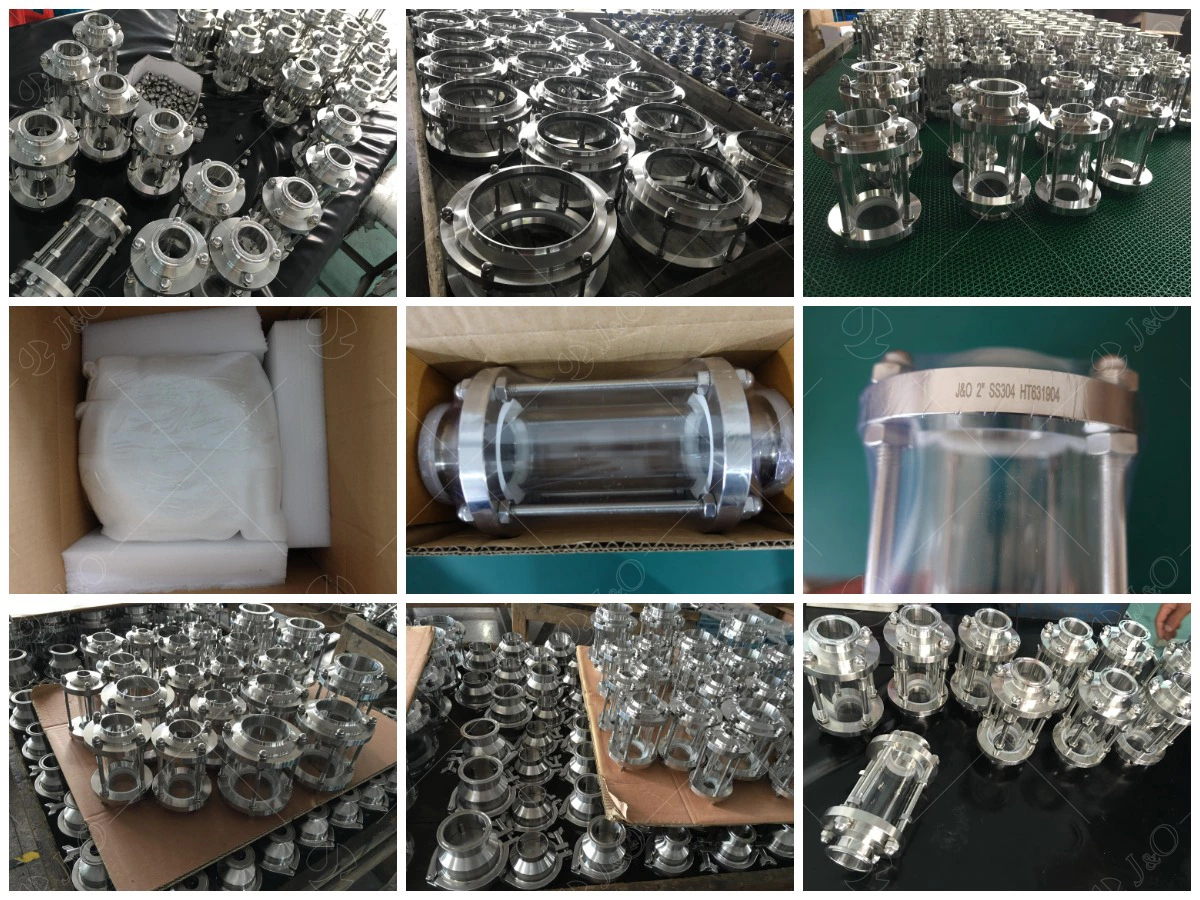

Product Pictures

Sight Glass Male
