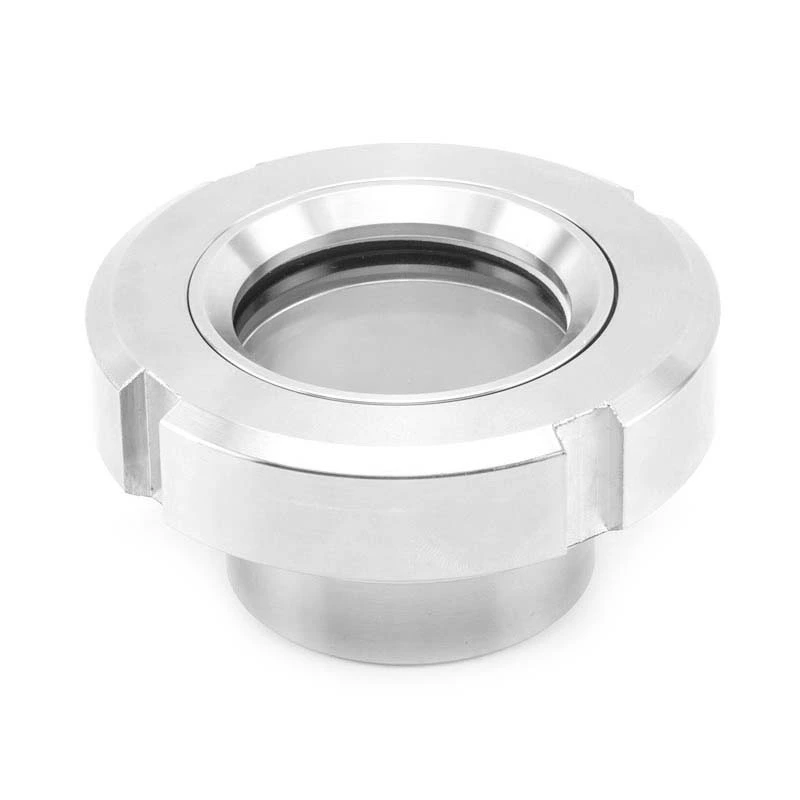

Sight Glass Union Type
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Welded
- Gasket:
- Silicone, EPDM, Viton, NBR
- Working Temperature:
- 20°C ~ +135°C (EPDM,Silicone)
- Working Pressure:
- 10Bar
- Payment:
- T/T, L/C, Western Union
Sanitary Stainless Steel Union Type Sight Glass
-
We manufacture Sanitary Welding Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Lamp.
-
Sanitary sight glass is designed for sanitary applications required in food, dairy, and pharmaceutical industries.
-
It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.
Technical Data
| Availably standard | SMS,DIN,3A,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS316L |
| Specification | 1"~4",DN40~DN100 |
| Availabe Connection | Welding ends,tri-clamp ends,union ends,male ends |
| Seal Material | Silicone, EPDM, Viton, NBR |
| Glass | Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)Tubing; Acrylic Tubing; etc |
| Protection Lens Cover | Polycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel |
| Screw Blot | Full Stainless Steel |
| Structure | Straight way,cross |
| Pressure range | 1bar~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Continuous working temperature | 20°C ~ +135°C (EPDM,Silicone) |
| Special Design | we can produce according to your drawings |

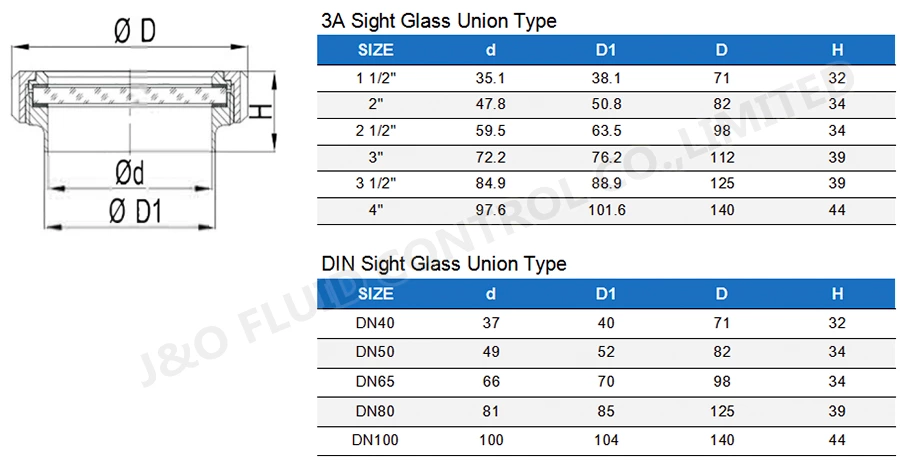

Product Parameter
Product Pictures
