Sanitary Stainless Steel Manual Sterile Tank Bottom Valve With Sampling Valve

Sanitary Stainless Steel Manual Clamped Tank Bottom Valve

• Our Sanitary Tank Bottom Valve including Stainless Steel Manual Tank Bottom Valve, Sanitary Pneumatic Tank Bottom Valve, Hygienic Tank Bottom Diaphragm Valve, Sanitary Clamped Tank Bottom Valve, Hygienic Flanged Tank Bottom Ball Valve.

• The sanitary tank bottom (tank outlet) valve is widely used for Medical and pharmaceutical industries. It is widely used for draining in tanks and processing vessels.

• The diaphragm provides the body seal as well as the seat seal.There are no paths to the outside environment so it suitable for aseptic processes. When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body.When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body,thus, closing off the flow path through the body.The inter relationship of body to the pressure plate prevents over compression of the diaphram.The valve can be manual operation and pneumatic operation control tops of solenoid valves.

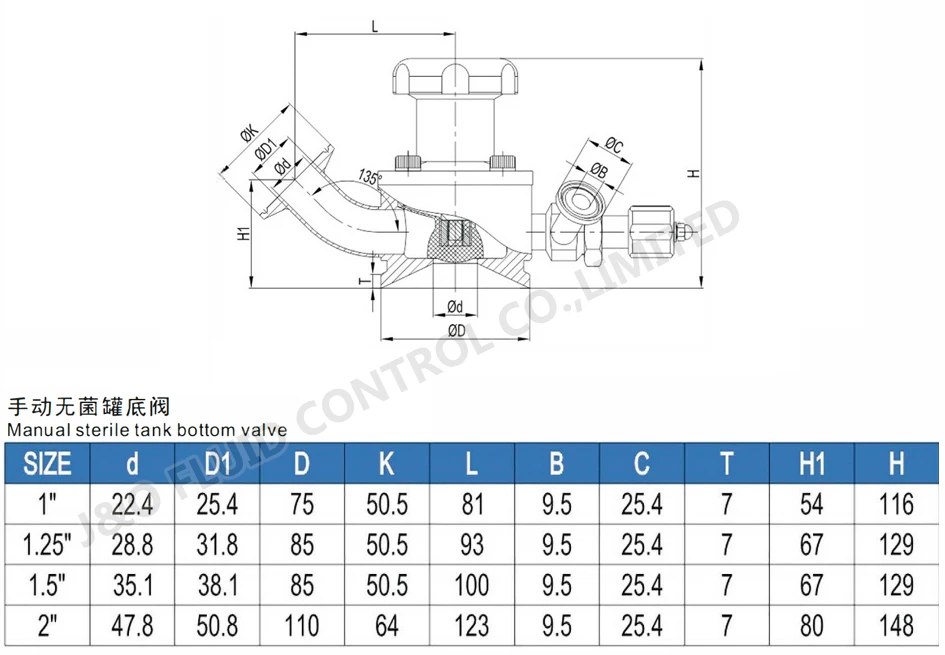

Technical Data

Product Parameter

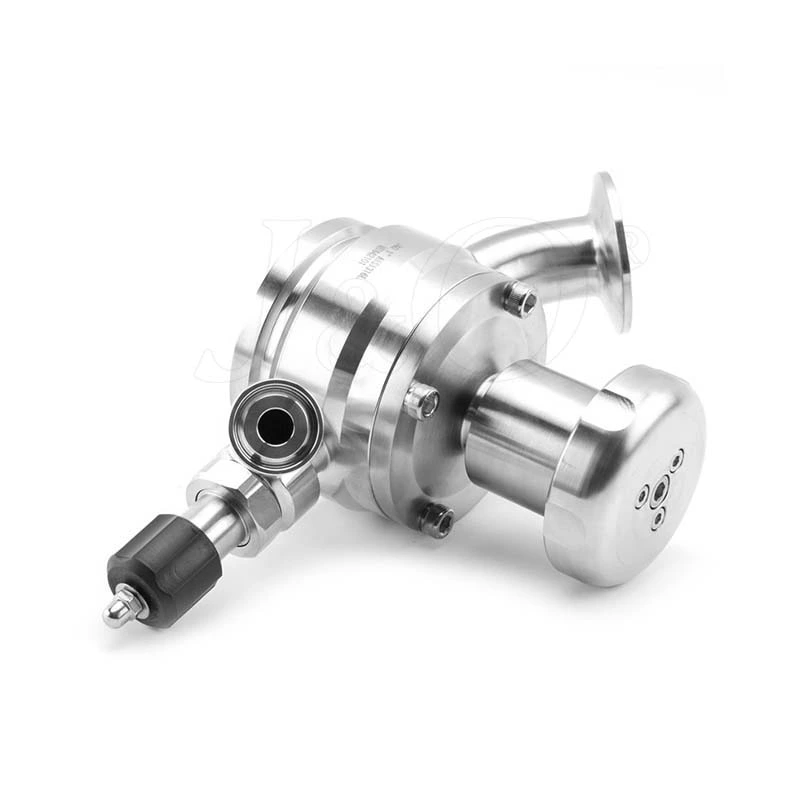

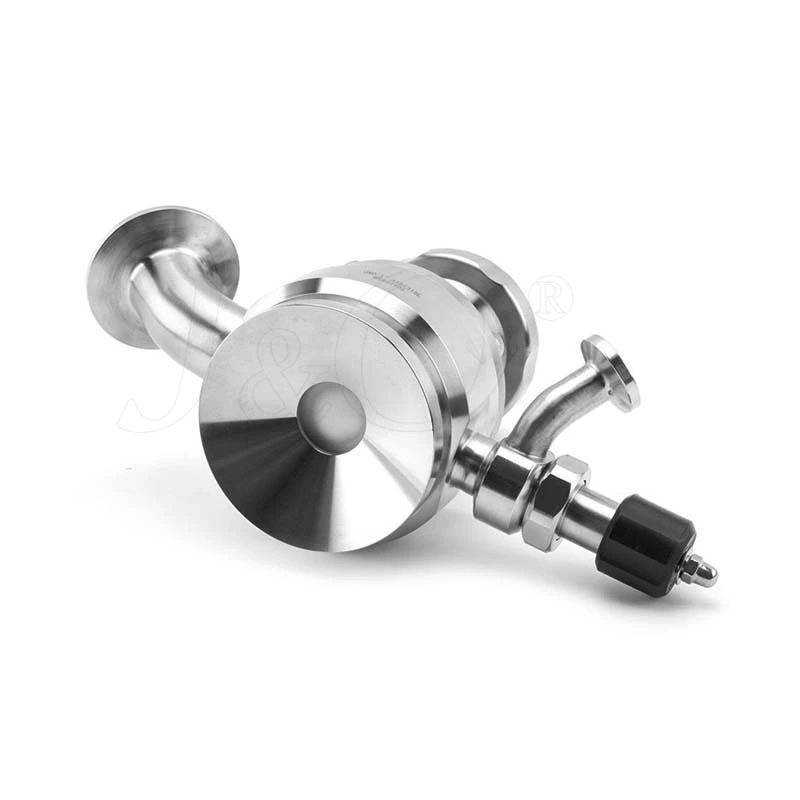

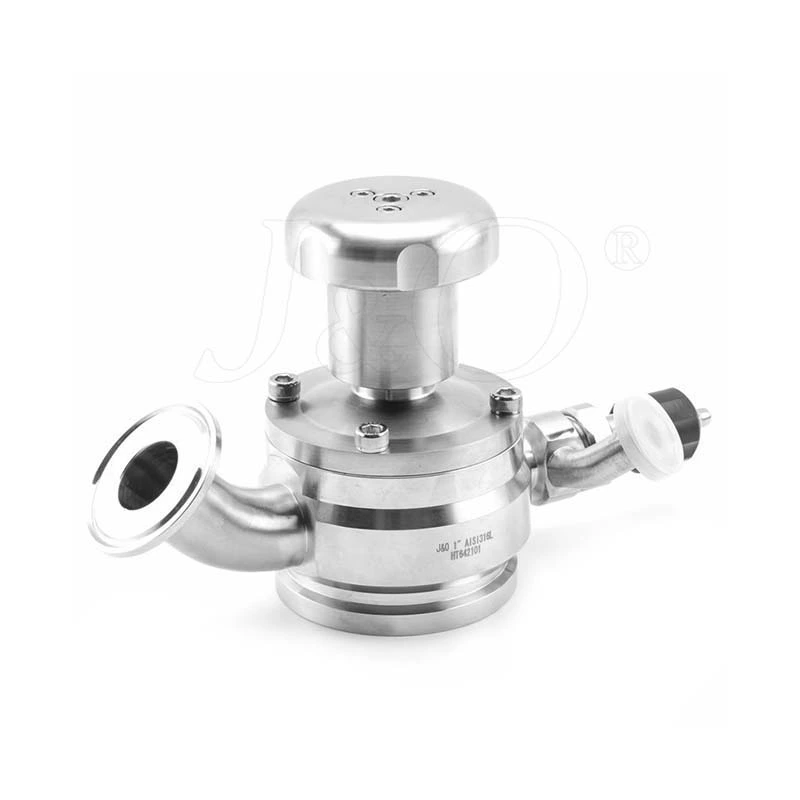

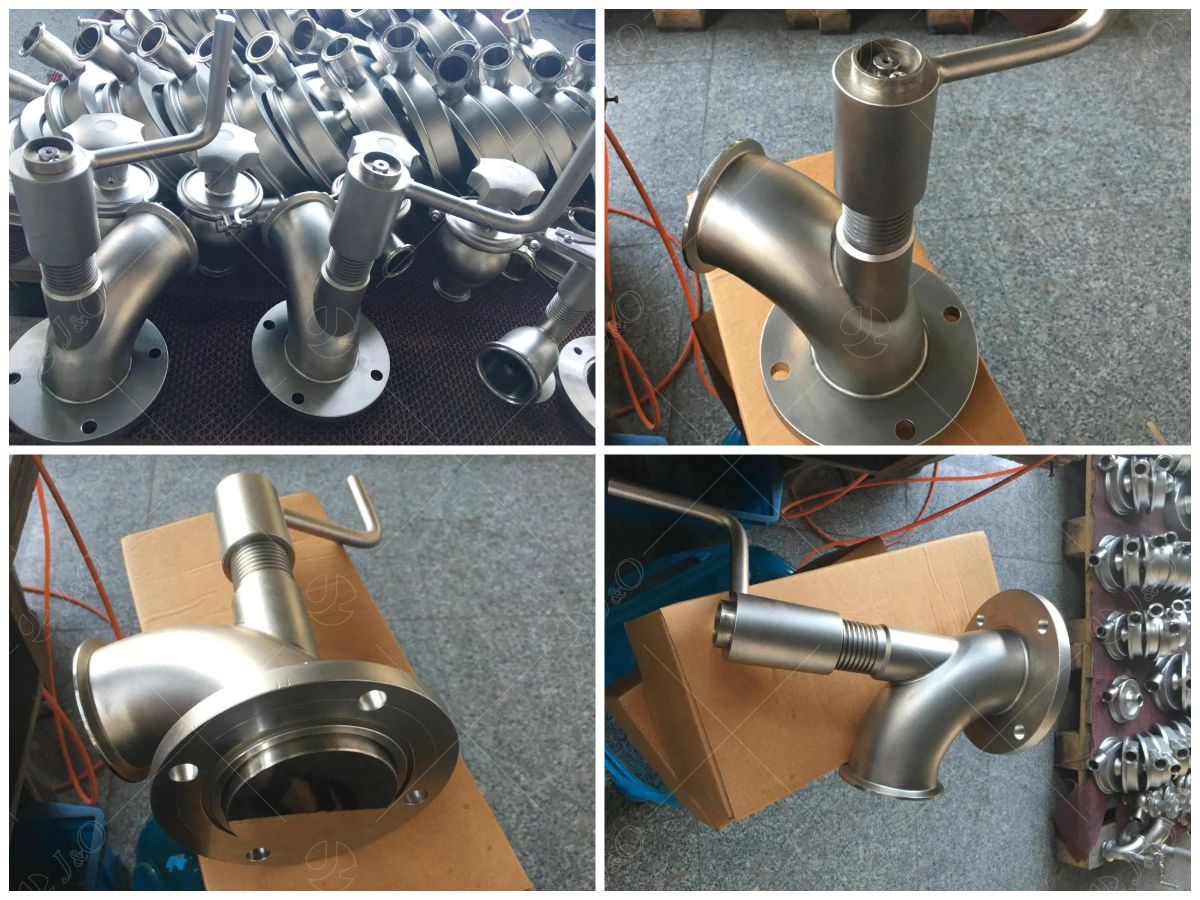

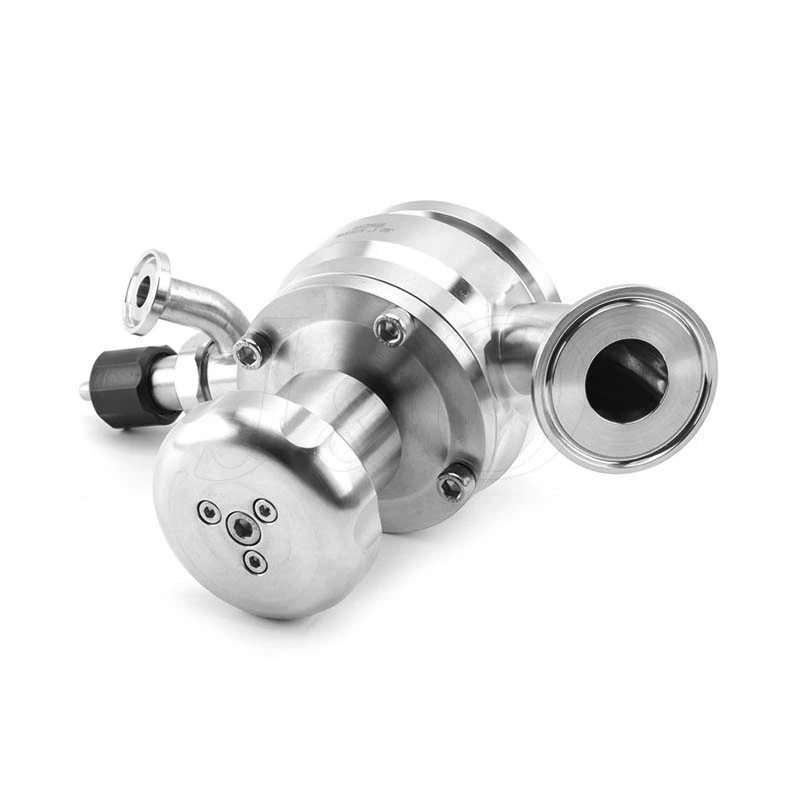

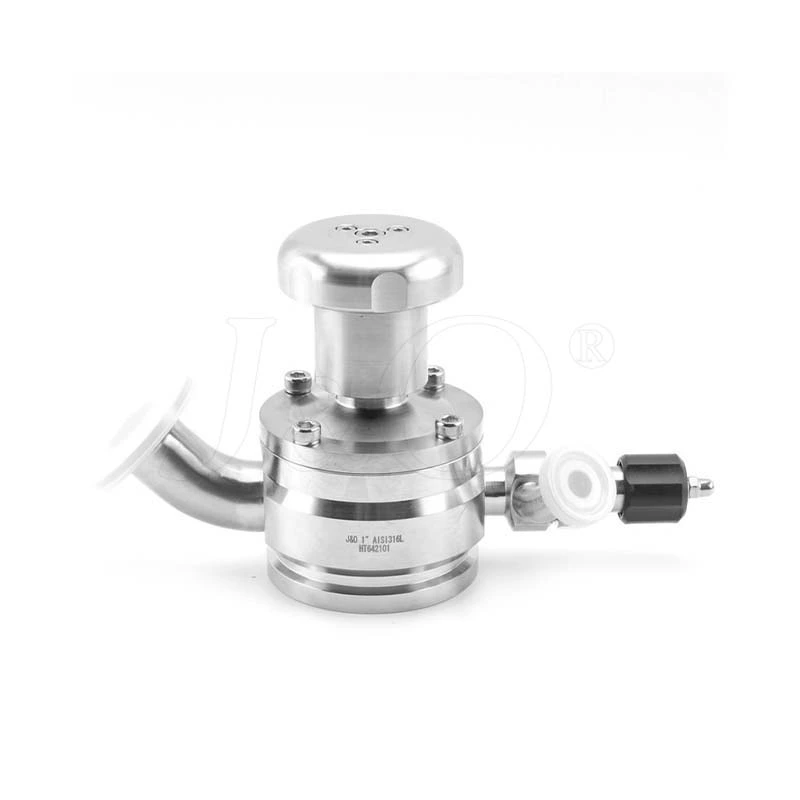

Product Pictures
