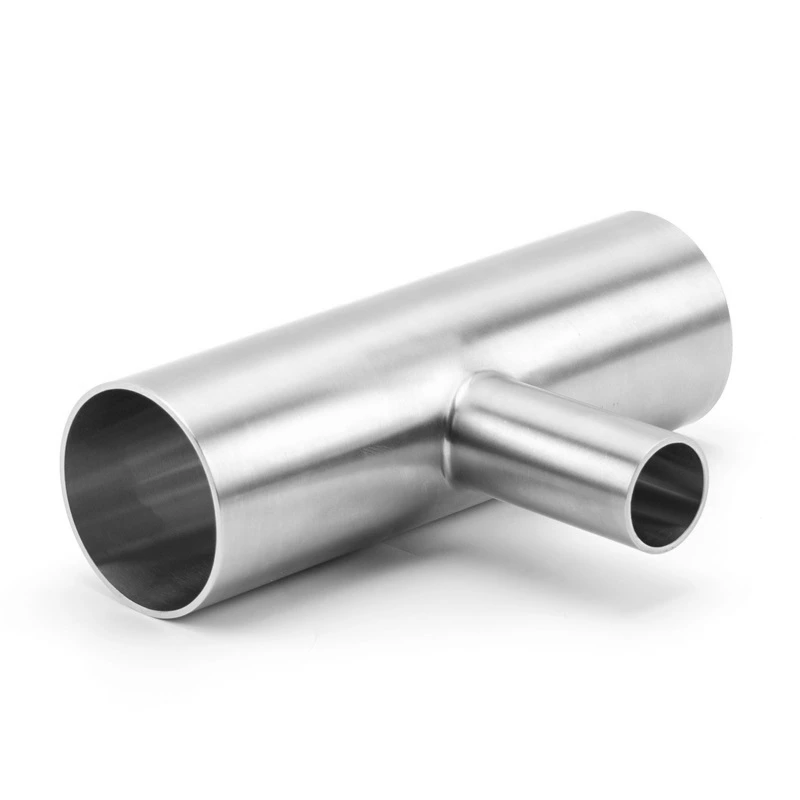

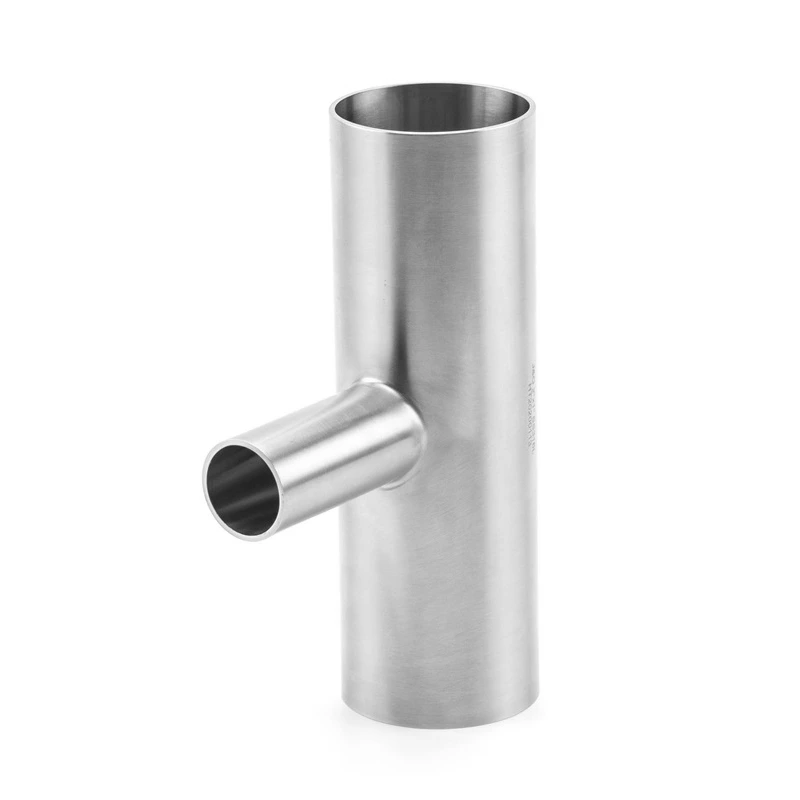

Sanitary Stainless Steel Welded Reducing Long Tee

We can supply Hygienic Butt Welded Tee, Sanitary Clamped Tee, Food Grade Reducing Tee, Hygienic Y Type Tee, Sanitary U Type Tee.It is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ec.
Model:
JOF-DNTEHS-11
Brand:
J&O
Material:
SS304 or SS316L
Connection:
Welded
Working Temperature:
-20℃ ~ 135℃
Working Pressure:
10Bar
Download Catalog:
J&O NEW PIPE FITTINGS.pdf
Enquiry
Sanitary Stainless Steel Welded Reducing Long Tee
Sanitary Stainless Steel Welded Reducing Long Tee Sanitary Stainless Steel Welded Reducing Long Tee Sanitary Stainless Steel Welded Reducing Long Tee Sanitary Stainless Steel Welded Reducing Long Tee

Sanitary Stainless Steel Welded Reducer Long Tee

  • We manufacture Hygienic Butt Welded Tee, Sanitary Clamped Tee, Food Grade Reducing Tee, Hygienic Y Type Tee, Sanitary U Type Tee.

  • It is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ec.

  • Each kind of products has strong corrosion resistance and over-long service liftime.

  • Tank accessories are easy to be installed.

  • Problem-free welding and assembly and highest possible strenghth.

  • Welding Requirements:aware of the constantly increasing demands for quality of welding. In accordance with these demands, all our weld and fittings meet the hightest of standard. The reducers have cylindrical welding ends and are avaible for all tube combiations, ensuring you that the right diamter and wall thickness for your process.

Technical Data

Material Quality SS304,SS316L
Specification 1"-10"
Available Connection Welding ends, triclamp ends, union ends, male ends
Available Poblishing 180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished
Pressure range 0bar~10bar
Temperature Range -20℃ ~ 135℃

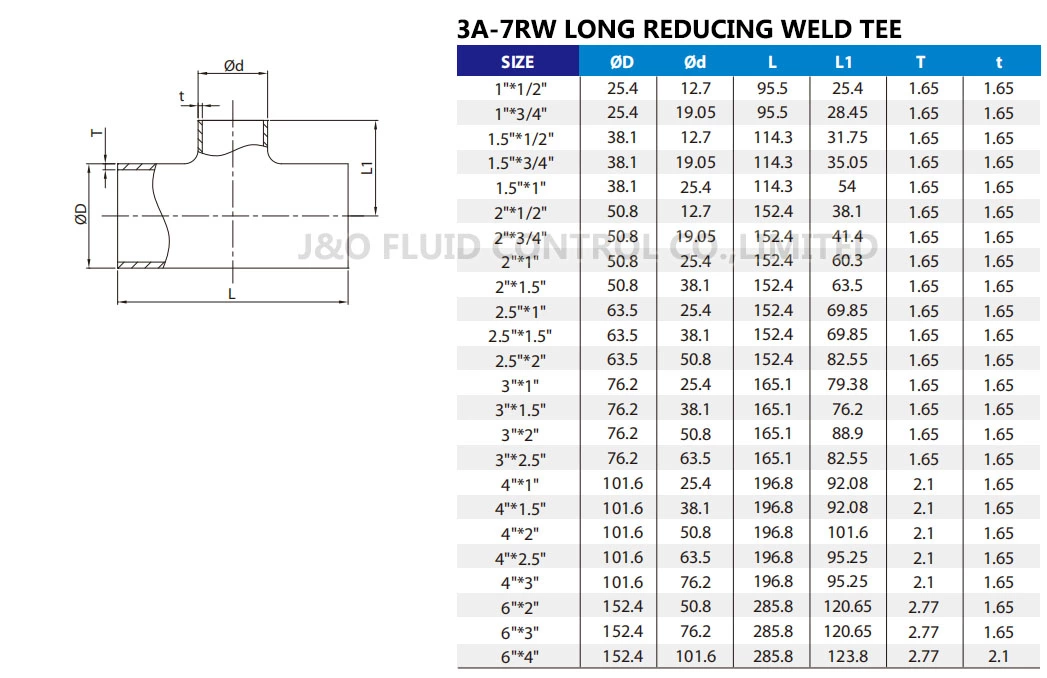

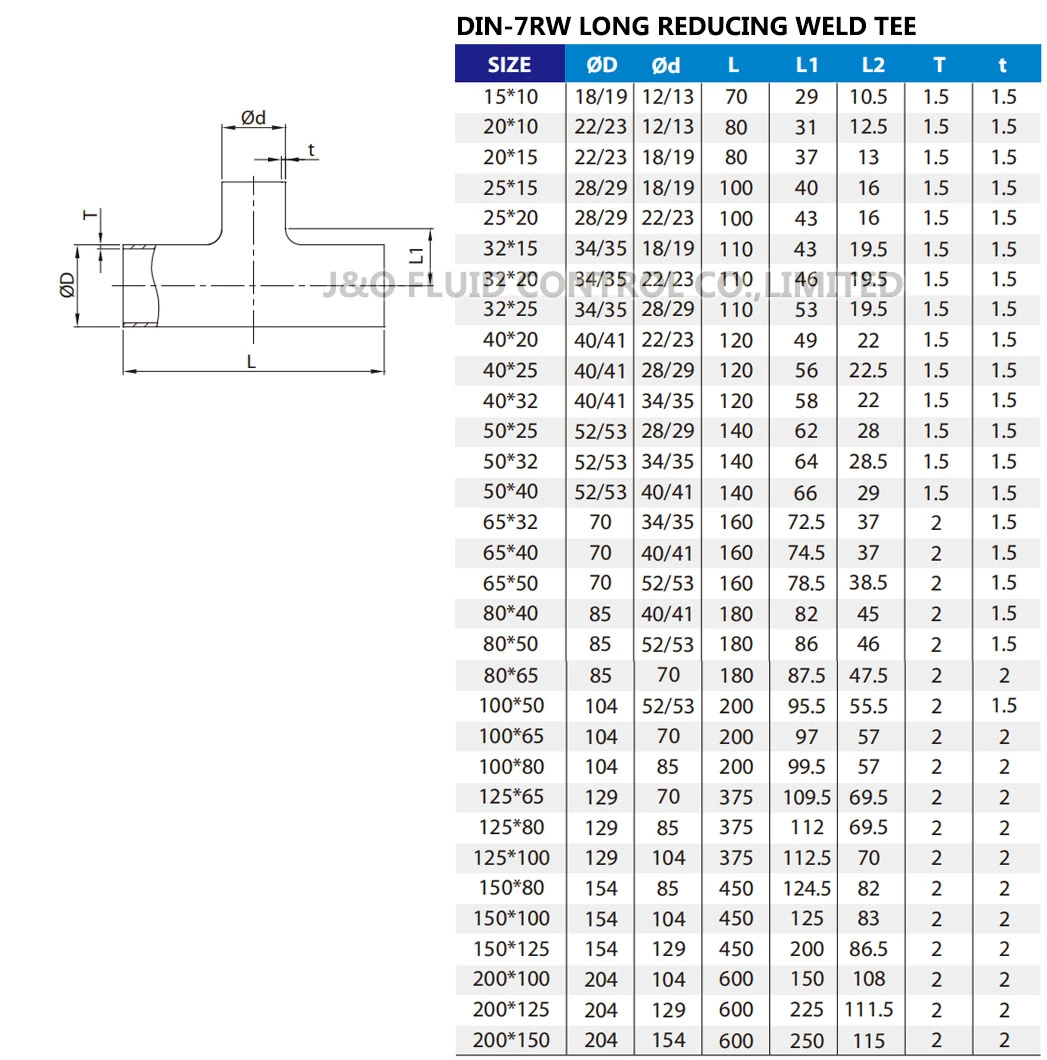

Product Parameter

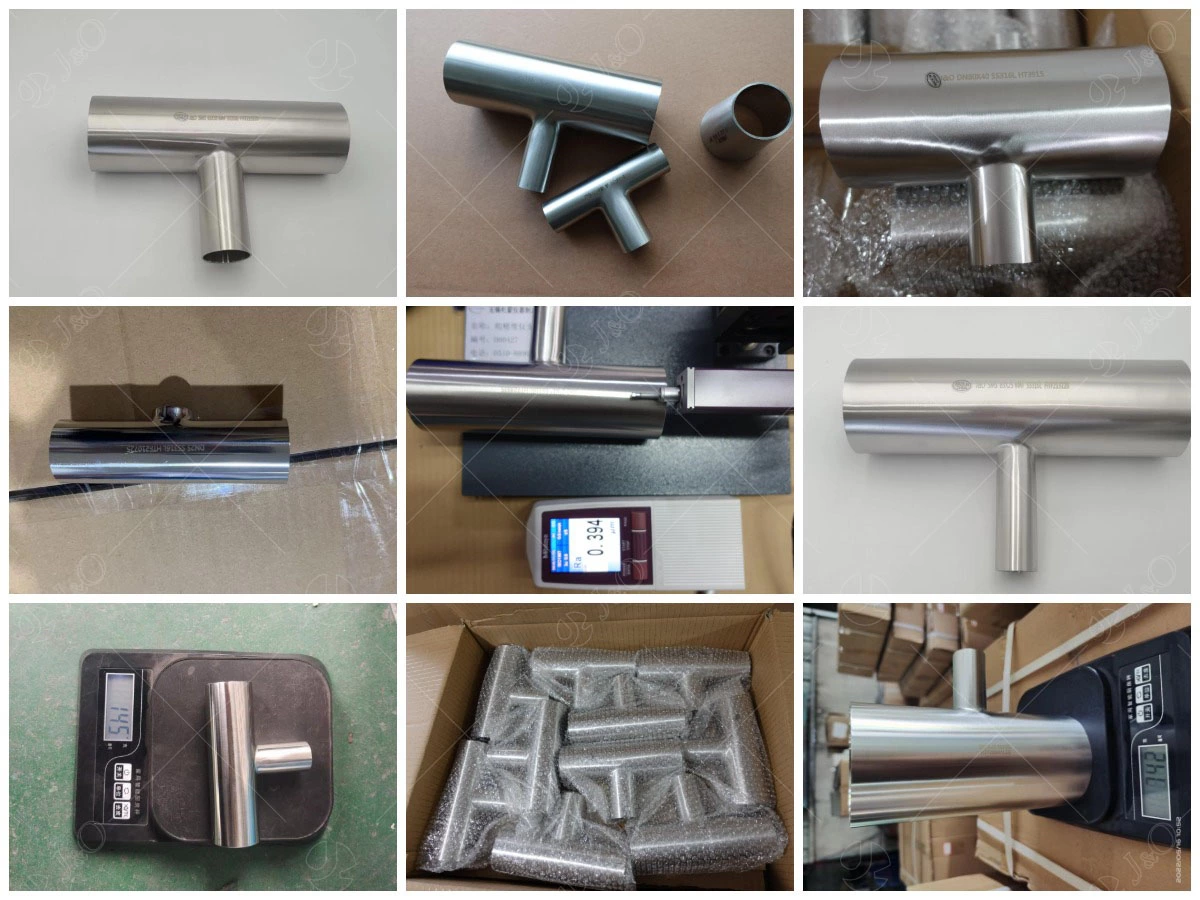

Product Pictures

If you have any enquiry about quotation or cooperation,please feel free to email us at inquiry@jo-pv.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
