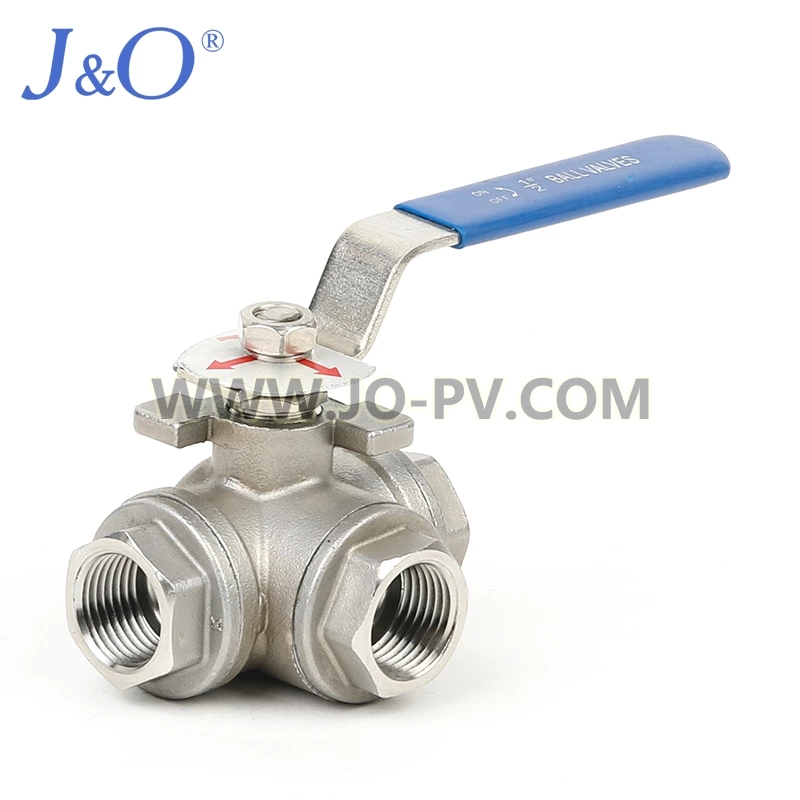

Thread 3 Way Ball Valve
3 way ball valve is a 3 port valve which enable fluids flow to alternative path of hydraulic system.
- Brand:
- J&O
- Material:
- SS304 / SS316
- Connection:
- Thread
- Working Pressure:
- 1000WOG
Stainless Steel 1000Wog Female Three Way Ball Valve
-
3 way ball valve is a 3 port valve which enable fluids flow to alternative path of hydraulic system. It allow fluid to enter or exit the valve for more than one port.
-
3 way ball valve is available in stainless steel material and able to withstand 1000 WOG working pressure. The available ports are L-Port or T-Port.
Technical Data
| Valve Body Material: | SS304/SS316 |
| Seal Material: | PTFE |
| Mex working pressure: | 1000 WOG |
| Max. Working Temperature: | 180 degree C |
| Availably size: | 1/4"-3" |
| Thread type: | NPT, BSPT, PT |
| Valve type: | T port, L port |

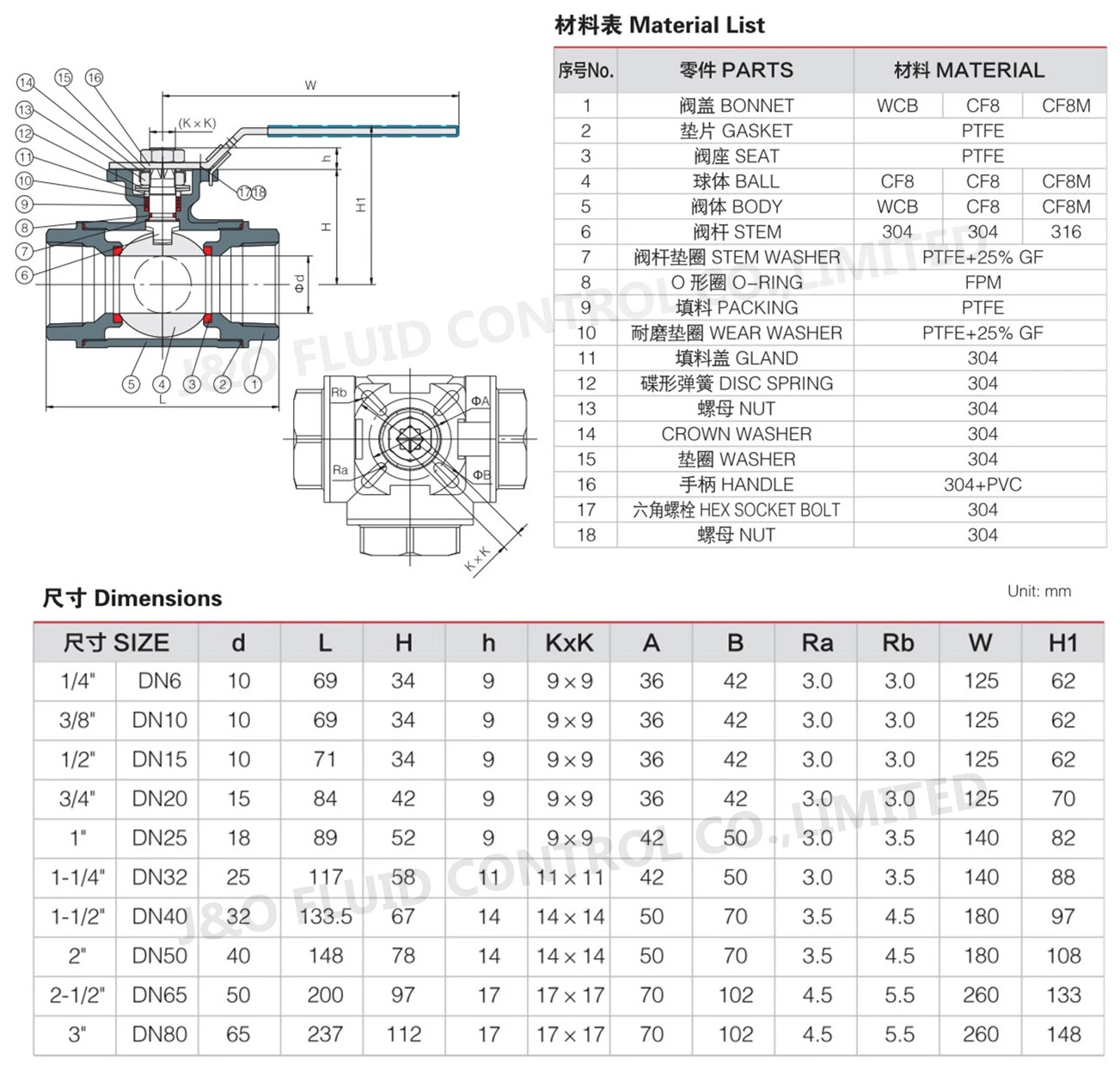

Product Parameter
