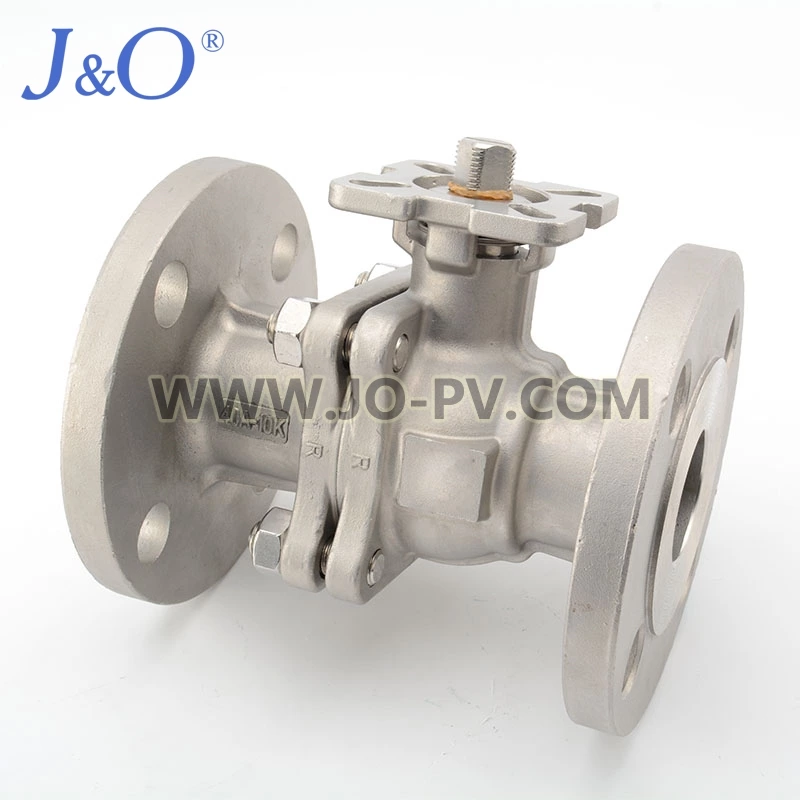

Flanged End Ball Valve

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it.

Model:
JOV-BGP-JIS-44
Brand:
J&O
Material:
SS304 / SS316
Connection:
Flange
Gasket:
PTFE
Working Pressure:
10K
Enquiry
Flanged End Ball Valve
Flanged End Ball Valve Flanged End Ball Valve Flanged End Ball Valve Flanged End Ball Valve Flanged End Ball Valve

Stainless Steel 10K JIS Flange Ball Valve

  • Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

  • Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Technical Data

Valve Body Material: SS304/SS316
Seal Material: PTFE
Mex working pressure: 10K
Max. Working Temperature: 180 degree C
Availably size: 15A-200A

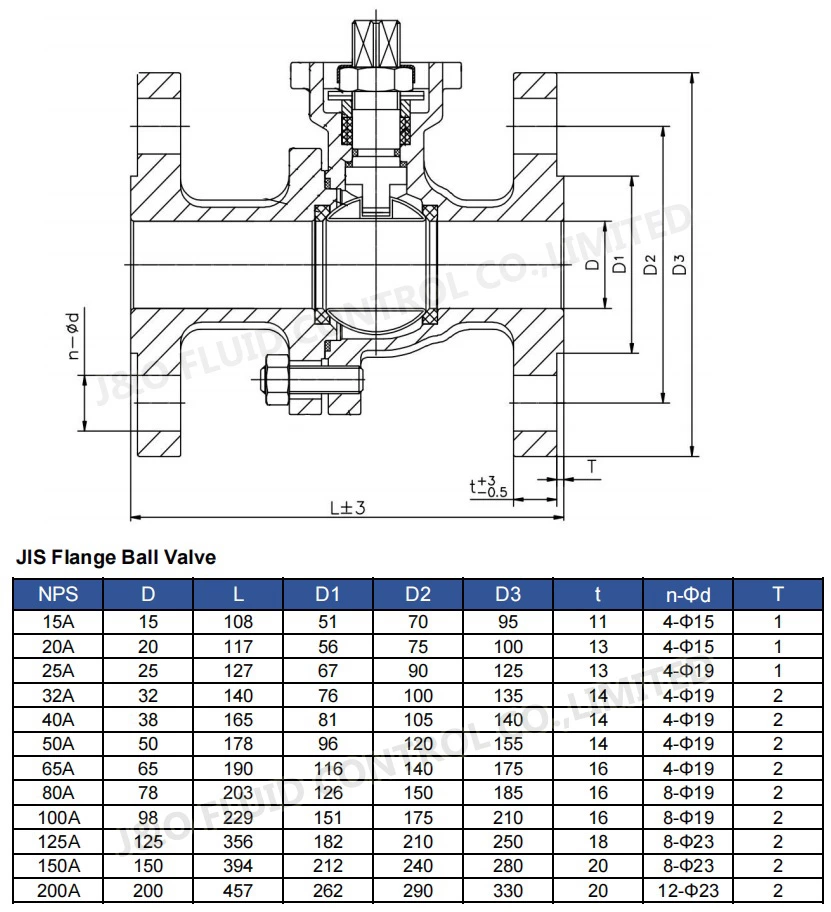

Product Parameter

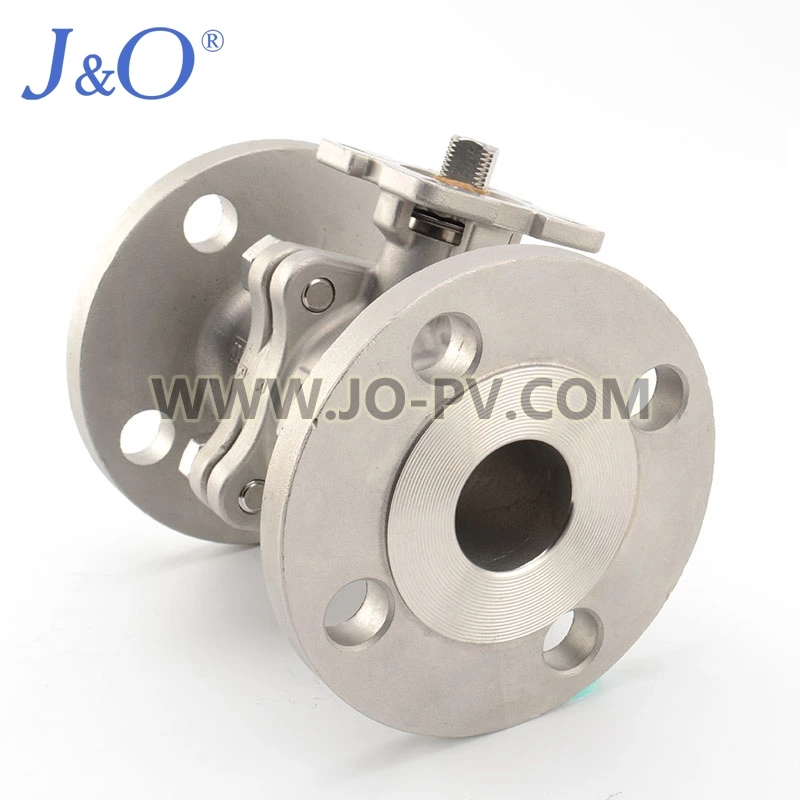

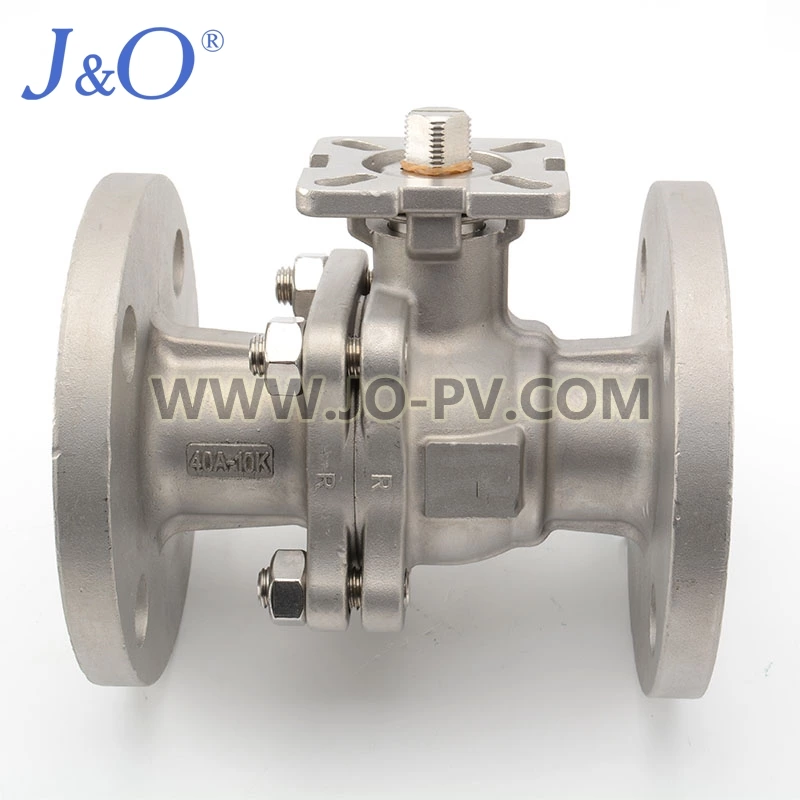

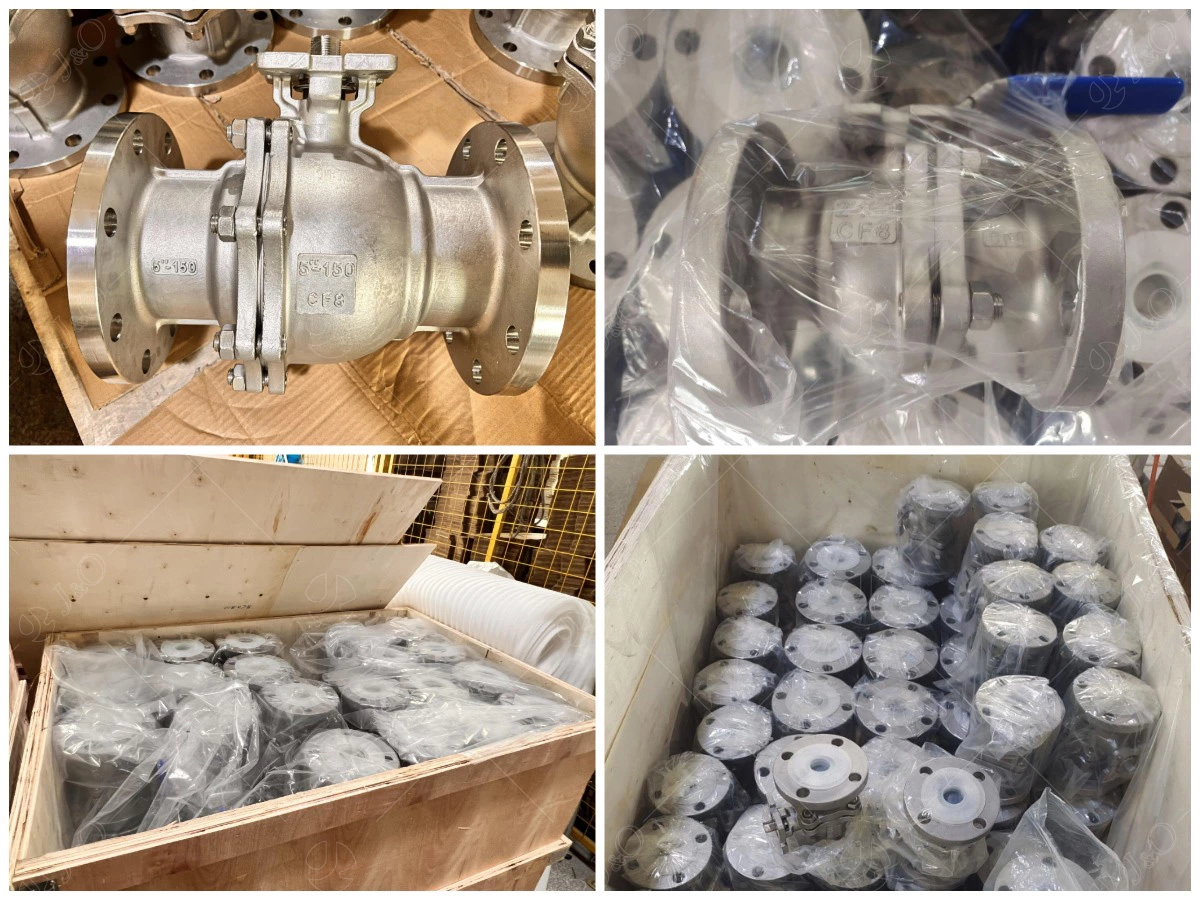

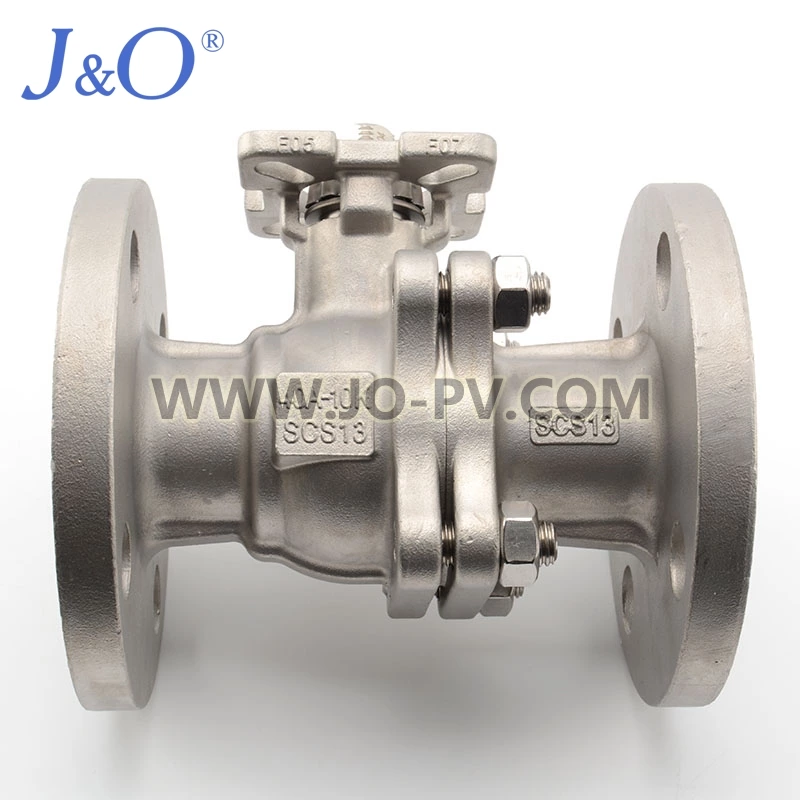

Product Pictures
