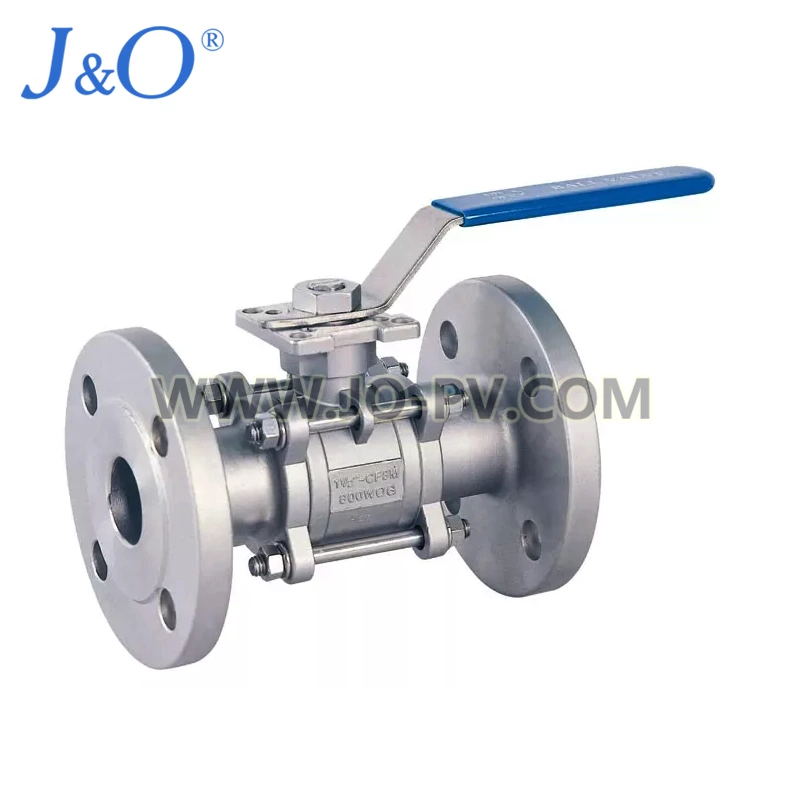

Flanged 3Pc Ball Valve

Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it.
Model:
JOV-BGM2213-44
Brand:
J&O
Material:
CF8,CF8M,WCB
Connection:
Flange
Gasket:
PTFE
Working Temperature:
-20℃ ~ 180℃
Working Pressure:
1000WOG(PN63)
Operation:
Manual
Download Catalog:
J&O INDUSTRIAL BALL VALVES.pdf
Enquiry
Flanged 3Pc Ball Valve

Industrial 3PC Flanged Ball Valve

  • Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

  • Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Technical Data

Product Name: Industrial 3-PC Flanged Ball Valve
Material: CF8,CF8M,WCB
Seal Material: PTFE
Body Working Pressure: 1000WOG(PN63)
Flange End Working Pressure: PN16/40,Class 150/300
Working Temperature: -20℃ ~ 180℃
Design: GB / T 12237, ASME B16.34, EN 1983, EN 12516-1
Flange Dimension: JB / T 79.1, ASME B16.5, DIN 2543-2545, EN 1092-1 PN16/40
Inspection & Testing: GB / T 13927, JB / T 9092, API 598, DIN 3230,EN 12266-1
Packing Details: within carton box or plywood case

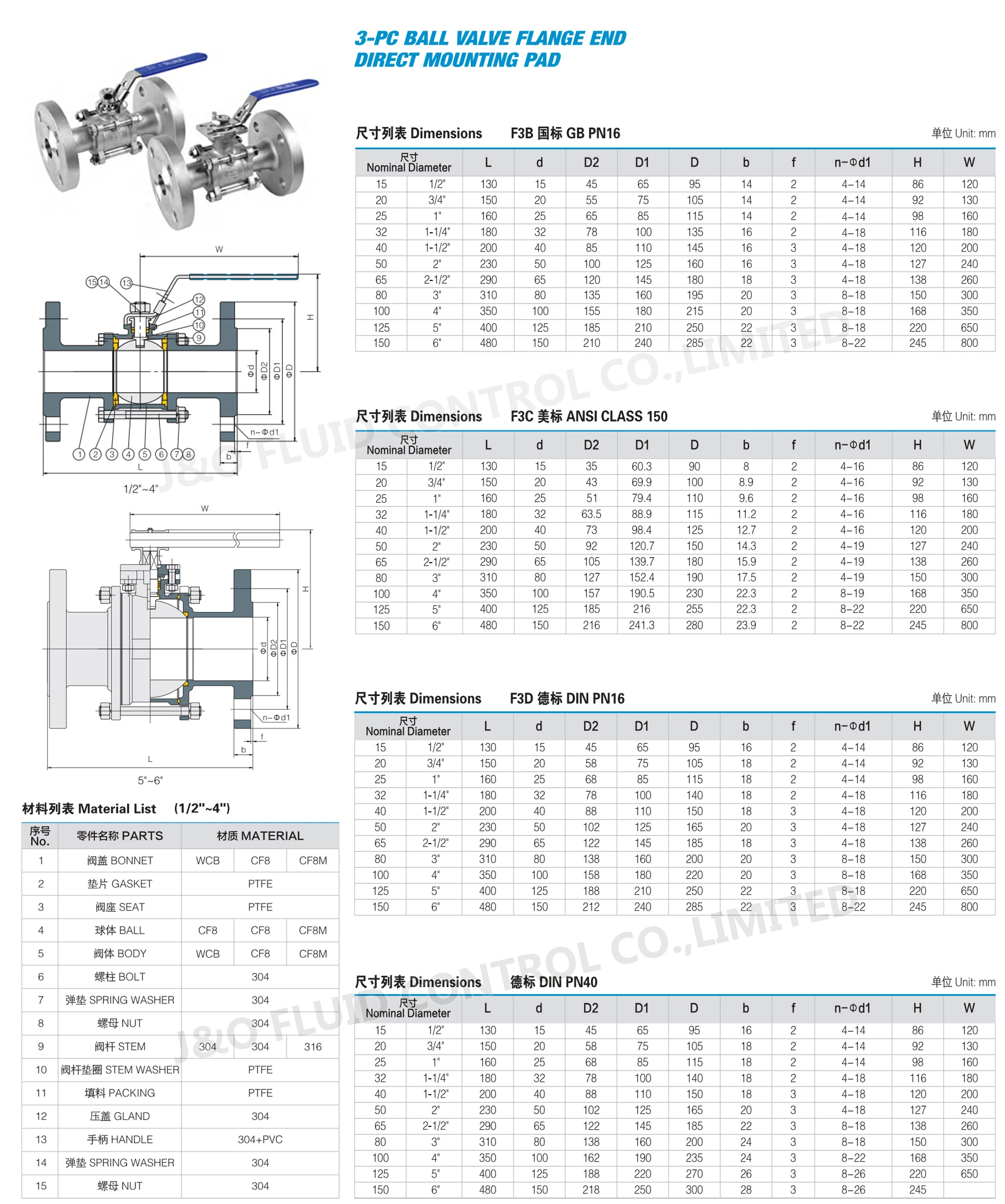

Product Parameter
