2PCS Ball Valve

2PC threaded end ball valve (2PC screwed end ball valve) is used for cutting off, distributing and changing the flowing direction of medium.

Model:
JOV-BGM2206
Brand:
J&O
Material:
SS304 or SS316
Connection:
Female Thread
Gasket:
PTFE
Working Temperature:
-20℃ ~ 180℃
Working Pressure:
1000WOG(PN63)
Operation:
Manual
Download Catalog:
J&O INDUSTRIAL BALL VALVES.pdf
Enquiry
2PCS Ball Valve

Stainless Steel 2PC Female Ball Valve

  • 2PC threaded end ball valve (2PC screwed end ball valve) is used for cutting off, distributing and changing the flowing direction of medium. It characterizes small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance.

  • Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

  • Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Technical Data

Product Name: Industrial 2PC Ball Valve Thread End
Material: SS304 or SS316
Seal Material: PTFE
Working Pressure: 1000WOG(PN63)
Working Temperature: -20℃ ~ 180℃
Design Standard: ASME B16.34
Testing Standard: API 598 / SP-110
Thread Type: ASME B1.20.1(NPT), DIN 259 / DIN 2999, BS 21, ISO 288-1, ISO 7-1
Packing Details: within carton box or plywood case

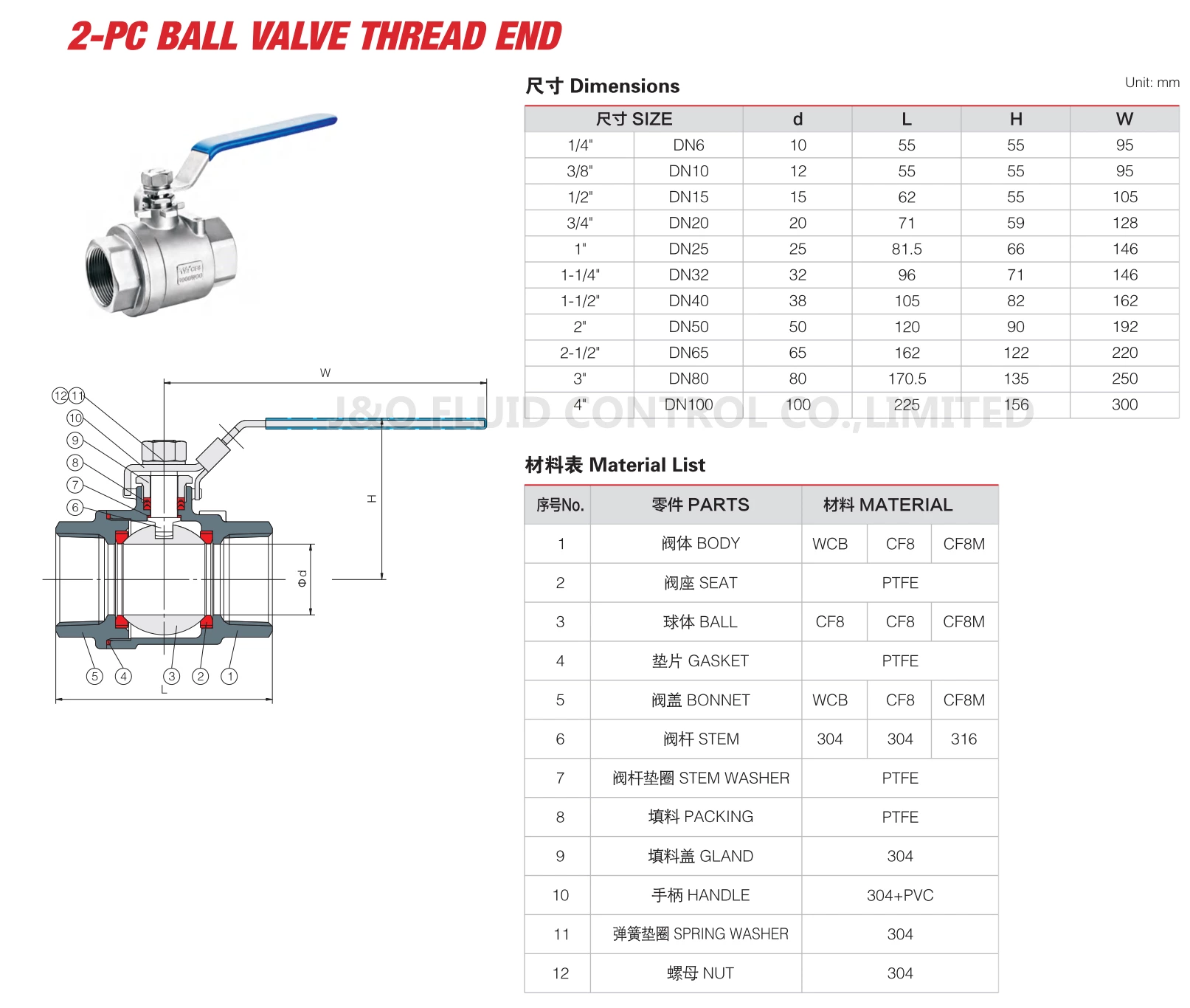

Product Parameter

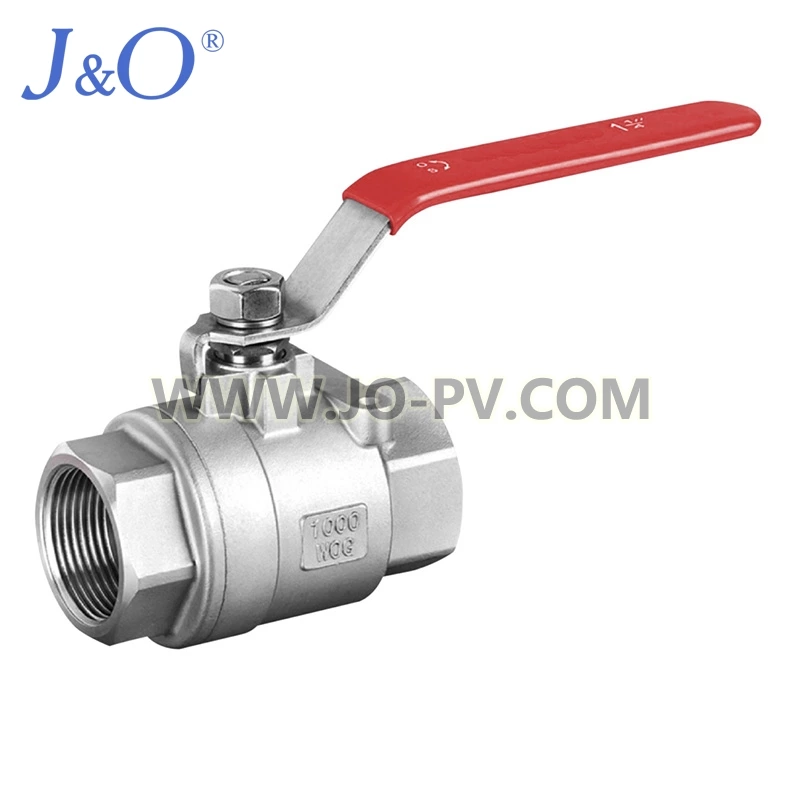

Product Pictures
