J&O Fluid Control Co., Limited.

Hygienic Aseptic DIN11864-3 Clamp Connection

DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.

Working Temperature:
Working Pressure:

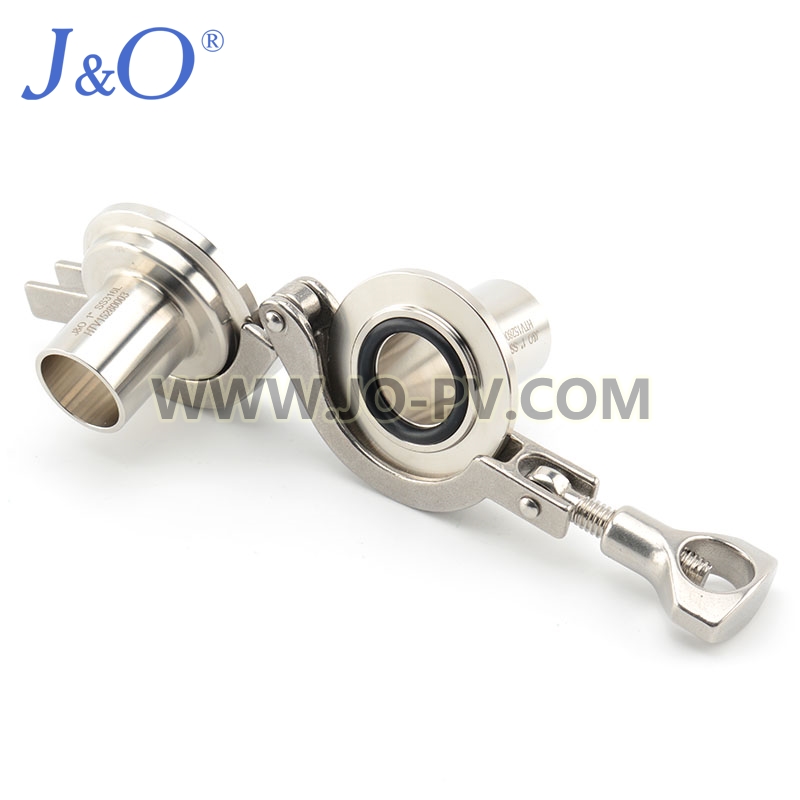

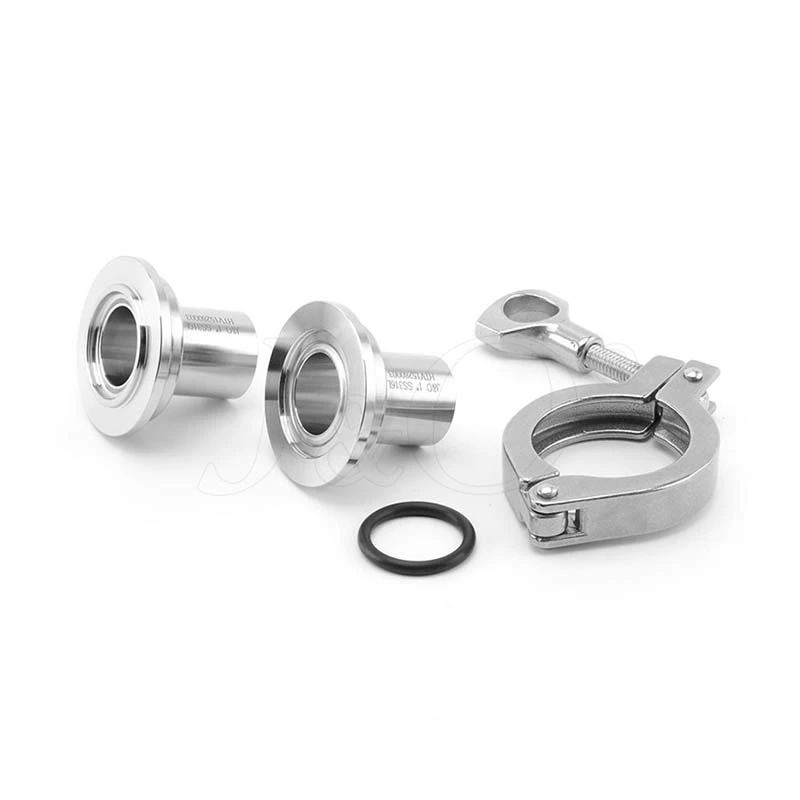

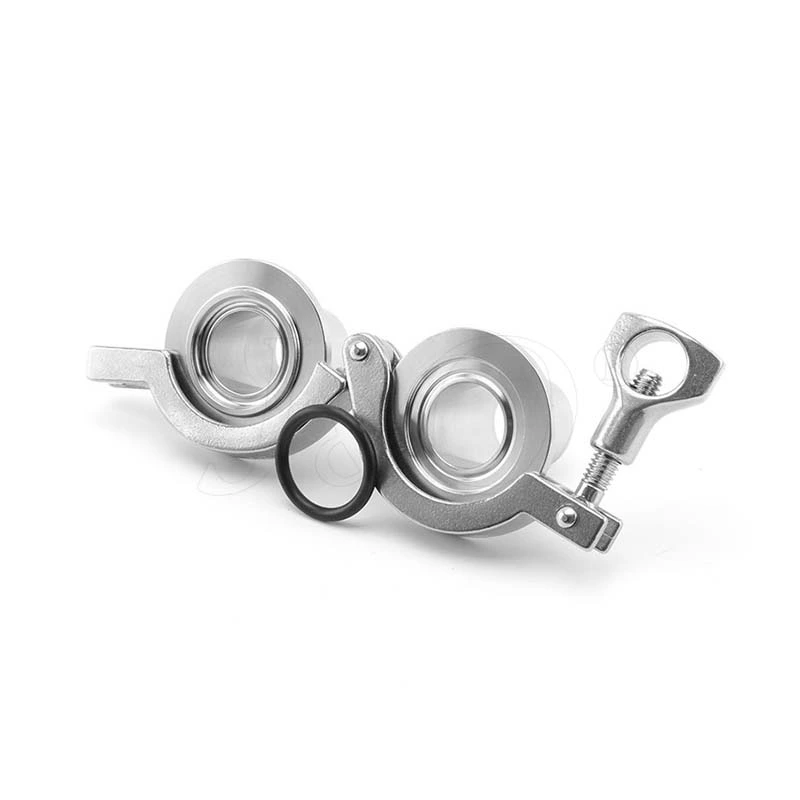

DIN 11864-3 Aseptic Clamp Connection

  • This Tri clamp connection couplings set fully follows the regulation in DIN 11864-3 standard. Material needs to be 316L to meet aseptic requirement of food, chemical and pharmaceutical industries.
  • It is available in virtually all sizes, standards and configurations and it means you can optimize conditions inside your process whilst you are maintaining security on the outside according to different requirements. In addition to the quick connect we offer sterile unions threaded connections  and sterile flanged connections for maximum security. The design incorporates use of a standard dimension o-ring which gives flexibility of material choice.

Technical Data

Material: SS316L
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: DN11-DN100
Application: For Aseptic applications in chemical and pharmaceutical industry.

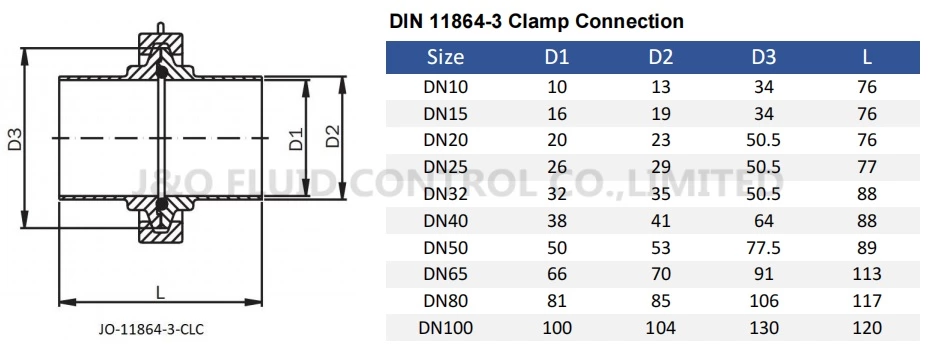

Product Parameter

Hygienic Aseptic DIN11864-3 Clamp Connection
