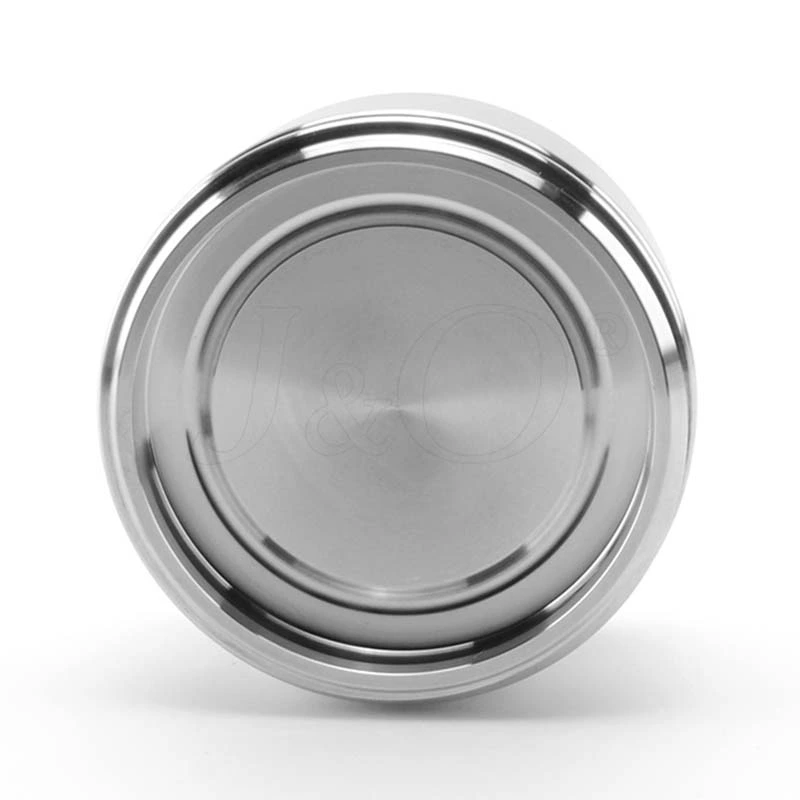

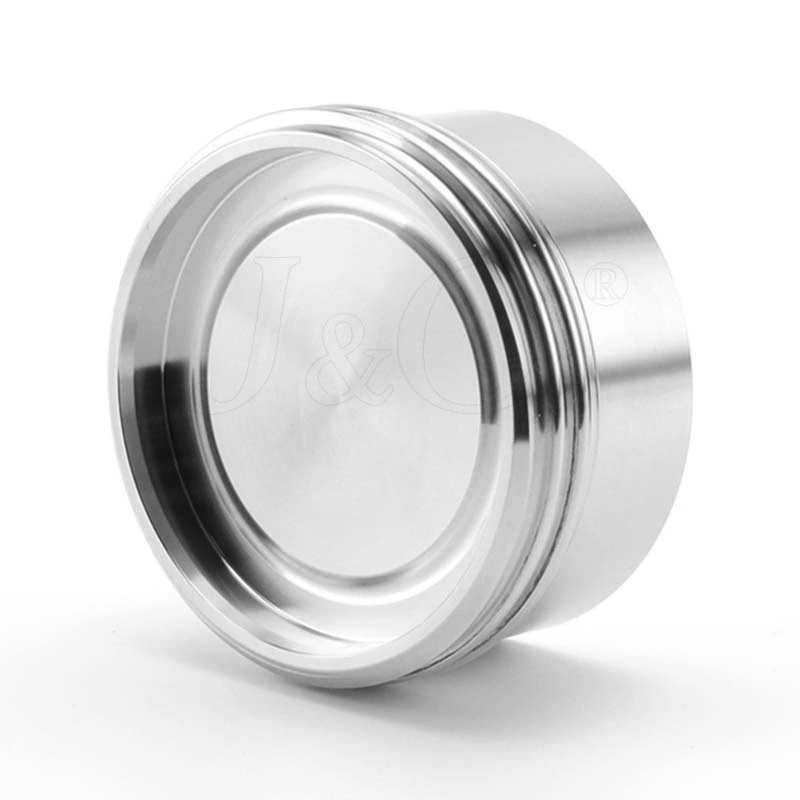

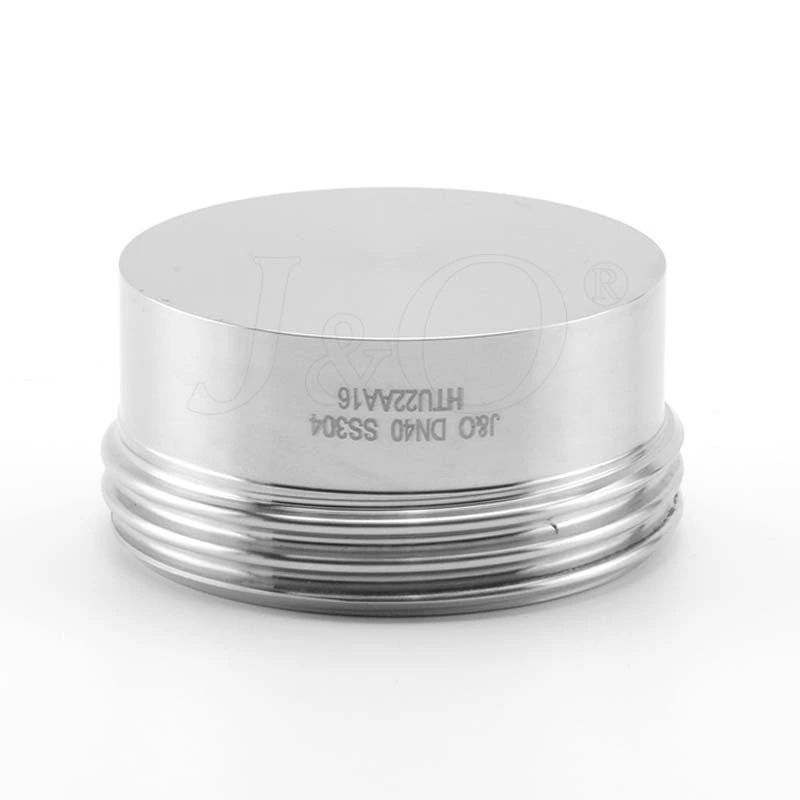

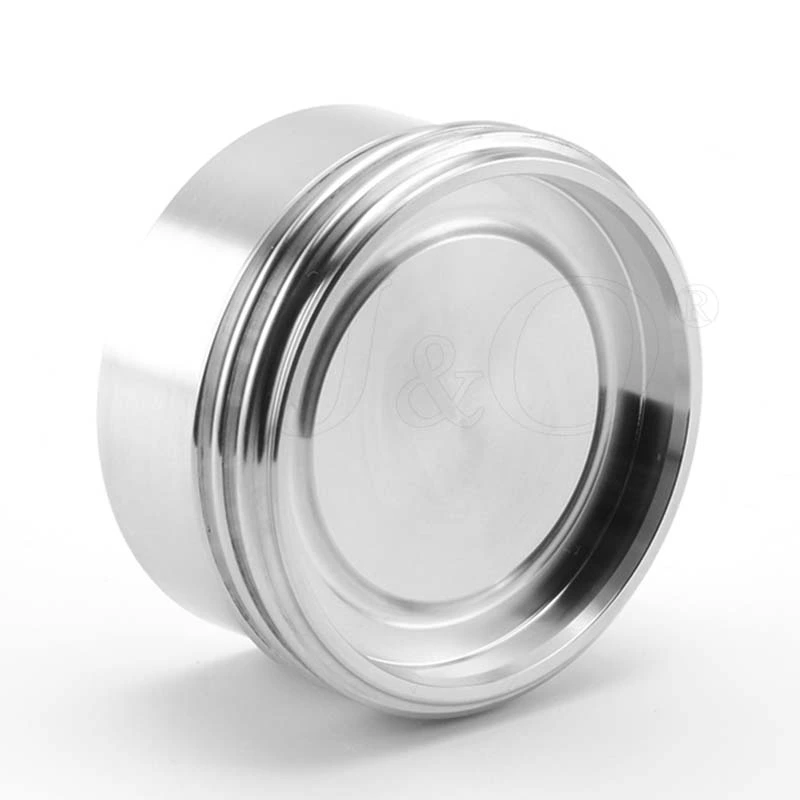

Stainless Steel Customized Aseptic DIN11864 Blank Male
- Brand:
- J&O
- Material:
- SS316L
- Connection:
- Weld
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Payment:
- T/T, L/C, Western Union
DIN 11864 Aseptic Blind Male DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries. Available with optional lengths to suit Orbital and Manual Welding, thes
DIN 11864 Aseptic Blind Male
- DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.
- Available with optional lengths to suit Orbital and Manual Welding, these unions have been designed to match tube and pipe specifications in DIN 11850; ISO 2037, ASME BPE 2002 and BS 4825 Part 1 and also ISO 1127 for schedule pipe.
- DIN11864-1 union consists of four parts: Nut, Male, Liner and Gasket.
Technical Data
| Material: | SS316L |
| Max working pressure: | 10Bar |
| Max. Working Temperature: | 180 degree C |
| Availably size: | DN11-DN100 |
| Application: | For Aseptic applications in chemical and pharmaceutical industry. |

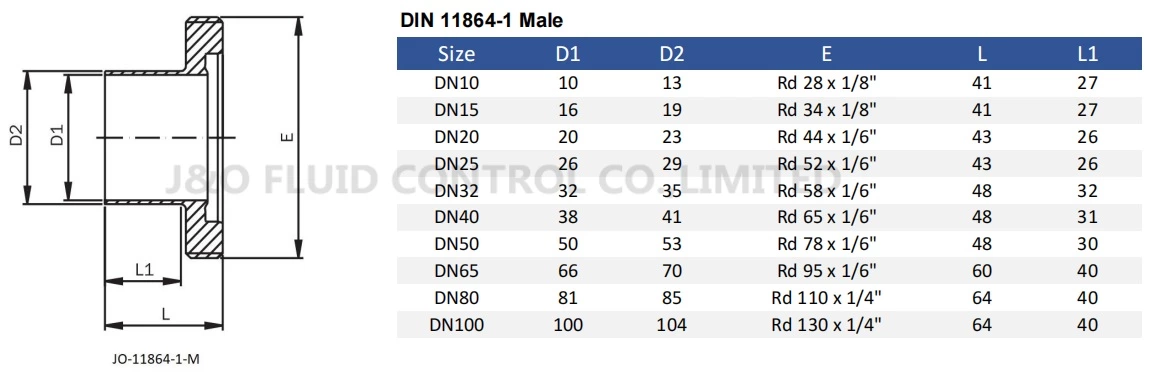

Product Parameter
