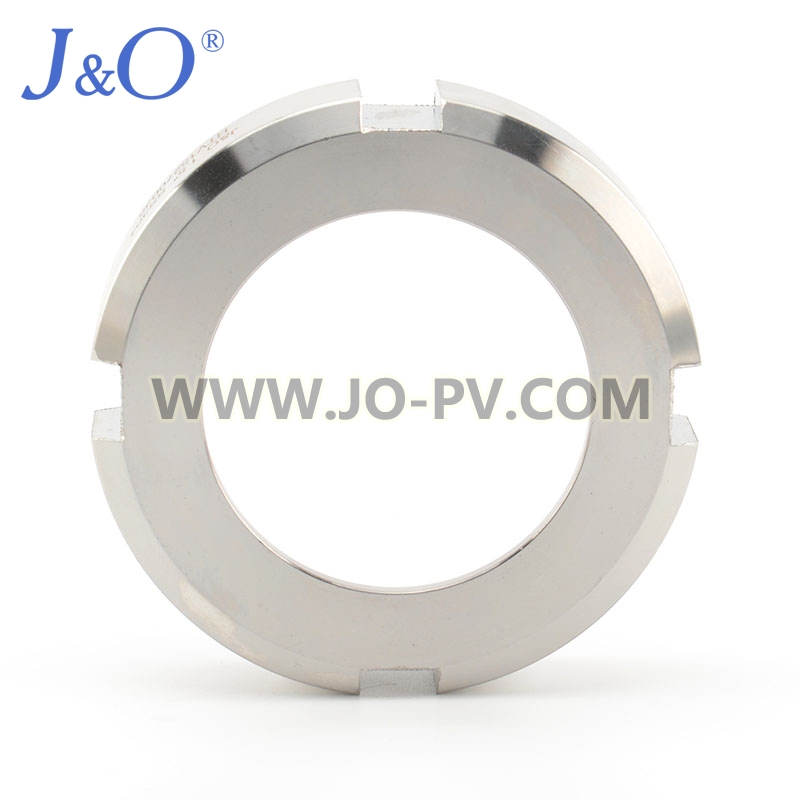

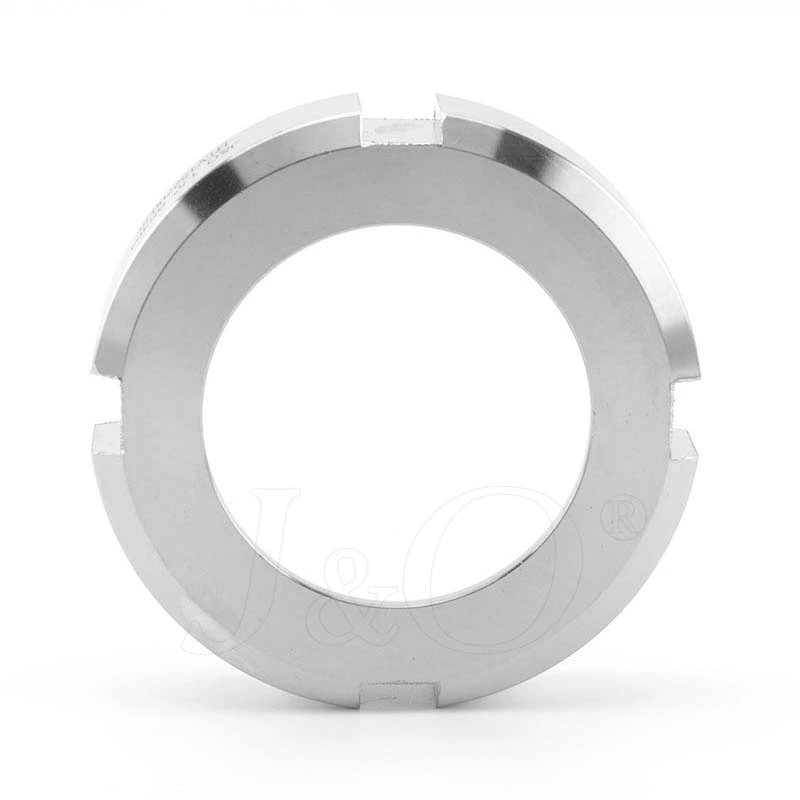

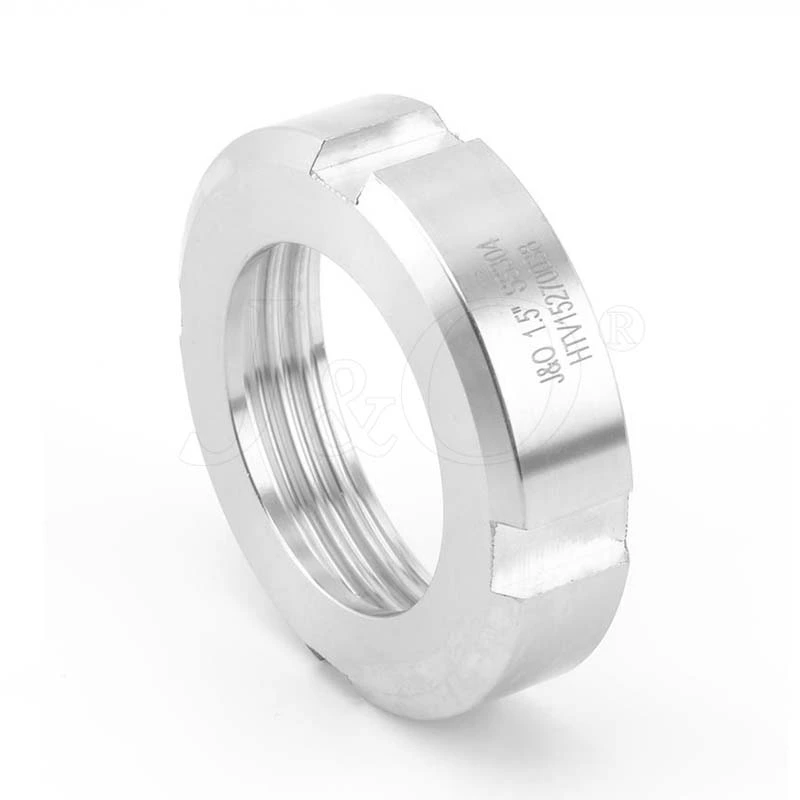

Sanitary Stainless Steel Aseptic DIN11864-1 Union Nut

DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.

Brand:
J&O
Material:
SS304
Connection:
Female
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Enquiry
Sanitary Stainless Steel Aseptic DIN11864-1 Union Nut
Sanitary Stainless Steel Aseptic DIN11864-1 Union Nut Sanitary Stainless Steel Aseptic DIN11864-1 Union Nut Sanitary Stainless Steel Aseptic DIN11864-1 Union Nut

DIN 11864-1 Union Nut

  • DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.
  • Available with optional lengths to suit Orbital and Manual Welding, these unions have been designed to match tube and pipe specifications in DIN 11850; ISO 2037, ASME BPE 2002 and BS 4825 Part 1 and also ISO 1127 for schedule pipe.
  • DIN11864-1 union consists of four parts: Nut, Male, Liner and Gasket.

Technical Data

Material: SS304
Max working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: DN11-DN100
Application: For Aseptic applications in chemical and pharmaceutical industry.

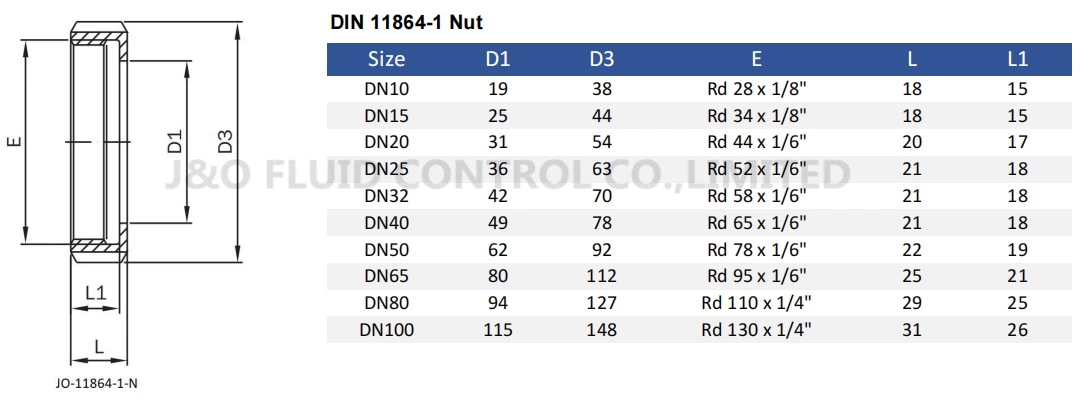

Product Parameter



Prev: Sanitary Stainless Steel Aseptic DIN11864-1 Liner
Next: Sanitary Stainless Steel Aseptic DIN11864-2 Liner Flange
