Products
Sanitary Filter Male
Straight Filter is used to prevent the solid particels from media into the follow-up pipeline facilities. The large solid partices or impurities will remaning in it after the media is put into proper filter core, as it can reach the request.
- Brand:
- J&O
- Material:
- SS304/SS316L
- Connection:
- Thread/ Male
- Gasket:
- EPDM / Silicon / NBR / FKM
- Code:
- JOF-FLHS-33

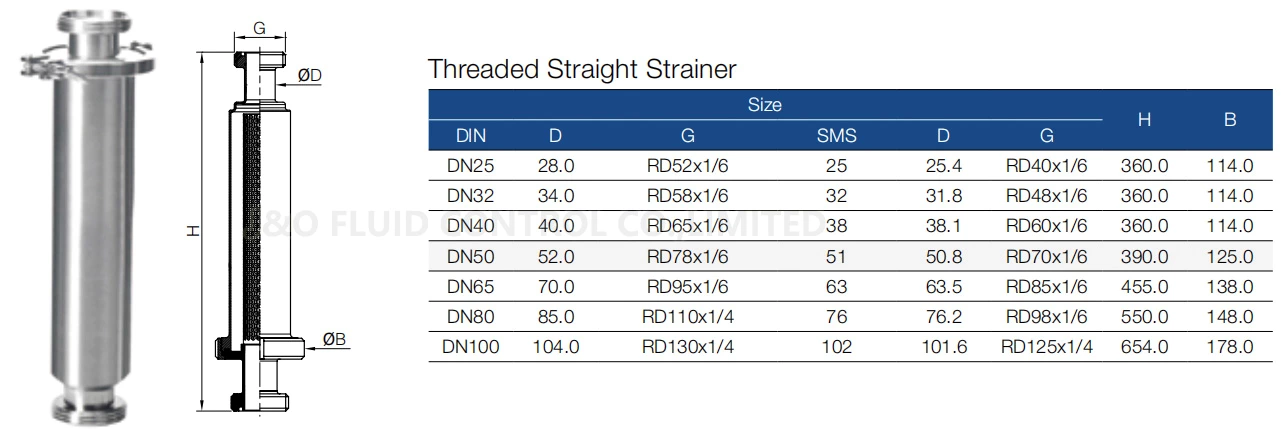

Sanitary Stainless Steel Thread Straight Strainer
-
Our Sanitary Stainless Steel Strainer including Sanitary Straight Strainer, Sanitary Y type Filter, Hygienic Butt Weld Filter, Sanitary Clamped Strainer, Sanitary Thread Male Filter.
-
Filters are widely usde in the auxiliary service for food processing, cosmetic, chenicals and paharmacy industries. Due to its hygienic design, it is maunly used to filter the particulates that destroy pumps and some other equipments.
-

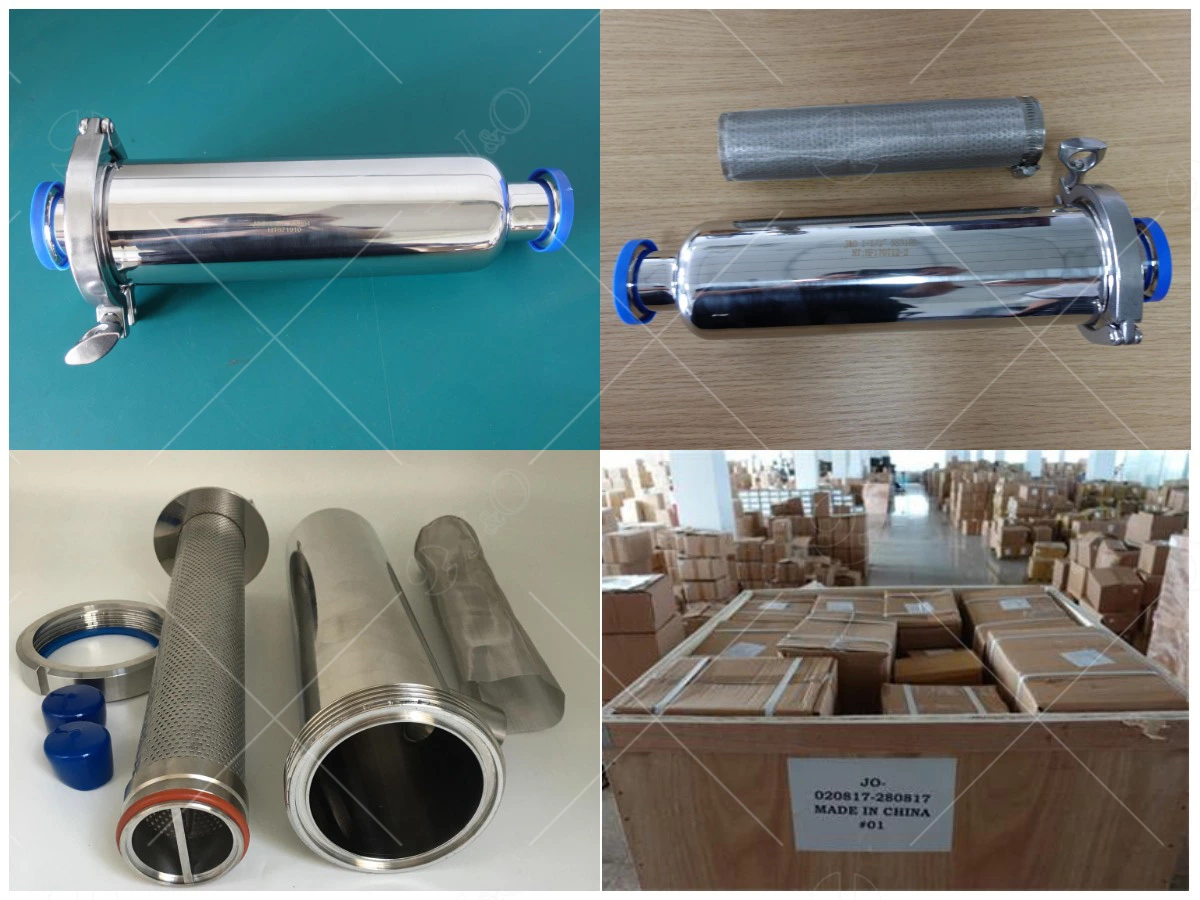

The filter consists of inlet and outlet housing,inner screen mesh to filter the particlates and impurities which can`t pass the mesh.
Technical Data
Type: | 1"-4" or DN25-DN100 |
Material: | SS304 SS316L |
Head Code: | Round |
Technics: | Forged |
Mesh: | 30 - 165 |
Useful Surface: | 15% - 52.6% |
Filters: | Metal Mesh, Perforated Plate And Wedge Wire |
Packaging: | carton box or plywood case, |
