J&O Fluid

Products

Sanitary Stainless Steel Butt Weld Y Type Filter

Brand:
J&O
Material:
SS304/SS316L
Connection:
Clamp
Gasket:
EPDM / Silicon / NBR / FKM
Payment:
T/T, L/C, Western Union

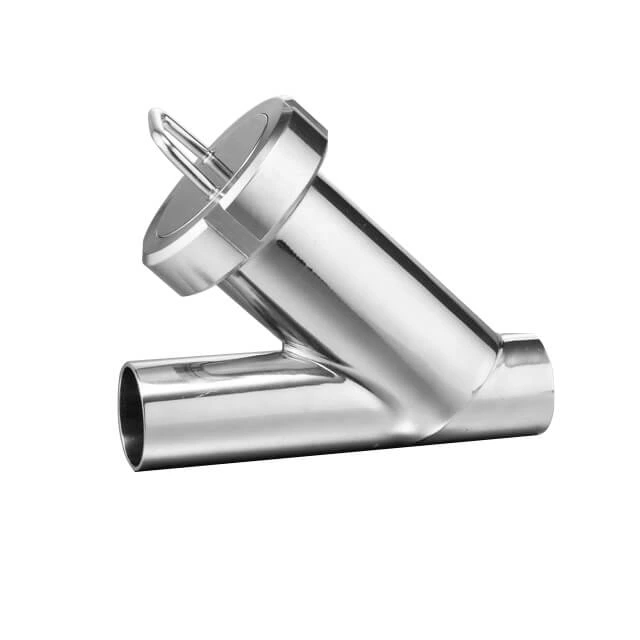

Sanitary Stainless Steel Butt Weld Y Type Filter

  • J&O Sanitary Stainless Steel Strainer including Sanitary Straight Strainer, Sanitary Y type Filter, Hygienic Welding Filter, Sanitary Tri Clover Strainer, Sanitary Thread Male Filter.

  • Filters are widely usde in the auxiliary service for food processing, cosmetic, chenicals and paharmacy industries. Due to its hygienic design, it is maunly used to filter the particulates that destroy pumps and some other equipments.

  • The filter consists of inlet and outlet housing,inner screen mesh to filter the particlates and impurities which can't pass the mesh.

Technical Data

Type: 1"-4" or DN25-DN100
Material: SS304 SS316L
Head Code: Round
Technics: Forged
Mesh: 30 - 165
Useful Surface: 15% - 52.6%
Filters: Metal Mesh, Perforated Plate And Wedge Wire
Packaging: carton box or plywood case,

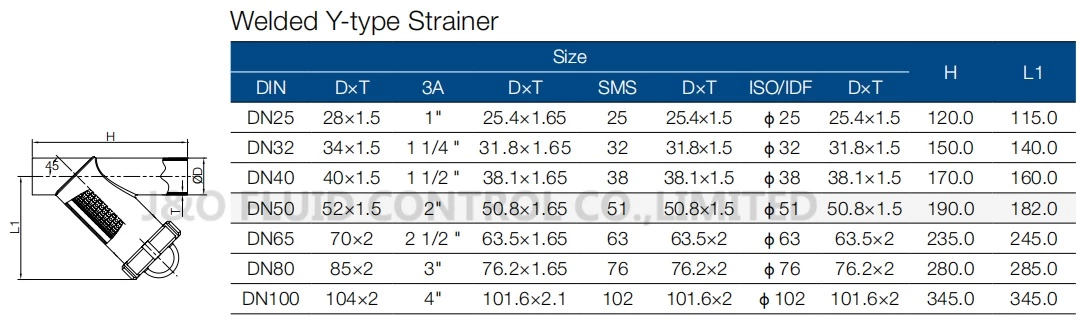

Product Parameter

Sanitary Stainless Steel Butt Weld Y Type Filter

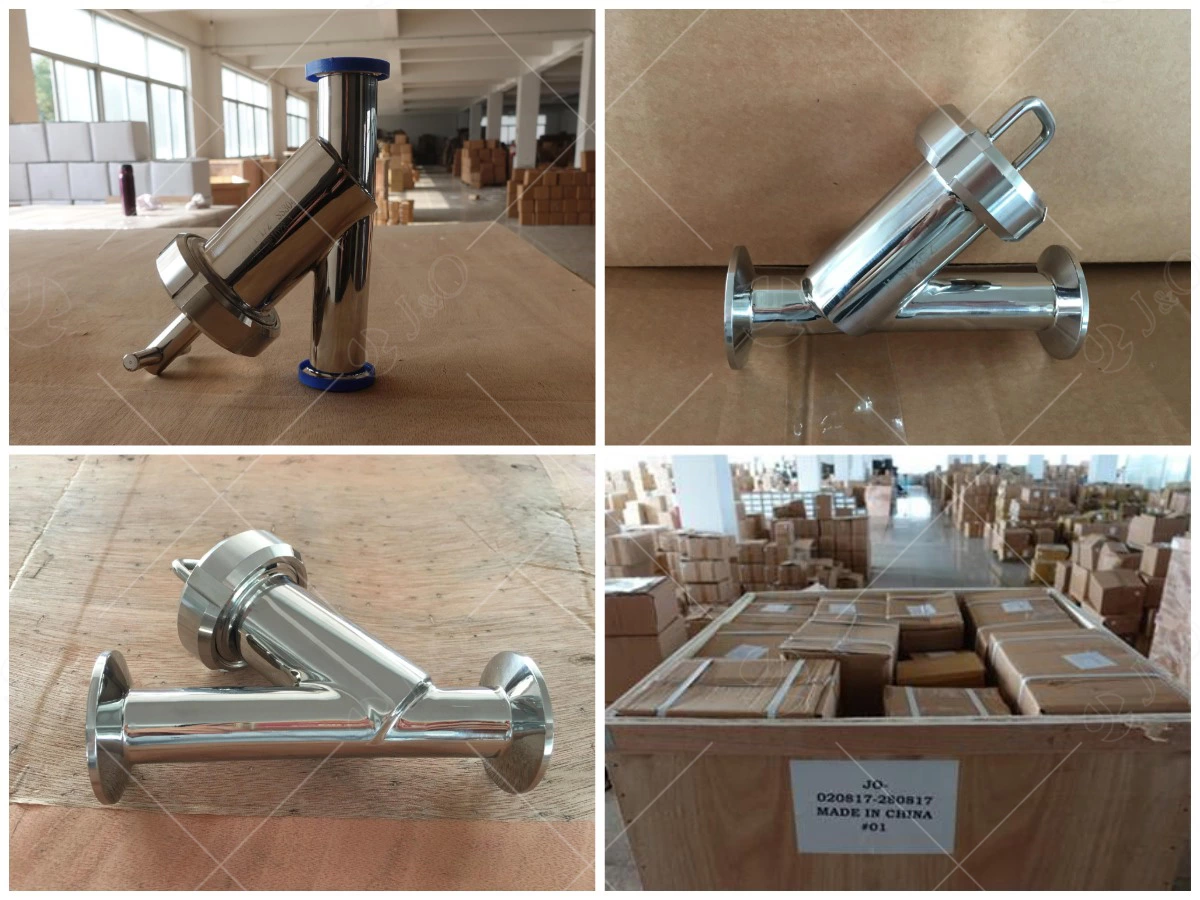

Product Pictures

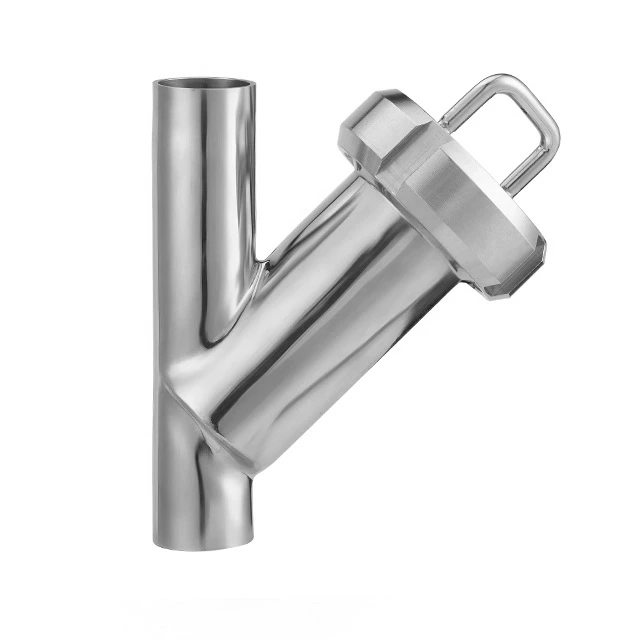

Sanitary Stainless Steel Butt Weld Y Type Filter
