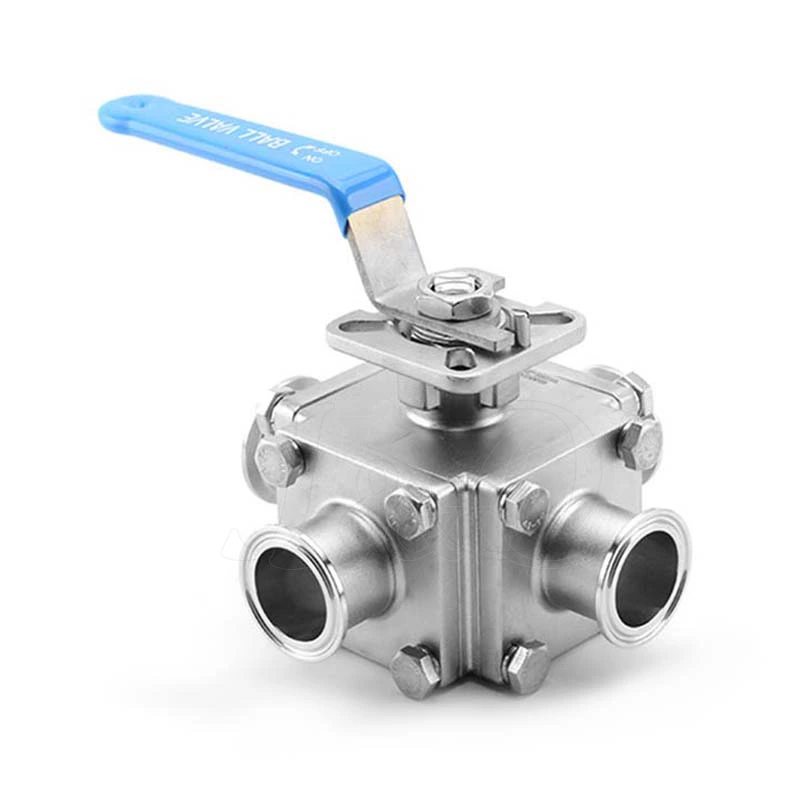

Four-way Sanitary Clamp Ball Valve

Applied in food, wine, brewery, refining, cosmetics, pharmaceutical and chemicals industries, required non-retention and switch the direction of two media.

Model:
JOV-BHM2012-22
Brand:
J&O
Material:
SS304 / SS316L
Connection:
Clamped
Gasket:
PTFE
Working Temperature:
-20°~120°
Working Pressure:
0-10Bar
Operation:
Manual
Enquiry
Four-way Sanitary Clamp Ball Valve
Four-way Sanitary Clamp Ball Valve Four-way Sanitary Clamp Ball Valve Four-way Sanitary Clamp Ball Valve Four-way Sanitary Clamp Ball Valve Four-way Sanitary Clamp Ball Valve Four-way Sanitary Clamp Ball Valve

Sanitary Stainless Steel Tri Clamp 4 Way Ball Valve

  • Sanitary encapsulated 4-ways ball valve also can be called sanitary cavity filled four way ball valve. It can be applied to the pipeline system in the industries of food, wine, brewery, oil refining, cosmetics, pharmaceuticals and chemicals that requires non-retention and simultaneous switch of flow directions of two media.
  • LL type four way ball valve only needs to rotate the ball 90 degree with the handle or actuator, then the flow direction of two media will switch at the same time to achieve the multi-purpose effect. It is convenient and rapid.

Technical Data

Valve Body Material: SS316L
Seal Material: PTFE
Mex working pressure: 10Bar
Max. Working Temperature: 180 degree C
Availably size: 1"-4", DN25-DN100
Availably connection: Clamp, weld, thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Manual/Pneumatic/Electric
Certificate: ISO, PED/97/23/EC, FDA.177.2600

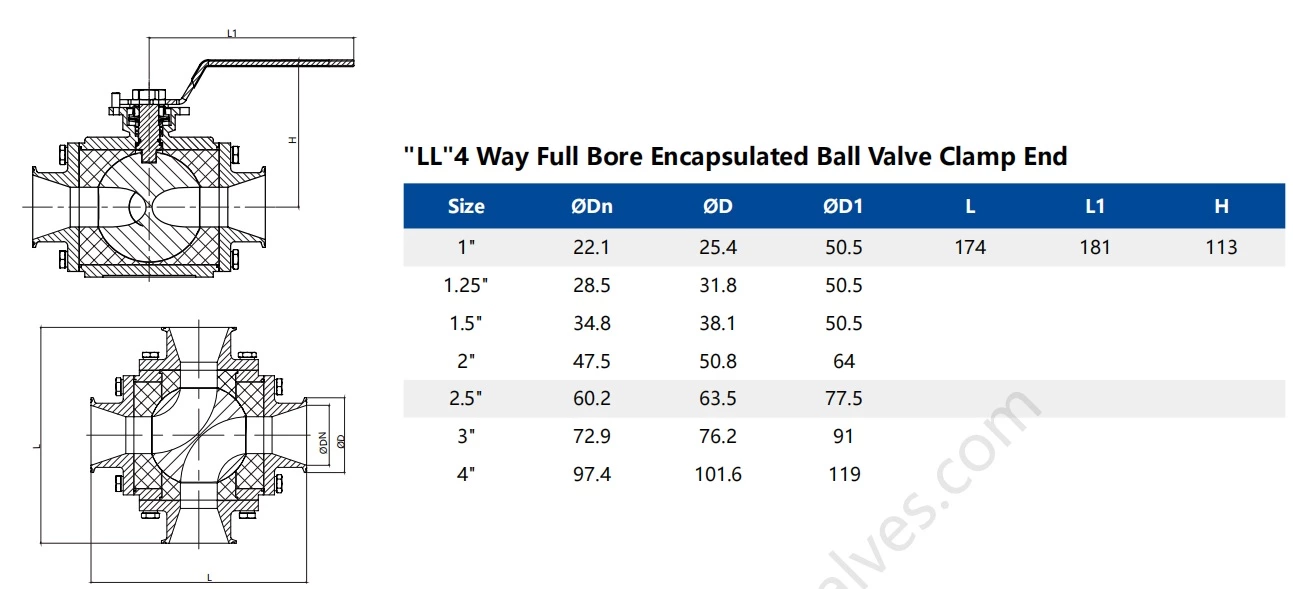

Product Parameter
